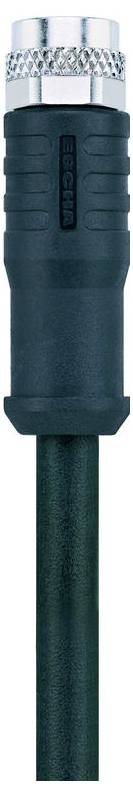

Name: Escha 8046206 Sensor/actuator cable M8 10.0 m No. of pins (RJ): 4 1 pc(s)
Brand: Escha
SKU: 3553643
Availability: BackOrder

Technical specifications

Rated voltage: 60V
Insulation resistance ≥108 Ω
Material seal (bush): FPM/FKM
Material grip body: Plastic, TPU, BK
Material contacts: Metal, CuSn, gold plated
Material contact carrier: Plastic, TPU, BK
Mechanical lifespan >100 mating cycles
IEC 61076-2-104 standard
Pin assignment:1 BN 2 WH, 3 BU, 4 BK
Number of pins: 4
Protection type (mounted): IP65, IP67, IP68
Plug connector: Socket, straight, M8
Current load capacity per pin (at 40°C): 4.0 A
Ambient temperature: -30°C...+90°C
Pollution level 3/2
WIRE COLORS: BN, WH, BU, BK
Wire cross-section 4 x 0.25 mm²
Outer diameter of sheath 4.70 mm
Special properties: Flame-resistant, halogen-free, hydrolysis-resistant, LABS-free, oil-resistant, Ozone-resistant, recyclable, RoHS-compliant, acid and alkali-resistant, drag-chain compatible, Sweat-resistant, seawater resistant, silicone-free, torsion-resistant, UV-resistant
Bending radius (moving) 12 x Ø-cable
Bending radius (fixed) 5 x Ø-cable
Halogen-free: Yes
LINE QUALITY S370, PUR, UL
Wire composition 32 x 0.10 mm
Sheath color: BK, similar to RAL9005
Material wire insulation: PP
Material cable jacket: PUR
Nominal voltage cable ≤300 V
Drag chain insert: 5 MIO. Cycles
Temperature range (drag chain): -25°C…+60°C.
Temperature range (moving): -30°C...+90°C.
Temperature range (fixed): -40°C...+90°C.
Torsion: +/-360°/m, ≥ 2 MIO. Cycles
Constant resistance 5 mΩ
End set: Open cable ends
Material over-throw: Metal, CuZn, nickel-plated
Shielding: Yes

Type: AL-SKPS4-10/S370

Product type: Sensor/actuator cable

Connection side A: M8 socket, straight

Connection side B: Cable, open end

No. of pins: 4

Cable length: 10.0 m

Jacket material: PUR

Nominal voltage: 60 V

Nominal current: 4.0 A

Nominal current - rounded value: 4 A

Outside Ø: 4.70 mm

Cross-section (sensor/actuator wiring): 0.25 mm²

Connection: Socket

Thread type connection side: M8

Thread type (wiring and installation): M8

Contact material: CuSn, gold plated

Contact surface: Gold plated

Features: Shielded
Halogen-free
Silicone-free
Oil-resistant
Ozone-resistant
Recyclable
Spark-proof
Suitable for drag chains
Hydrolysis-resistant
Acid-resistant/non-caustic
Corrosion-resistant
UV-resistant
Twistable
flame-retardant
Show more

Min. temperature: -40 °C

Max. temperature: 90 °C

Manufacturer part #: 8046206

Content: 1 pc(s)

Cable Ø: 4.70 mm

Documents & Downloads

Datasheet

Datasheet 3553643 Escha 8046206 Sensor/actuator cable M8 10.0 m No. of pins (RJ): 4 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3553643 Escha 8046206 Sensor/actuator cable M8 10.0 m No. of pins (RJ): 4 1 pc(s)

Description

Flexible, silicone and halogen-free control cable with high mechanical strength. The cable is resistant to chemicals, hydrolysis and microbes. The drag chain insert is at a bending radius of min. 10xd is possible. Due to its welding spark resistance, the wire is very well suitable for flexible use in the field of robot technology, machine tools and chip-repelling production. The lines meet the requirements of UL and CSA (UL10493/20549; cULus). Very good EMC properties in shielded version.

This text is machine translated.
