Escha 8046296 Cable connection M12 10.0 m No. of pins (RJ): 5 1 pc(s)
EAN:
Part number:
Item no:
Product type
Cable connection
Connection side A

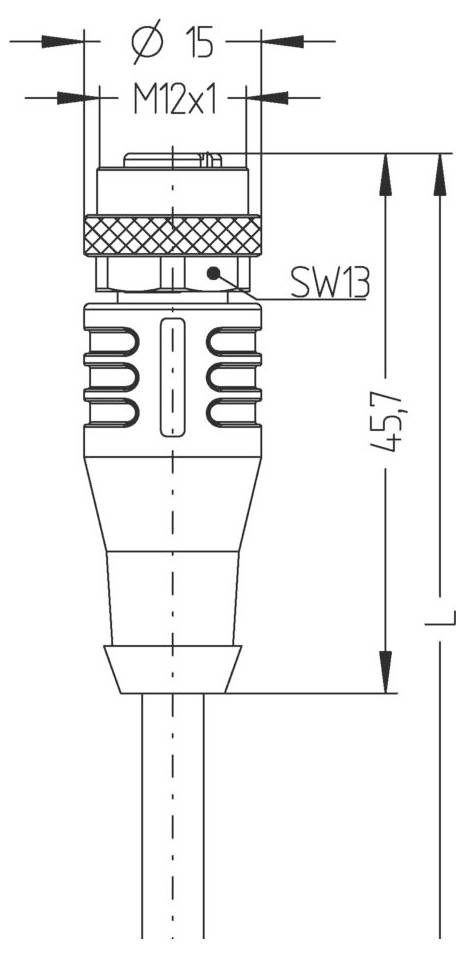

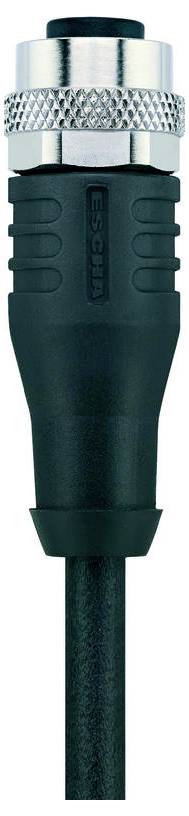

M12 socket, straight
Connection side B

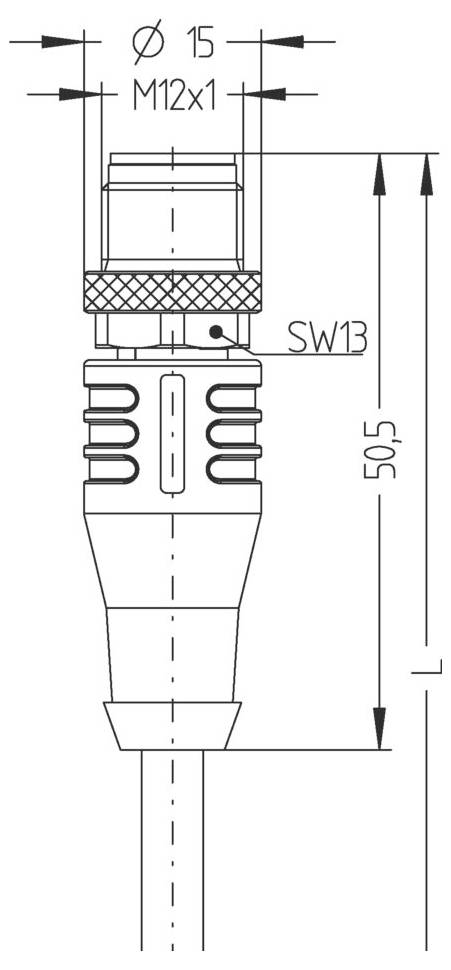

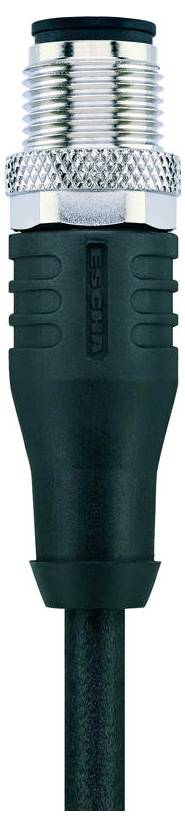

M12 plug, straight
No. of pins
5
Cable length
10.0 m
Datasheet (PDF)
Number
Total (€ 57.13 / piece)
€ 57.13
plus VAT.
Technical specifications
- Material seal (bush): FPM/FKM
- WIRE COLORS: BN, WH, BU, BK, GY
- Wire cross-section 5 x 0.34 mm²
- Outer diameter of sheath 5.60 mm
- Special properties: Flame-resistant, halogen-free, hydrolysis-resistant, LABS-free, oil-resistant, Ozone-resistant, recyclable, RoHS-compliant, acid and alkali-resistant, drag-chain compatible, Sweat-resistant, seawater resistant, silicone-free, torsion-resistant, UV-resistant
- Bending radius (moving) 12 x Ø-cable
- Bending radius (fixed) 5 x Ø-cable
- Halogen-free: Yes
- LINE QUALITY S370, PUR, UL
- Wire composition 42 x 0.10 mm
- Sheath color: BK, similar to RAL9005
- Material wire insulation: PP
- Material cable jacket: PUR
- Nominal voltage cable ≤300 V
- Drag chain insert: ≥3 MIO. Cycles
- Temperature range (drag chain): -25°C…+60°C.
- Temperature range (moving): -30°C...+90°C.
- Temperature range (fixed): -40°C...+90°C.
- Torsion: +/-180°/m, ≥ 0.5 MIO. Cycles
- Shielding: Yes
- Rated voltage (side A | side B): 60V
- Forward resistance (side A | side B): 5 mΩ
- Insulation resistance (side A | side B): ≥108 Ω
- Material grip body (side A | side B): Plastic, TPU, BK
- Material contacts (side A | side B): Metal, CuSn, gold plated
- Material contact carrier (page A | page B): Plastic, TPU, BK
- Material over-throw (side A | side B): Metal, CuZn, nickel-plated
- Mechanical life (page A | page B): >100 mating cycles
- Standards (page A | page B): IEC 61076-2-101
- Pin assignment (page A | page B): 1 BN, 2 WH, 3 BU, 4 BK, 5 GY
- Number of pins (page A | page B): 5
- Protection type (mounted) (side A | side B): IP65, IP67, IP68
- Connector (side A | side B): Female, straight, M12;male, straight, M12
- Current rating per pin (at 40°C) (side A | side B): 4.0 A.
- Ambient temperature (page A | page B): -30°C...+90°C.
- Pollution level (page A | page B): 3
- Shielding (side A | side B): With shielding
- Coding (page A | page B): A.
- Type
AL-WAKS4.5-10-AL-WASS4.5/S370
- Product type
Cable connection
- Connection side A
M12 socket, straight
- Connection side B
M12 plug, straight
- No. of pins
5
- Cable length
10.0 m
- Jacket material
PUR
- Nominal voltage
60 V
- Nominal current
4.0 A
- Nominal current - rounded value
4 A
- Connector cross-section (max.)
0.34 mm²
- Outside Ø
5.60 mm
- Cross-section (sensor/actuator wiring)
0.34 mm²
- Connection
Socket
- Thread type connection side
M12
- Thread type (wiring and installation)
M12
- Coding
A
- Contact material
CuSn, gold plated
- Features
flame-retardant
- Min. temperature
-40 °C
- Max. temperature
+90 °C
- Manufacturer part #
8046296
- Content
1 pc(s)
- Cable Ø
5.60 mm
- Cable Ø (max.)
5.60 mm
- Cable Ø range
5.60 mm (max)
Documents & Downloads
Datasheet
Datasheet 3553422 Escha 8046296 Cable connection M12 10.0 m No. of pins (RJ): 5 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3553422 Escha 8046296 Cable connection M12 10.0 m No. of pins (RJ): 5 1 pc(s)
Description
Flexible, silicone and halogen-free control cable with high mechanical strength. The cable is resistant to chemicals, hydrolysis and microbes. The drag chain insert is at a bending radius of min. 10xd is possible. Due to its welding spark resistance, the wire is very well suitable for flexible use in the field of robot technology, machine tools and chip-repelling production. The lines meet the requirements of UL and CSA (UL10493/20549; cULus). Very good EMC properties in shielded version.
