Name: Escha 8046904 Sensor/actuator cable 5.0 m No. of pins (RJ): 8 1 pc(s)
Brand: Escha
SKU: 3553423
Availability: BackOrder

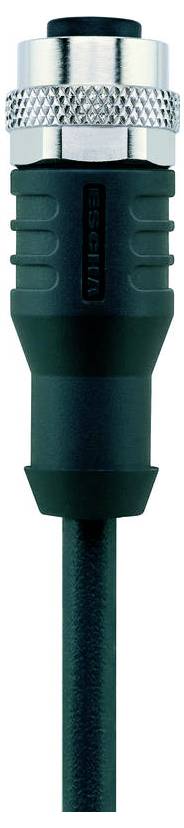

A close-up of a black cable with a metallic connector, showing a rubberized grip and threading near the connector end, used for audio equipment.

'Technical drawing of a cable connector with dimensions: diameter 15mm, thread M12x1, height 49mm, marked SW13 wrench size.'

1/2

Product type

Sensor/actuator cable

Connection side A

M12 socket, straight

Connection side B

Cable, open end

No. of pins

Cable length

5.0 m

Datasheet (PDF)

EAN:

Part number:

Item no:

Available soon

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 32.99 / piece)

€ 32.99

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Rated voltage: 30V
Insulation resistance ≥108 Ω
Material seal (bush): FPM/FKM
Material grip body: Plastic, TPU, BK
Material contacts: Metal, CuZn, gold-plated
Material contact carrier: Plastic, TPU, BK
Mechanical lifespan >100 mating cycles
IEC 61076-2-101 standard
Pin assignment:1 WH, 2 bn, 3 GN, 4 ye, 5 Gy, 6 PK, 7 BU, 8 RD
Number of pins: 8
Protection type (mounted): IP65, IP67, IP68
Plug connector: Socket, straight, M12
Current load capacity per pin (at 40°C): 2.0 A
Ambient temperature: -30°C...+90°C
Pollution level 3
WIRE COLORS: WH, BN, GN, YE, GY, PK, BU, RD
Wire cross-section 8 x 0.25 mm²
Outer diameter of sheath 5.90 mm
Special properties: Flame-resistant, halogen-free, hydrolysis-resistant, LABS-free, oil-resistant, Ozone-resistant, recyclable, RoHS-compliant, acid and alkali-resistant, drag-chain compatible, Sweat-resistant, seawater resistant, silicone-free, torsion-resistant, UV-resistant
Bending radius (moving) 10 x Ø-cable
Bending radius (fixed) 5 x Ø-cable
Halogen-free: Yes
LINE QUALITY S370, PUR, UL
Wire composition 32 x 0.10 mm
Sheath color: BK, similar to RAL9005
Material wire insulation: PP
Material cable jacket: PUR
Nominal voltage cable ≤300 V
Drag chain insert: ≥2 MIO. Cycles
Temperature range (drag chain): -25°C…+60°C.
Temperature range (moving): -30°C...+90°C.
Temperature range (fixed): -40°C...+90°C.
Torsion: +/-180°/m, ≥ 0.5 MIO. Cycles
Coding: A
Constant resistance 5 mΩ
End set: Open cable ends
Material over-throw: Metal, CuZn, nickel-plated

Type: AL-WAK8-5/S370

Product type: Sensor/actuator cable

Connection side A: M12 socket, straight

Connection side B: Cable, open end

No. of pins: 8

Cable length: 5.0 m

Nominal voltage: 30 V

Nominal current: 2.0 A

Nominal current - rounded value: 2 A

Coding: A

Contact material: CuZn

Manufacturer part #: 8046904

Content: 1 pc(s)

Documents & Downloads

Datasheet

Datasheet 3553423 Escha 8046904 Sensor/actuator cable 5.0 m No. of pins (RJ): 8 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3553423 Escha 8046904 Sensor/actuator cable 5.0 m No. of pins (RJ): 8 1 pc(s)

Description

Flexible, silicone and halogen-free control cable with high mechanical strength. The cable is resistant to chemicals, hydrolysis and microbes. The drag chain insert is at a bending radius of min. 10xd is possible. Due to its welding spark resistance, the wire is very well suitable for flexible use in the field of robot technology, machine tools and chip-repelling production. The lines meet the requirements of UL and CSA (UL10493/20549; cULus).
