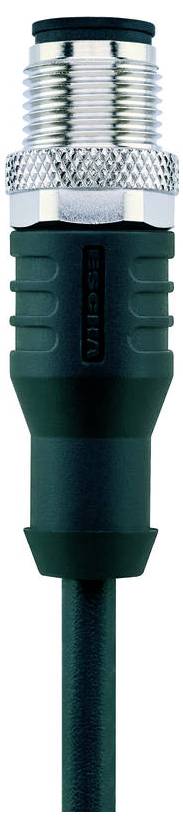

Escha 8046909 Sensor/actuator cable 2.0 m No. of pins (RJ): 8 1 pc(s)
EAN:
Part number:
Item no:
Product type
Sensor/actuator cable
Connection side A
M12 plug, straight
Connection side B
Cable, open end
No. of pins
8
Cable length
2.0 m
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 22.68
3
4% = € 0.98
€ 21.70
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 22.68 / piece)
€ 22.68
plus VAT.
Technical specifications
- Rated voltage: 30V
- Insulation resistance ≥108 Ω
- Material grip body: Plastic, TPU, BK
- Material contacts: Metal, CuZn, gold-plated
- Material contact carrier: Plastic, TPU, BK
- Mechanical lifespan >100 mating cycles
- IEC 61076-2-101 standard
- Pin assignment:1 WH, 2 bn, 3 GN, 4 ye, 5 Gy, 6 PK, 7 BU, 8 RD
- Number of pins: 8
- Protection type (mounted): IP65, IP67, IP68

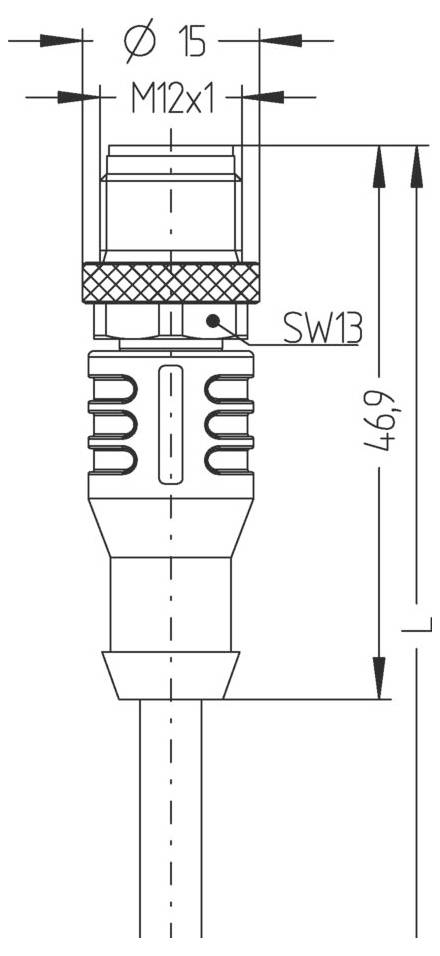

- Plug connector: Plug, straight, M12
- Current load capacity per pin (at 40°C): 2.0 A
- Ambient temperature: -30°C...+90°C
- Pollution level 3
- WIRE COLORS: WH, BN, GN, YE, GY, PK, BU, RD
- Wire cross-section 8 x 0.25 mm²
- Outer diameter of sheath 5.90 mm
- Special properties: Flame-resistant, halogen-free, hydrolysis-resistant, LABS-free, oil-resistant, Ozone-resistant, recyclable, RoHS-compliant, acid and alkali-resistant, drag-chain compatible, Sweat-resistant, seawater resistant, silicone-free, torsion-resistant, UV-resistant
- Bending radius (moving) 10 x Ø-cable
- Bending radius (fixed) 5 x Ø-cable
- Halogen-free: Yes
- LINE QUALITY S370, PUR, UL
- Wire composition 32 x 0.10 mm
- Sheath color: BK, similar to RAL9005
- Material wire insulation: PP
- Material cable jacket: PUR
- Nominal voltage cable ≤300 V
- Drag chain insert: ≥2 MIO. Cycles
- Temperature range (drag chain): -25°C…+60°C.
- Temperature range (moving): -30°C...+90°C.
- Temperature range (fixed): -40°C...+90°C.
- Torsion: +/-180°/m, ≥ 0.5 MIO. Cycles
- Coding: A
- Constant resistance 5 mΩ
- End set: Open cable ends
- Material over-throw: Metal, CuZn, nickel-plated
- Type
AL-WAS8-2/S370
- Product type
Sensor/actuator cable
- Connection side A
M12 plug, straight
- Connection side B
Cable, open end
- No. of pins
8
- Cable length
2.0 m
- Jacket material
PUR
- Nominal voltage
30 V
- Nominal current
2.0 A
- Nominal current - rounded value
2 A
- Outside Ø
5.90 mm
- Cross-section (sensor/actuator wiring)
0.25 mm²
- Connection
Open cable ends
- Coding
A
- Contact material
CuZn
- Contact surface
Gold plated
- Features
Halogen-free
- Min. temperature
-40 °C
- Max. temperature
90 °C
- Manufacturer part #
8046909
- Content
1 pc(s)
- Cable Ø
5.90 mm
Documents & Downloads
Datasheet
Datasheet 3553425 Escha 8046909 Sensor/actuator cable 2.0 m No. of pins (RJ): 8 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3553425 Escha 8046909 Sensor/actuator cable 2.0 m No. of pins (RJ): 8 1 pc(s)
Description
Flexible, silicone and halogen-free control cable with high mechanical strength. The cable is resistant to chemicals, hydrolysis and microbes. The drag chain insert is at a bending radius of min. 10xd is possible. Due to its welding spark resistance, the wire is very well suitable for flexible use in the field of robot technology, machine tools and chip-repelling production. The lines meet the requirements of UL and CSA (UL10493/20549; cULus).
