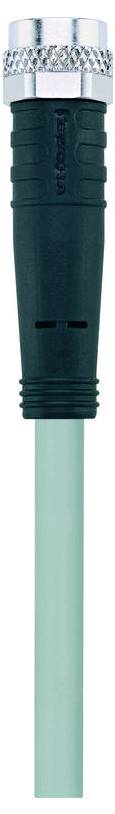

Name: Escha 8048640 Sensor/actuator cable M8 5.0 m No. of pins (RJ): 3 1 pc(s)
Brand: Escha
SKU: 3553437
Availability: BackOrder

Technical specifications

Rated voltage: 60V
Insulation resistance ≥108 Ω
Material seal (bush): FPM/FKM
Material grip body: Plastic, TPU, BK
Material contacts: Metal, CuSn, gold plated
Material contact carrier: Plastic, TPU, BK
Mechanical lifespan >100 mating cycles
IEC 61076-2-104 standard
Pin assignment:1 BN 3 BU 4 BK
Number of poles: 3
Protection type (mounted): IP65, IP67, IP68
Plug connector: Socket, straight, M8
Current load capacity per pin (at 40°C): 4.0 A
Ambient temperature: -30°C...+90°C
Pollution level 3
WIRE COLORS: BN, BU, BK
Wire cross-section 3 x 0.25 mm²
Outer diameter of sheath 4.00 mm
Special properties: Good oil and chemical resistance, LABS-free, ozone resistant, recyclable, RoHS compliant. Acid and caustic solution dependent, seawater resistant, UV resistant
Bending radius (moving) 10 x Ø-cable
Bending radius (fixed) 5 x Ø-cable
Line quality P00, PVC
Wire composition 14 x 0.15 mm
Jacket color: GY, similar to RAL7040
Material wire insulation: PVC
Material cable jacket: PVC
Nominal voltage cable ≤300 V
Temperature range (moving): 0°C...+80°C.
Temperature range (fixed): -25°C...+80°C.
Constant resistance 5 mΩ
End set: Open cable ends
Material over-throw: Metal, CuZn, nickel-plated

Type: AL-SKP3-5/P00

Product type: Sensor/actuator cable

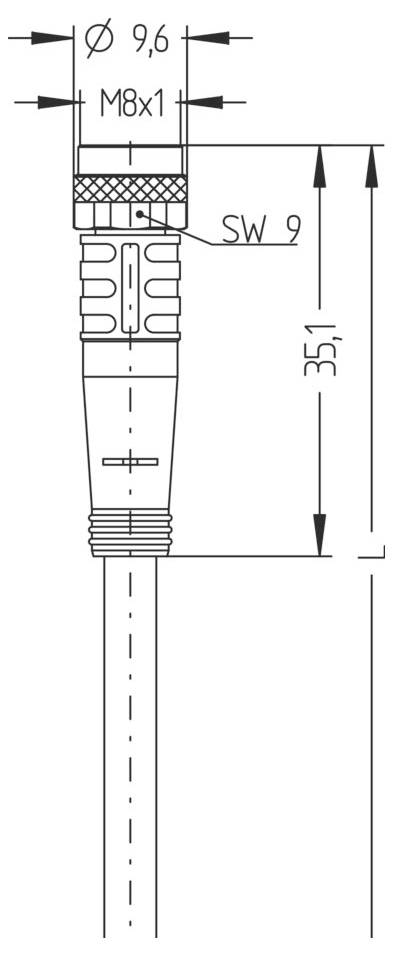

Connection side A: M8 socket, straight

Connection side B: Cable, open end

No. of pins: 3

Cable length: 5.0 m

Jacket material: PVC

Nominal voltage: 60 V

Nominal current: 4.0 A

Nominal current - rounded value: 4 A

Outside Ø: 4.00 mm

Cross-section (sensor/actuator wiring): 0.25 mm²

Connection: M8 socket

Thread type connection side: M8

Contact material: CuSn, gold plated

Features: Corrosion-resistant
Ozone-resistant
Suitable for drag chains
UV-resistant
Recyclable
Acid-resistant/non-caustic

Min. temperature: -30 °C

Max. temperature: 90 °C

Manufacturer part #: 8048640

Content: 1 pc(s)

Cable Ø: 4.00 mm

Documents & Downloads

Datasheet

Datasheet 3553437 Escha 8048640 Sensor/actuator cable M8 5.0 m No. of pins (RJ): 3 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3553437 Escha 8048640 Sensor/actuator cable M8 5.0 m No. of pins (RJ): 3 1 pc(s)

Description

PVC cable for use in control systems, control systems and sensors. Suitable for use in the dry area in packaging machines and assembly and handling technology. High flexibility with unloaded movement (conditional drag chain application possible). Intended for use in the food and beverage industry.

This text is machine translated.

Description

PVC cable for use in control systems, control systems and sensors. Suitable for use in the dry area in packaging machines and assembly and handling technology. High flexibility with unloaded movement (conditional drag chain application possible). Intended for use in the food and beverage industry.
