Escha 8048646 Sensor/actuator cable M8 5.0 m No. of pins (RJ): 4 1 pc(s)
EAN:
Part number:
Item no:
Product type
Sensor/actuator cable
Connection side A
M8 socket, straight
Connection side B
Cable, open end
No. of pins
4
Cable length
5.0 m
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 12.60
3
6% = € 0.70
€ 11.90
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 12.60 / piece)
€ 12.60
plus VAT.
Only 7 Piece(s) available
Technical specifications
- Rated voltage: 60V
- Insulation resistance ≥108 Ω
- Material seal (bush): FPM/FKM
- Material grip body: Plastic, TPU, BK
- Material contacts: Metal, CuSn, gold plated
- Material contact carrier: Plastic, TPU, BK
- Mechanical lifespan >100 mating cycles
- IEC 61076-2-104 standard
- Pin assignment:1 BN 2 WH, 3 BU, 4 BK
- Number of pins: 4
- Protection type (mounted): IP65, IP67, IP68

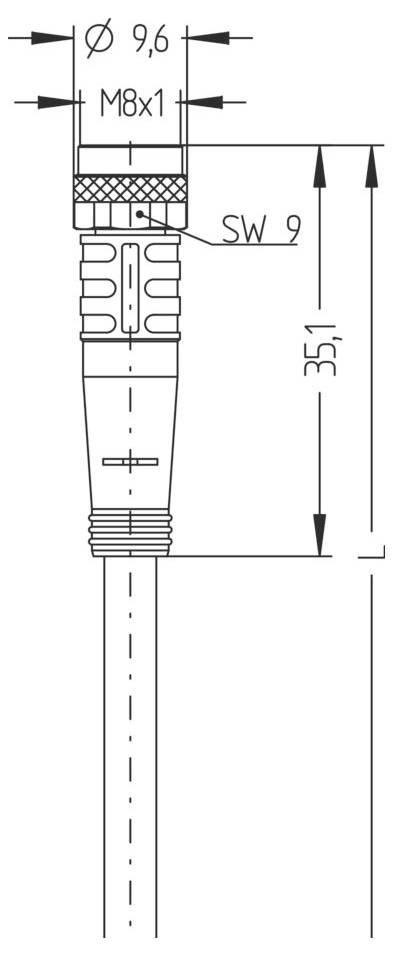

- Plug connector: Socket, straight, M8
- Current load capacity per pin (at 40°C): 4.0 A
- Ambient temperature: -30°C...+90°C
- Pollution level 3/2
- WIRE COLORS: BN, WH, BU, BK
- Wire cross-section 4 x 0.25 mm²
- Outer diameter of sheath 4.20 mm
- Special properties: Good oil and chemical resistance, LABS-free, ozone resistant, recyclable, RoHS compliant. Acid and caustic solution dependent, seawater resistant, UV resistant
- Bending radius (moving) 10 x Ø-cable
- Bending radius (fixed) 5 x Ø-cable
- Line quality P00, PVC
- Wire composition 14 x 0.15 mm
- Jacket color: GY, similar to RAL7040
- Material wire insulation: PVC
- Material cable jacket: PVC
- Nominal voltage cable ≤300 V
- Temperature range (moving): 0°C...+80°C.
- Temperature range (fixed): -25°C...+80°C.
- Constant resistance 5 mΩ
- End set: Open cable ends
- Material over-throw: Metal, CuZn, nickel-plated
- Type
AL-SKP4-5/P00
- Product type
Sensor/actuator cable
- Connection side A
M8 socket, straight
- Connection side B
Cable, open end
- No. of pins
4
- Cable length
5.0 m
- Jacket material
PVC
- Nominal voltage
60 V
- Nominal current
4.0 A
- Nominal current - rounded value
4 A
- Outside Ø
4.20 mm
- Cross-section (sensor/actuator wiring)
0.25 mm²
- Thread type connection side
M8
- Thread type (wiring and installation)
M8
- Contact material
CuSn, gold plated
- Contact surface
Gold plated
- Features
Ozone-resistant
- Min. temperature
-30 °C
- Max. temperature
+90 °C
- Manufacturer part #
8048646
- Content
1 pc(s)
- Cable Ø
4.20 mm
Documents & Downloads
Datasheet
Datasheet 3553440 Escha 8048646 Sensor/actuator cable M8 5.0 m No. of pins (RJ): 4 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3553440 Escha 8048646 Sensor/actuator cable M8 5.0 m No. of pins (RJ): 4 1 pc(s)
Description
PVC cable for use in control systems, control systems and sensors. Suitable for use in the dry area in packaging machines and assembly and handling technology. High flexibility with unloaded movement (conditional drag chain application possible). Intended for use in the food and beverage industry.
