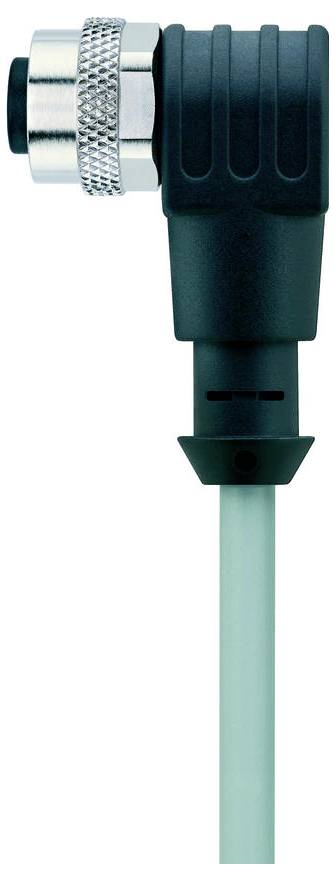

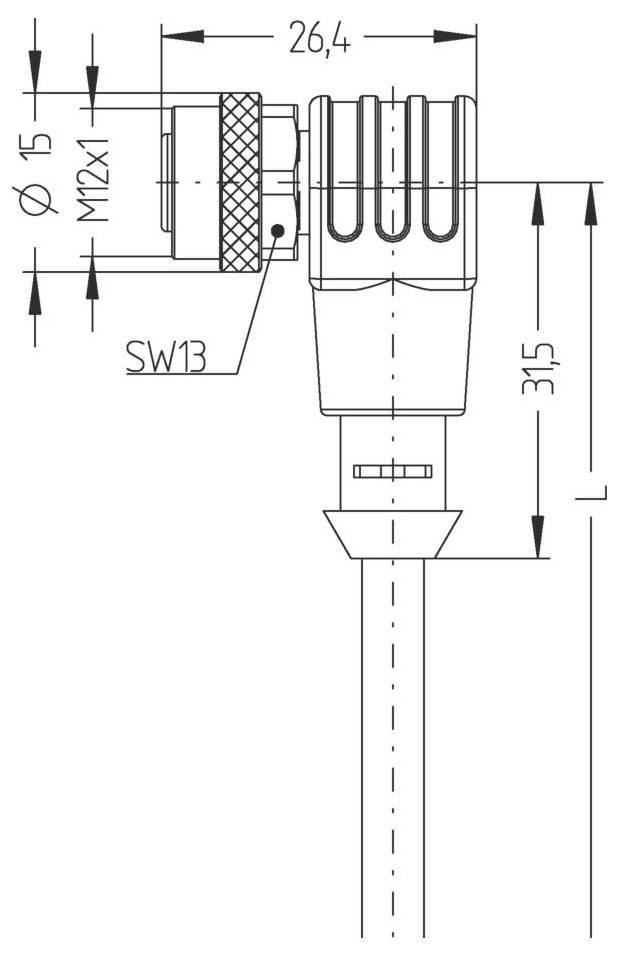

Name: Escha 8049343 Sensor/actuator cable M12 5.0 m No. of pins (RJ): 4 1 pc(s)
Brand: Escha
SKU: 3553442
Availability: InStock

Technical specifications

Rated voltage: 250V
Insulation resistance ≥108 Ω
Material seal (bush): FPM/FKM
Material grip body: Plastic, TPU, BK
Material contacts: Metal, CuSn, gold plated
Material contact carrier: Plastic, TPU, BK
Mechanical lifespan >100 mating cycles
IEC 61076-2-101 standard
Pin assignment:1 BN 2 WH, 3 BU, 4 BK
Number of pins: 4
Protection type (mounted): IP65, IP67, IP68
Plug connector: Socket, angled, M12
Current load capacity per pin (at 40°C): 4.0 A
Ambient temperature: -30°C...+90°C
Pollution level 3
WIRE COLORS: BN, WH, BU, BK
Wire cross-section 4 x 0.34 mm²
Outer diameter of sheath 4.50 mm
Special properties: Good oil and chemical resistance, LABS-free, ozone resistant, recyclable, RoHS compliant. Acid and caustic solution dependent, seawater resistant, UV resistant
Bending radius (moving) 10 x Ø-cable
Bending radius (fixed) 5 x Ø-cable
Line quality P00, PVC
Wire composition 19 x 0.15 mm
Jacket color: GY, similar to RAL7040
Material wire insulation: PVC
Material cable jacket: PVC
Nominal voltage cable ≤300 V
Temperature range (moving): 0°C...+80°C.
Temperature range (fixed): -25°C...+80°C.
Coding: A
Constant resistance 5 mΩ
End set: Open cable ends
Material over-throw: Metal, CuZn, nickel-plated

Type: AL-WWAK4-5/P00

Product type: Sensor/actuator cable

Connection side A: M12 socket, right angle

Connection side B: Cable, open end

No. of pins: 4

Cable length: 5.0 m

Jacket material: PVC

Nominal voltage: 250 V

Nominal current: 4.0 A

Nominal current - rounded value: 4 A

Connector cross-section (max.): 0.34 mm²

Outside Ø: 4.50 mm

Cross-section (sensor/actuator wiring): 0.34 mm²

Connection: Socket

Thread type connection side: M12

Thread type (wiring and installation): M12

Coding: A

Contact material: CuSn, gold plated

Contact surface: Gold plated

max. cross section: 0.34 mm²

Features: Ozone-resistant

Min. temperature: -30 °C

Max. temperature: 90 °C

Manufacturer part #: 8049343

Content: 1 pc(s)

Cable Ø: 4.50 mm

Cable Ø (max.): 4.50 mm

Cable Ø range: 4.50 mm (max)

Documents & Downloads

Datasheet

Datasheet 3553442 Escha 8049343 Sensor/actuator cable M12 5.0 m No. of pins (RJ): 4 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3553442 Escha 8049343 Sensor/actuator cable M12 5.0 m No. of pins (RJ): 4 1 pc(s)

Description

PVC cable for use in control systems, control systems and sensors. Suitable for use in the dry area in packaging machines and assembly and handling technology. High flexibility with unloaded movement (conditional drag chain application possible). Intended for use in the food and beverage industry.
