Buy Escha 8051057 Sensor/actuator cable M12 10.0 m No. of pins (RJ): 4 1 pc(s)

Technical specifications

Rated voltage: 250V
Insulation resistance ≥108 Ω
Material seal (bush): FPM/FKM
Material grip body: Plastic, TPU, BK
Material contacts: Metal, CuSn, gold plated
Material contact carrier: Plastic, TPU, BK
Mechanical lifespan >100 mating cycles
IEC 61076-2-101 standard
Pin assignment:1 BN 2 WH, 3 BU, 4 BK
Number of pins: 4
Protection type (mounted): IP65, IP67, IP68

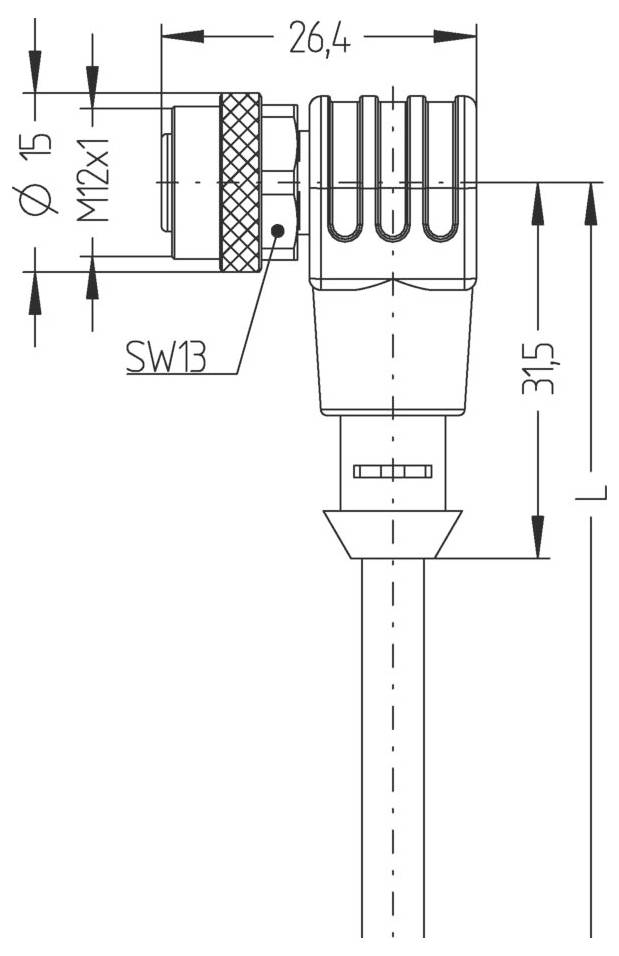

Plug connector: Socket, angled, M12
Current load capacity per pin (at 40°C): 4.0 A
Ambient temperature: -30°C...+90°C
Pollution level 3
WIRE COLORS: BN, WH, BU, BK
Wire cross-section 4 x 0.34 mm²
Outer diameter of sheath 4.50 mm
Special properties: Good oil and chemical resistance, LABS-free, ozone resistant, recyclable, RoHS compliant. Acid and caustic solution dependent, seawater resistant, UV resistant
Bending radius (moving) 10 x Ø-cable
Bending radius (fixed) 5 x Ø-cable
Line quality P00, PVC
Wire composition 19 x 0.15 mm
Jacket color: GY, similar to RAL7040
Material wire insulation: PVC
Material cable jacket: PVC
Nominal voltage cable ≤300 V
Temperature range (moving): 0°C...+80°C.
Temperature range (fixed): -25°C...+80°C.
Coding: A
Constant resistance 5 mΩ
End set: Open cable ends
Material over-throw: Metal, CuZn, nickel-plated
