Escha 8052224 Sensor/actuator splitter/adapter No. of pins (RJ): 4, 3 1 pc(s)

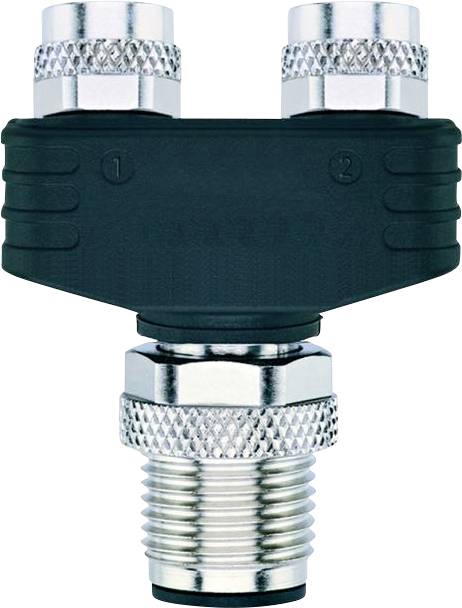

A coaxial cable splitter with two female ports on top labeled '1' and '2', and one male port at the bottom, used to divide a cable signal.

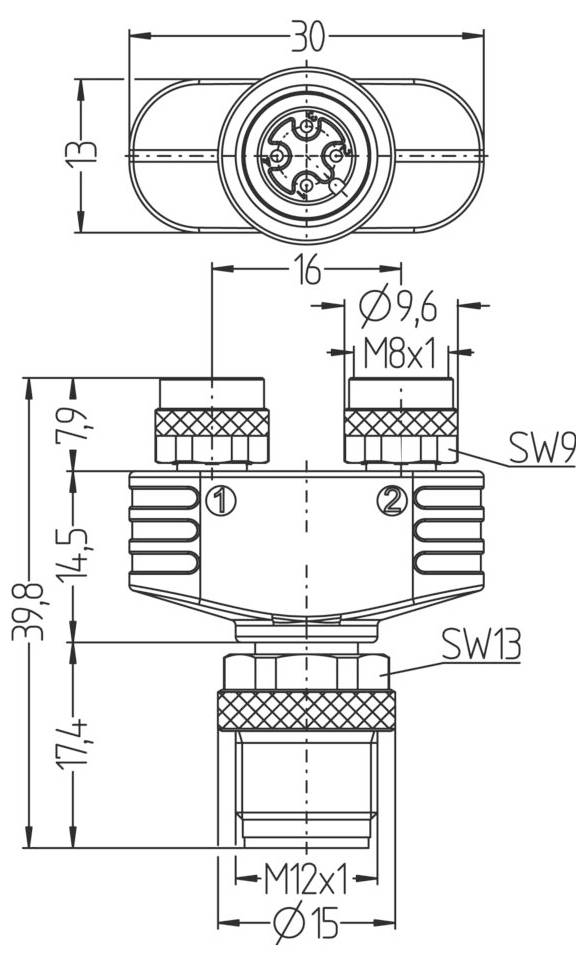

Technical drawing of a connector. Top view shows a circular, symmetrical design. Side view dimensions include M8x1, M12x1 threads.
1/2
Product type
Sensor/actuator splitter/adapter
Connection side A
M12 plug, straight
Connection side B
M8 socket, straight
No. of pins
4
3
Nominal voltage
60 V
Datasheet (PDF)
EAN:
Part number:
Item no:
Available soon
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 24.99 / piece)
€ 24.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Technical specifications

  • Insulation resistance ≥108 Ω
  • Material seal (bush): FPM/FKM
  • Material grip body: Plastic, TPU, BU
  • Mechanical lifespan >100 mating cycles
  • IEC 61076-2-101/-104
  • Protection type (mounted): IP65, IP67, IP68
  • Ambient temperature: -30°C...+90°C
  • Pollution level 3
  • Coding: A
  • Rated voltage (side A | side B): 60V
  • Material contacts (side A | side B): Metal, CuZn, gold-plated
  • Material contact carrier (page A | page B): Plastic, TPU, BK
  • Material over-throw (side A | side B): Metal, CuZn, nickel-plated
  • Current rating per pin (at 40°C) (side A | side B): 4 A.
  • Output (side A | side B): Plug, M12;socket, M8
  • Number of pins (page A | page B): 4;3
Type

Y-WAS4-2SKP3/S55/S56

Product type

Sensor/actuator splitter/adapter

Connection side A

M12 plug, straight

Connection side B

M8 socket, straight

No. of pins

4

3

Nominal voltage

60 V

Nominal current

4 A

Nominal current - rounded value

4 A

Coding

A

Contact material

CuZn

Manufacturer part #

8052224

Content

1 pc(s)

Documents & Downloads

Datasheet

Datasheet 3553448 Escha 8052224 Sensor/actuator splitter/adapter No. of pins (RJ): 4, 3 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3553448 Escha 8052224 Sensor/actuator splitter/adapter No. of pins (RJ): 4, 3 1 pc(s)

Description

Escha standard connection technology stands for variety, quality and reliability in the protection classes IP67, IP68 and IP69. Thanks to different designs, codes and a variety of cable qualities, you will find the right solution for every application. Whether M8, M12 or M23 round connectors, RJ45 or solenoid connectors – all products come in many cable lengths. Practical T and Y-distributor, panel-mounted plug, adapter and I/O-modules enable a flexible wiring structure.

This text is machine translated.
