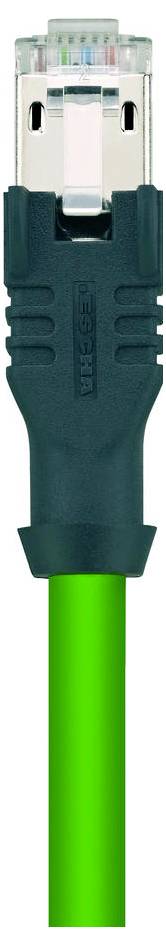

Escha 8053289 Cable connection M12 5.0 m No. of pins (RJ): 8 1 pc(s)
EAN:
Part number:
Item no:
Product type
Cable connection
Connector standard
RJ45

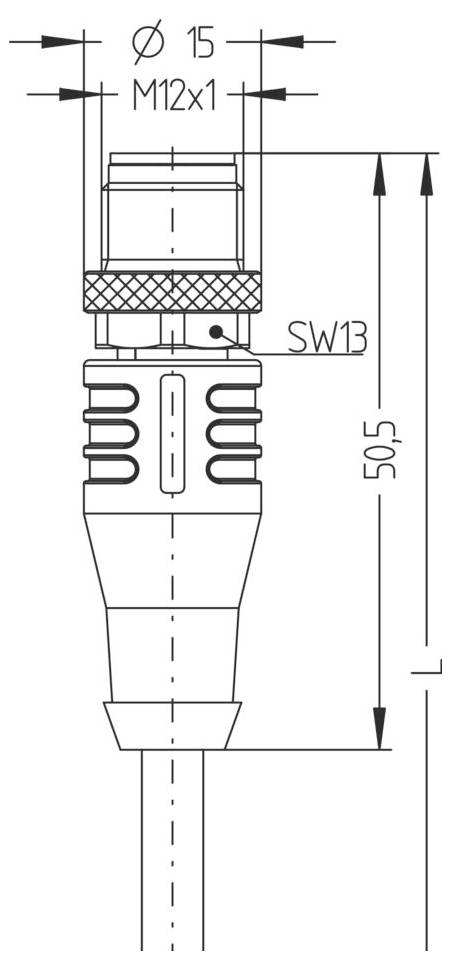

Connection side A
M12 plug, straight

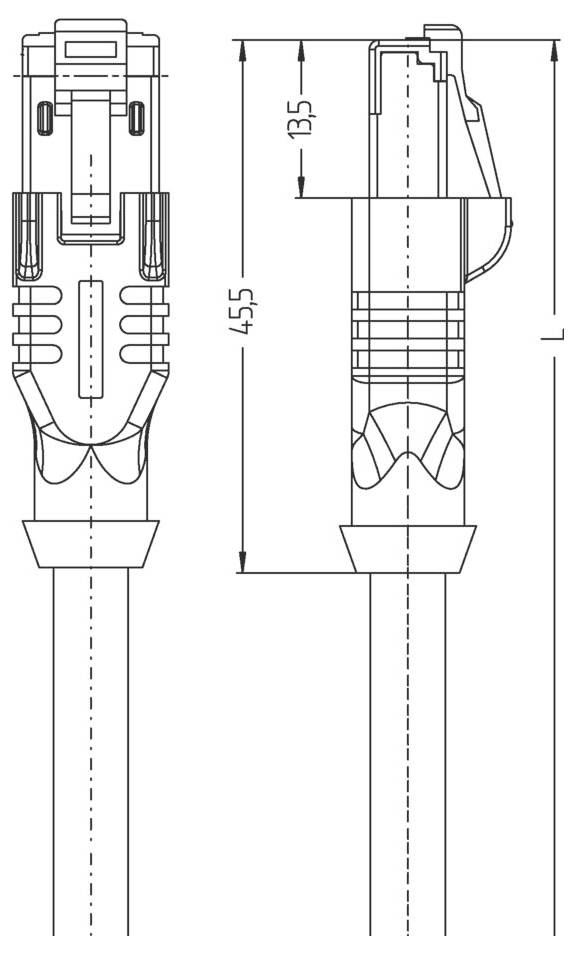

Connection side B
RJ45 plug
No. of pins
8
Datasheet (PDF)
Number
Total (€ 67.22 / piece)
€ 67.22
plus VAT.
Technical specifications
- WIRE COLORS: WH/OG ; WH/GN ; WH/BN ; WH/BU
- Wire cross-section 4 x 2 x 0.14 mm²
- Outer diameter of sheath 6.40 mm
- Special properties: Halogen-free, high flexibility, hydrolysis-resistant, no fire transmission, no corrosive gases, LABS-free, microbe-resistant, oil-resistant, recyclable, RoHS-compliant, Acid and alkali-resistant, seawater resistant, UN ECE R 118, UV-resistant
- Bending radius (moving) 10 x Ø-cable
- Bending radius (fixed) 5 x Ø-cable
- Halogen-free: Yes
- LINE QUALITY S3500, PUR, UL
- Wire composition 7 x 0.16 mm
- Sheath color: Green, similar to RAL6018
- Material wire insulation: PE
- Material cable jacket: PUR
- Nominal voltage cable 30 V UL-rating
- Temperature range (moving): -20°C...+60°C.
- Temperature range (fixed): -40°C...+80°C.
- Coding: X
- Material over-throw: Metal, CuZn, nickel-plated
- Shielding: Yes
- Insulation resistance (side A | side B): ≥108 Ω
- Number of pins (page A | page B): 8
- Connector (side A | side B): Male, straight, M12;male, straight, RJ45
- Shielding (side A | side B): With shielding
- Transfer properties (page A | page B): Cat6A
- Transmission features: Cat7
- Assignment (page A | page B): ;T568B
- Material contacts (side A | side B): Metal, CuZn, gold plated;metal, CuSn, gold plated
- Material Contact carrier (side A | side B): Plastic, PA;plastic
- Mechanical life (page A | page B): >100 mating cycles;>750 mating cycles
- Standards (page A | page B): IEC 61076-2-109;IEC 60603-7-51
- Material shield housing (side A | side B): ;Metal, CuZn, nickel-plated
- Pin assignment (page A | page B): 1 WHOG, 2 OG; 3 WHGN, 4 GN; 5 WHBN, 6 BN; 7 WHBU, 8 BU;1 WHOG, 2 OG; 3 WHGN, 4 BU; 5 WHBU, 6 GN; 7 WHBN, 8 BN
- Protection class (mounted) (side A | side B): IP65, IP67, IP68;IP20
- Current load capacity per pin (at 40°C) (side A | side B): 0.5 A;1.0 A
- Ambient temperature (page A | page B): -30°C....+90°C;-40°C...+70°C.
- Pollution level (side A | side B): 2;1
- Rated voltage (side A | side B): 50VAC ; 60VDC;60V
- Rated current 0.5A
- Material of grip body (side A | side B): Plastic, TPU, BK;plastic, TPE, BK
- Type
IE-WASSX8.066-5-IE-RJ45SS8.002/S3500
- Product type
Cable connection
- Connector standard
RJ45
- Connection side A
M12 plug, straight
- Connection side B
RJ45 plug
- No. of pins
8
- Cable length
5.0 m
- Jacket material
PUR
- Nominal voltage
50 V AC
60 V DC
60 V
- Nominal current
0.5 A
- Nominal current - rounded value
500 mA
- Outside Ø
6.40 mm
- Cross-section (sensor/actuator wiring)
0.14 mm²
- Connection
M12 plug
- Factory colour
RAL 6018 (Yellow Green)
- Thread type connection side
M12
- Thread type (wiring and installation)
M12
- Coding
X
- Contact material
CuZn
- Contact surface
Gold plated
- Features
Halogen-free
- Min. temperature
-40 °C
- Max. temperature
90 °C
- Manufacturer part #
8053289
- Content
1 pc(s)
- Cable Ø
6.40 mm
Documents & Downloads
Datasheet
Datasheet 3553449 Escha 8053289 Cable connection M12 5.0 m No. of pins (RJ): 8 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3553449 Escha 8053289 Cable connection M12 5.0 m No. of pins (RJ): 8 1 pc(s)
Description
Shielded PUR cable for secure and industrial data transfer in automation and fieldbus technology. The cable meets the requirements of ULStyle 20963 and meets the requirements of Cat7 (elect. Properties based on EN50288-4-2). The materials and design allow increased mechanical strain (abrasion, bend, vibration, etc.) of the cable.
