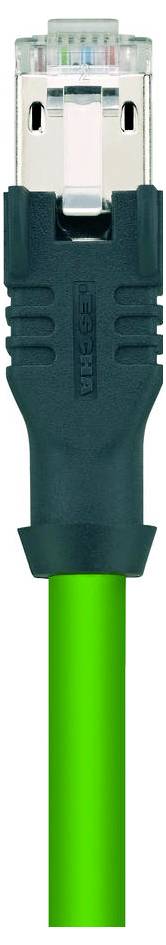

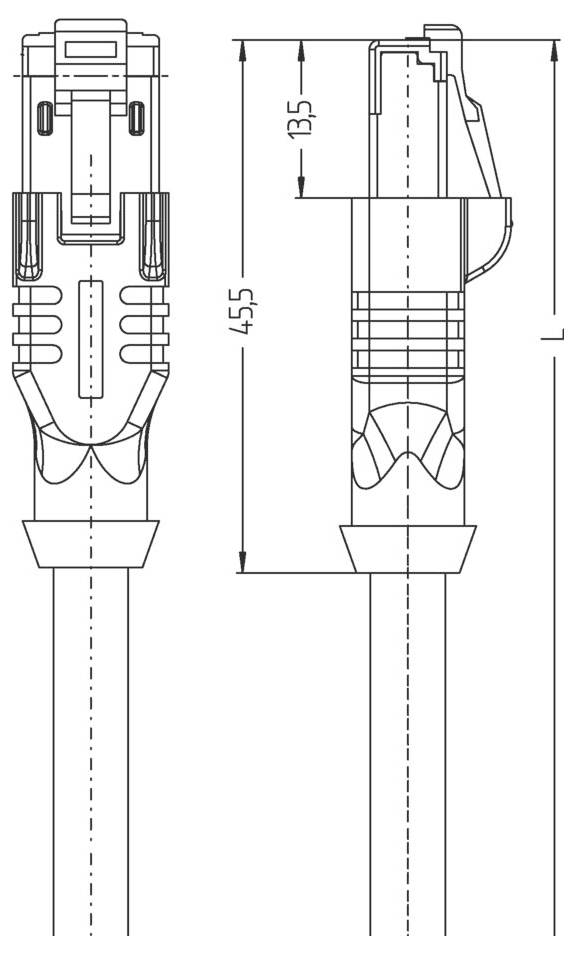

Name: Escha 8056578 Cable connection 1.0 m No. of pins (RJ): 4 1 pc(s)
Brand: Escha
SKU: 3553452
Availability: BackOrder

Technical specifications

WIRE COLORS WHBU/BU, WHOG/OG
Wire cross-section 1 x 4 x AWG26, star quad
Outer diameter of sheath 4.80 mm
Special properties: Halogen-free, high flexibility, hydrolysis-resistant, LAB-free, microbe-resistant, oil-resistant, ozone-resistant, recyclable, RoHS-compliant, acid and alkali-resistant, Drag-chain capable, sea water resistant, UV-resistant
Bending radius (moving) 7.5 x Ø-cable
Bending radius (fixed) 4 x Ø-cable
LINE QUALITY S3400, PUR, UL
Wire composition 19 x 0.10 mm
Sheath color: Green, similar to RAL6018
Material wire insulation: PP
Material cable jacket: PUR
Nominal voltage cable 300 V UL-rating
Temperature range (moving): -30°C...+70°C.
Temperature range (fixed): -40°C...+80°C.
Rated voltage (side A | side B): 60V
Insulation resistance (side A | side B): ≥108 Ω
Material grip body (side A | side B): Plastic, TPU, BK
Material contacts (side A | side B): Metal, CuZn, gold-plated
Material Contact carrier (side A | side B): Plastic
Mechanical life (page A | page B): >1000 mating cycles
Standards (page A | page B): IEC 60603-7-5
Pin assignment (page A | page B): 1 WHOG, 2 OG, 3 WHBU, 6 BU
Number of pins (page A | page B): 4
Protection (mounted) (page A | page B): IP20
Current rating per pin (at 40°C) (side A | side B): 1.0 A.
Ambient temperature (page A | page B): -40°C...+70°C.
Pollution level (page A | page B): 1
Assignment (page A | page B): Industrial
Material shield housing (side A | side B): Metal, CuZn, nickel-plated
Shielding (side A | side B): With shielding
Connector (side A | side B): Male, straight, RJ45
Transfer properties (page A | page B): Cat5e
Transmission features: Cat5
Rated current 1.0A

Type: IE-RJ45SS8.005-1-IE-RJ45SS8.005/S3400

Product type: Cable connection

Connector standard: RJ45

Connection side A: RJ45 plug

Connection side B: RJ45 plug

No. of pins: 4

Cable length: 1.0 m

Jacket material: PUR

Nominal voltage: 60 V

Nominal current: 1.0 A

Nominal current - rounded value: 1 A

Outside Ø: 4.80 mm

Connection: RJ45

Contact material: CuZn

Features: Halogen-free

Min. temperature: -40 °C

Max. temperature: 80 °C

Manufacturer part #: 8056578

Content: 1 pc(s)

Cable Ø: 4.80 mm

Cable Ø (max.): 4.80 mm

Cable Ø range: 4.80 mm (max)

Documents & Downloads

Datasheet

Datasheet 3553452 Escha 8056578 Cable connection 1.0 m No. of pins (RJ): 4 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3553452 Escha 8056578 Cable connection 1.0 m No. of pins (RJ): 4 1 pc(s)

Description

Shielded Ethernet cable made of PUR for secure and industrial-grade data transfer in automation and fieldbus technology. Real-time requirements based on IEC61158 can be implemented. The cable meets the requirements of UL-style 21815 (80°/300V) and the requirements of Cat5 (electrical Properties based on EN50288-2-2). Materials and designed construction for increased mechanical strain (abrasion, bends, vibrations etc.) of the cable. Use in drag chain operation/with torsion possible. High tensile strength by integrated Kevlar fibers.
