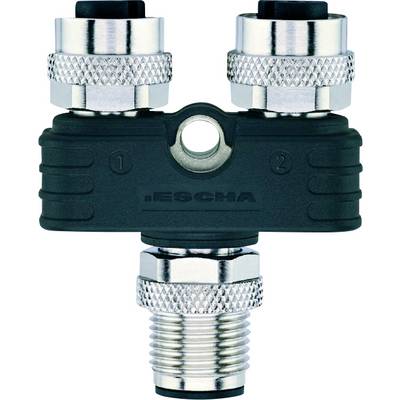

Escha 8056694 Sensor/actuator splitter/adapter M12 Adapter No. of pins (RJ): 5 1 pc(s)
EAN:
Part number:
Item no:
Product type
Sensor/actuator splitter/adapter
Connector type
Adapter
Connection side A
M12 plug, straight
Connection side B
M12 socket, straight
No. of pins
5
Datasheet (PDF)
Number
Total (€ 55.45 / piece)
€ 55.45
plus VAT.
Technical specifications
- Insulation resistance ≥108 Ω
- Material seal (bush): FPM/FKM
- Material grip body: Plastic, TPU, BK
- Mechanical lifespan >100 mating cycles
- IEC 61076-2-101 standard
- Protection type (mounted): IP65, IP67, IP68
- Ambient temperature: -30°C...+90°C
- Pollution level 3
- Shielding: With shielding
- Rated voltage (side A | side B): 60V
- Material contacts (side A | side B): Metal, CuZn, gold-plated
- Material contact carrier (page A | page B): Plastic, TPU, BK
- Material over-throw (side A | side B): Metal, CuZn, nickel-plated
- Number of pins (page A | page B): 5
- Current rating per pin (at 40°C) (side A | side B): 4 A.
- Output (side A | side B): Plug, M12;socket, M12
- Coding (page A | page B): A.
- Type
Y-WASS5-2WAKS5
- Product type
Sensor/actuator splitter/adapter
- Connector type
Adapter
- Connection side A
M12 plug, straight
- Connection side B
M12 socket, straight
- No. of pins
5
- Nominal voltage
60 V
- Nominal current
4 A
- Nominal current - rounded value
4 A
- Connection
Plug
- Thread type connection side
M12
- Thread type (wiring and installation)
M12
- Coding
A
- Contact material
CuZn
- Features
Shielded
- Min. temperature
-30 °C
- Max. temperature
90 °C
- Manufacturer part #
8056694
- Content
1 pc(s)
Documents & Downloads
Datasheet
Datasheet 3553455 Escha 8056694 Sensor/actuator splitter/adapter M12 Adapter No. of pins (RJ): 5 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3553455 Escha 8056694 Sensor/actuator splitter/adapter M12 Adapter No. of pins (RJ): 5 1 pc(s)
Description
Escha standard connection technology stands for variety, quality and reliability in the protection classes IP67, IP68 and IP69. Thanks to different designs, codes and a variety of cable qualities, you will find the right solution for every application. Whether M8, M12 or M23 round connectors, RJ45 or solenoid connectors – all products come in many cable lengths. Practical T and Y-distributor, panel-mounted plug, adapter and I/O-modules enable a flexible wiring structure.
