Escha 8057723 Sensor/actuator splitter/adapter Adapter No. of pins (RJ): 5 1 pc(s)

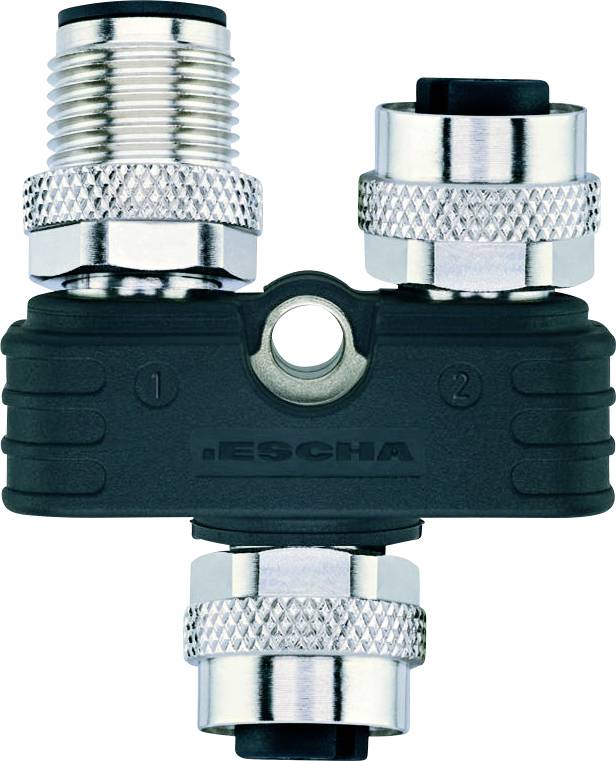

A T-shaped industrial connector with three metal ports labeled '1' and '2', and 'ESCHA' embossed on the black body, used for cable connections.

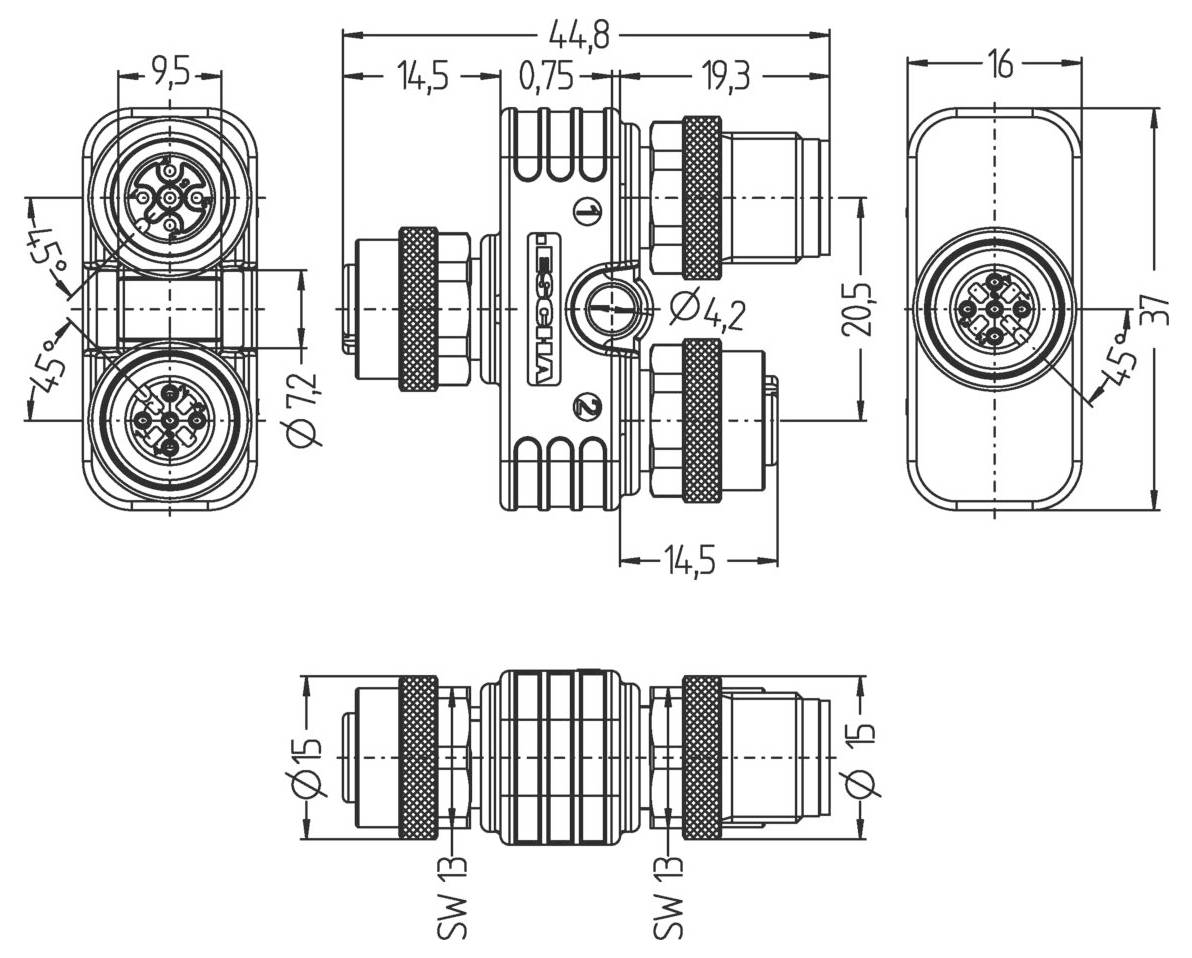

'Technical diagram showing mechanical part with detailed measurements including diameters, widths, and component labels in millimeters.'

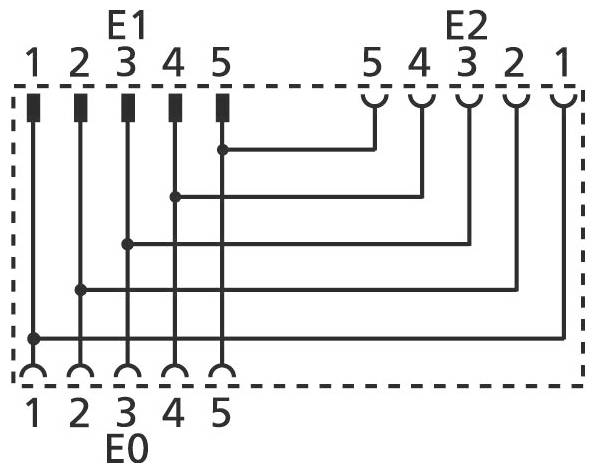

Diagram showing a connection matrix labeled E0 to E2 with numbered inputs and outputs ranging from 1 to 5, illustrating circuit paths.
1/3
Product type
Sensor/actuator splitter/adapter
Connector type
Adapter
Connector standard
Sensor connector
Connection side A
M12 socket, straight
Connection side B
M12 plug, straight
Datasheet (PDF)
EAN:
Part number:
Item no:
Available soon
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 65.99 / piece)
€ 65.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Technical specifications

  • Insulation resistance ≥108 Ω
  • Material seal (bush): FPM/FKM
  • Material grip body: Plastic, TPU, BK
  • Mechanical lifespan >100 mating cycles
  • IEC 61076-2-101 standard
  • Protection type (mounted): IP65, IP67, IP68
  • Ambient temperature: -30°C...+90°C
  • Pollution level 3
  • Shielding: With shielding
  • Rated voltage (side A | side B): 60V
  • Material contacts (side A | side B): Metal, CuZn, gold-plated
  • Material contact carrier (page A | page B): Plastic, TPU, BK
  • Material over-throw (side A | side B): Metal, CuZn, nickel-plated
  • Number of pins (page A | page B): 5
  • Current rating per pin (at 40°C) (side A | side B): 4 A.
  • Output (side A | side B): Socket, M12;plug, M12
  • Coding (page A | page B): A.
Type

Y-WAKS5-WASS5-WAKS5

Product type

Sensor/actuator splitter/adapter

Connector type

Adapter

Connector standard

Sensor connector

Connection side A

M12 socket, straight

Connection side B

M12 plug, straight

No. of pins

5

Nominal voltage

60 V

Nominal current

4 A

Nominal current - rounded value

4 A

Connection

M12 socket

Coding

A

Contact material

CuZn

Features

Shielded

Min. temperature

-30 °C

Max. temperature

90 °C

Manufacturer part #

8057723

Content

1 pc(s)

Documents & Downloads

Datasheet

Datasheet 3553457 Escha 8057723 Sensor/actuator splitter/adapter Adapter No. of pins (RJ): 5 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3553457 Escha 8057723 Sensor/actuator splitter/adapter Adapter No. of pins (RJ): 5 1 pc(s)

Description

Escha standard connection technology stands for variety, quality and reliability in the protection classes IP67, IP68 and IP69. Thanks to different designs, codes and a variety of cable qualities, you will find the right solution for every application. Whether M8, M12 or M23 round connectors, RJ45 or solenoid connectors – all products come in many cable lengths. Practical T and Y-distributor, panel-mounted plug, adapter and I/O-modules enable a flexible wiring structure.

This text is machine translated.
