Escha 8058558 Sensor/actuator cable M12 10.0 m No. of pins (RJ): 4 1 pc(s)
EAN:
Part number:
Item no:
Product type
Sensor/actuator cable
Connection side A

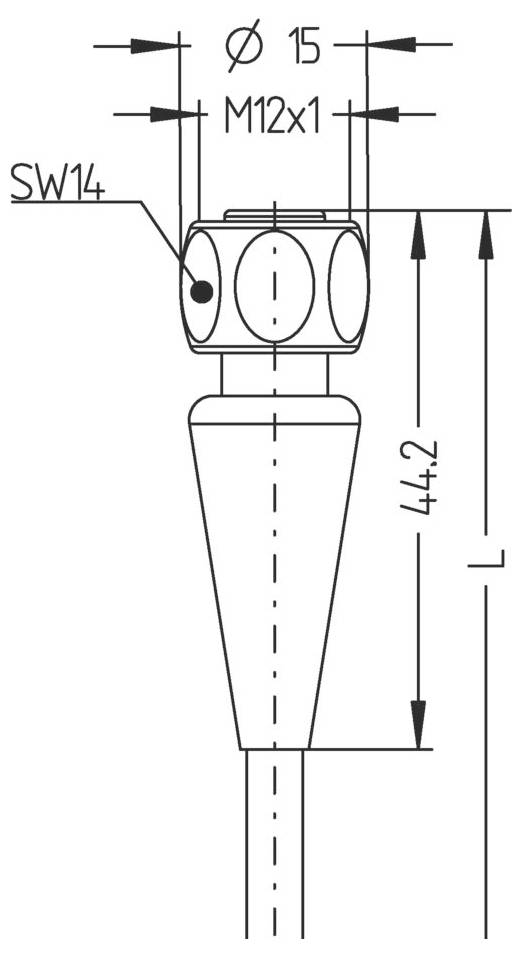

M12 socket, straight
Connection side B
Cable, open end
No. of pins
4
Cable length
10.0 m
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 28.56
3
4% = € 1.24
€ 27.32
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 28.56 / piece)
€ 28.56
plus VAT.
Only 7 Piece(s) available
Technical specifications
- Rated voltage 250V ; 30V
- Insulation resistance ≥108 Ω
- Material seal (bush): EPDM
- Material grip body: Plastic, TPE, Gy
- Material contacts: Metal, CuZn, gold-plated
- Material contact carrier: Plastic, PP, GY
- Mechanical lifespan >100 mating cycles
- IEC 61076-2-101 standard
- Pin assignment:1 BN 2 WH, 3 BU, 4 BK
- Number of pins: 4
- Protection type (mounted): IP65, IP67, IP68, IP69
- Plug connector: Socket, straight, M12
- Current load capacity per pin (at 40°C): 4.0 A
- Ambient temperature: -40°C...+105°C
- Pollution level 3
- WIRE COLORS: BN, WH, BU, BK
- Wire cross-section 4 x 0.34 mm²
- Outer diameter of sheath 4.60 mm
- Special properties: Increased thermal load-carrying capacity, halogen-free, excellent acid and alkali-resistant, hydrolysis-resistant, LABS-free, ozone resistant, recyclable RoHS compliant, drag chain capable, seawater resistant, torsion-resistant, verified resistance against P3-active, cold-flexible, heat-flexible
- Bending radius (moving) 10 x Ø-cable
- Bending radius (fixed) 5 x Ø-cable
- Halogen-free: Yes
- Line quality S3930, TPE
- Wire composition 42 x 0.10 mm
- Jacket color: GY, similar to RAL7035
- Material wire insulation: PP
- Material cable jacket: TPE
- Nominal voltage cable: ≤300 VAC
- Drag chain insert: Min. 3 MIO. Cycles at max. 10m/s² acceleration
- Temperature range (drag chain): -25°C…+60°C.
- Temperature range (moving): -25°C...+105°C.
- Temperature range (fixed): -40°C...+105°C.
- Torsion: Min. +/-180°/m
- Coding: A
- Constant resistance 5 mΩ
- End set: Open cable ends
- Material over-throw: Stainless steel, V4A
- Shielding: No.
- UL AWM style 22126
- Type
FB-WAKH4-10/S3930
- Product type
Sensor/actuator cable
- Connection side A
M12 socket, straight
- Connection side B
Cable, open end
- No. of pins
4
- Cable length
10.0 m
- Jacket material
TPE
- Nominal voltage
250 V
30 V
- Nominal current
4.0 A
- Nominal current - rounded value
4 A
- Connector cross-section (max.)
0.34 mm²
- Outside Ø
4.60 mm
- Cross-section (sensor/actuator wiring)
0.34 mm²
- Connection
Open cable ends
- Thread type connection side
M12
- Thread type (wiring and installation)
M12
- Coding
A
- Contact material
CuZn
- max. cross section
0.34 mm²
- Min. cross section
0.34 mm²
- Features
Suitable for drag chains
- Min. temperature
-40 °C
- Max. temperature
+105 °C
- Manufacturer part #
8058558
- Content
1 pc(s)
- Cable Ø
4.60 mm
- Cable Ø (max.)
4.60 mm
- Cable Ø up to
4.60 mm
- Cable Ø range
4.60 - 4.60 mm
Documents & Downloads
Datasheet
Datasheet 3553458 Escha 8058558 Sensor/actuator cable M12 10.0 m No. of pins (RJ): 4 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3553458 Escha 8058558 Sensor/actuator cable M12 10.0 m No. of pins (RJ): 4 1 pc(s)
Description
TPE-coated cable with wires with polypropylene insulation. Resistant to all common acidic and alkaline cleaning agents and disinfectants. PVC-free plastics prevent discoloration and hardening by detergents. Intended for use in the food and beverage industry. Also suitable for use in machines and plants due to the materials used. High stability and good drag chain and torsion ability.
