Name: Escha 8058866 Sensor/actuator cable M12 5.0 m No. of pins (RJ): 4 1 pc(s)
Brand: Escha
SKU: 3553459
Availability: InStock

Technical specifications

Rated voltage: 250V
Insulation resistance ≥108 Ω
Material seal (bush): FPM/FKM
Material grip body: Plastic, TPU, BK
Material contacts: Metal, CuSn, gold plated
Material contact carrier: Plastic, TPU, BK
Mechanical lifespan >100 mating cycles
IEC 61076-2-101 standard
Pin assignment:1 BN 2 WH, 3 BU, 4 BK
Number of pins: 4
Protection type (mounted): IP65, IP67, IP68
Plug connector: Socket, straight, M12
Current load capacity per pin (at 40°C): 4.0 A
Ambient temperature: -30°C...+90°C
Pollution level 3
WIRE COLORS: BN, WH, BU, BK
Wire cross-section 4 x 0.34 mm²
Outer diameter of sheath 5.20 mm
Special properties: Flame-resistant, halogen-free, hydrolysis-resistant, LABS-free, oil-resistant, Ozone-resistant, recyclable, RoHS-compliant, acid and alkali-resistant, drag-chain compatible, Sweat-resistant, seawater resistant, silicone-free, torsion-resistant, UV-resistant
Bending radius (moving) 10 x Ø-cable
Bending radius (fixed) 5 x Ø-cable
Halogen-free: Yes
Line quality: S7400, PUR, robotic, UL
Wire composition 42 x 0.10 mm
Jacket color: Og, similar to RAL2003
Material wire insulation: PP
Material cable jacket: PUR
Nominal voltage cable ≤300 V
Drag chain insert: ≥ 10 MIO. Cycles
Temperature range (drag chain): -25°C…+60°C.
Temperature range (moving): -30°C...+90°C.
Temperature range (fixed): -40°C...+90°C.
Torsion: +/-360°/m, ≥ 10 MIO. Cycles
Coding: A
Constant resistance 5 mΩ
End set: Open cable ends
Material over-throw: Metal, CuZn, nickel-plated

Type: AL-WAK4-5/S7400

Product type: Sensor/actuator cable

Connector standard: Sensor connector

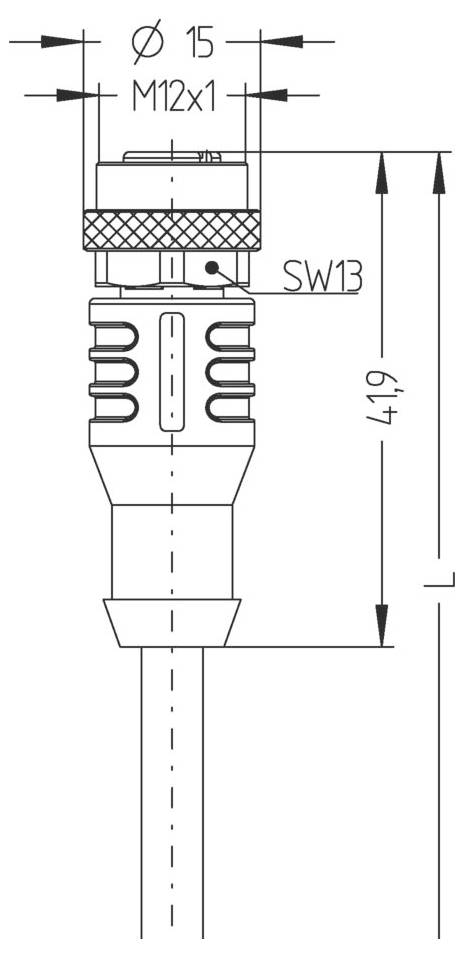

Connection side A: M12 socket, straight

Connection side B: Cable, open end

No. of pins: 4

Cable length: 5.0 m

Jacket material: PUR

Nominal voltage: 250 V

Nominal current: 4.0 A

Nominal current - rounded value: 4 A

Connector cross-section (max.): 0.34 mm²

Outside Ø: 5.20 mm

Cross-section (sensor/actuator wiring): 0.34 mm²

Connection: M12 socket

Thread type connection side: M12

Thread type (wiring and installation): M12

Coding: A

Contact material: CuSn, gold plated

Features: Halogen-free

Min. temperature: -40 °C

Max. temperature: 90 °C

Manufacturer part #: 8058866

Content: 1 pc(s)

Cable Ø: 5.20 mm

Documents & Downloads

Datasheet

Datasheet 3553459 Escha 8058866 Sensor/actuator cable M12 5.0 m No. of pins (RJ): 4 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3553459 Escha 8058866 Sensor/actuator cable M12 5.0 m No. of pins (RJ): 4 1 pc(s)

Description

Flexible, silicone and halogen-free control cable with high mechanical strength. Specially designed for use in flexible applications in the field of robotics, handling, assembly technology, and machine tools. Very good properties in the field of torsion, slow-chain use and welding spark resistance. The cable meets UL and CSA requirements (UL10493/20549;cULus).
