Name: Escha 8059111 Sensor/actuator cable 5.0 m No. of pins (RJ): 3 1 pc(s)
Brand: Escha
SKU: 3553642
Availability: BackOrder

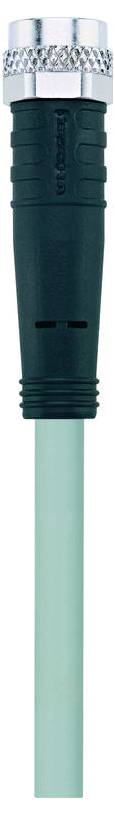

A turquoise cable with a metal and black connector end, likely used for electronic or audio equipment.

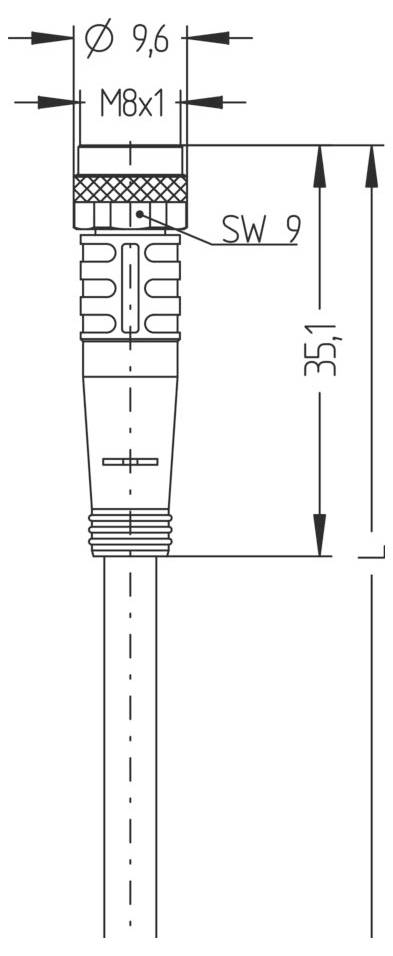

'Technical drawing of M8x1 connector, length 35.1 mm, diameter 9.6 mm, with SW 9 marking. Shows dimensions and structural details.'

1/2

Product type

Sensor/actuator cable

Connection side A

M8 socket, straight

Connection side B

Cable, open end

No. of pins

Cable length

5.0 m

Datasheet (PDF)

Part number:

Item no:

Available soon

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 15.99 / piece)

€ 15.99

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Rated voltage: 60V
Insulation resistance ≥108 Ω
Material seal (bush): FPM/FKM
Material grip body: Plastic, TPU, BK
Material contacts: Metal, CuSn, gold plated
Material contact carrier: Plastic, TPU, BK
Mechanical lifespan >100 mating cycles
IEC 61076-2-104 standard
Pin assignment:1 BN 3 BU 4 BK
Number of poles: 3
Protection type (mounted): IP65, IP67, IP68
Plug connector: Socket, straight, M8
Current load capacity per pin (at 40°C): 4.0 A
Ambient temperature: -30°C...+90°C
Pollution level 3
WIRE COLORS: BN, BU, BK
Wire cross-section 3 x 0.25 mm²
Outer diameter of sheath 4.00 mm
Special properties: Flame-resistant, halogen-free, hydrolysis-resistant, LABS-free, oil-resistant, Ozone-resistant, recyclable, RoHS-compliant, acid and alkali-resistant, drag-chain compatible, Sweat-resistant, seawater resistant, silicone-free, torsion-resistant, UV-resistant
Bending radius (moving) 10 x Ø-cable
Bending radius (fixed) 5 x Ø-cable
Halogen-free: Yes
LINE QUALITY S370GY, PUR, UL
Wire composition 32 x 0.10 mm
Jacket color: GY, similar to RAL7040
Material wire insulation: PP
Material cable jacket: PUR
Nominal voltage cable ≤300 V
Drag chain insert: 5 MIO. Cycles
Temperature range (drag chain): -25°C…+60°C.
Temperature range (moving): -30°C...+90°C.
Temperature range (fixed): -40°C...+90°C.
Torsion: +/-360°/m, ≥ 2 MIO. Cycles
Constant resistance 5 mΩ
End set: Open cable ends
Material over-throw: Metal, CuZn, nickel-plated

Type: AL-SKP3-5/S370GY

Product type: Sensor/actuator cable

Connection side A: M8 socket, straight

Connection side B: Cable, open end

No. of pins: 3

Cable length: 5.0 m

Nominal voltage: 60 V

Nominal current: 4.0 A

Nominal current - rounded value: 4 A

Contact material: CuSn, gold plated

Manufacturer part #: 8059111

Content: 1 pc(s)

Documents & Downloads

Datasheet

Datasheet 3553642 Escha 8059111 Sensor/actuator cable 5.0 m No. of pins (RJ): 3 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3553642 Escha 8059111 Sensor/actuator cable 5.0 m No. of pins (RJ): 3 1 pc(s)

Description

Flexible, silicone and halogen-free control cable with high mechanical strength. The cable is resistant to chemicals, hydrolysis and microbes. The drag chain insert is at a bending radius of min. 10xd is possible. Due to its welding spark resistance, the wire is very well suitable for flexible use in the field of robot technology, machine tools and chip-repelling production. The lines meet the requirements of UL and CSA (UL10493/20549; cULus).
