Name: Escha 8065954 Sensor/actuator connector M12 No. of pins (RJ): 4 1 pc(s)
Brand: Escha
SKU: 3553468
Availability: InStock

Escha 8065954 Sensor/actuator connector M12 No. of pins (RJ): 4 1 pc(s)-0

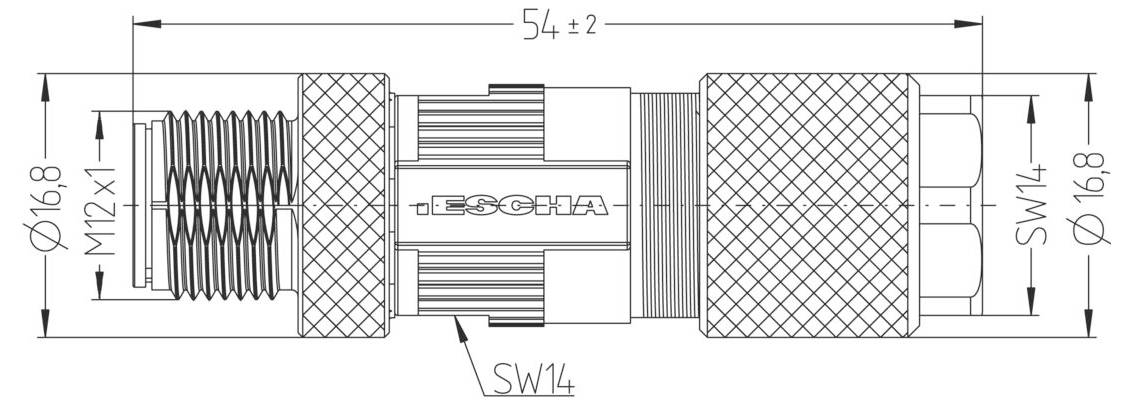

Technical drawing of a cylindrical connector, dimensions labeled. Diameter 16.8 mm, length 54 ±2 mm, threaded ends labeled M12x1 and SW14.

1/2

Product type

Sensor/actuator connector

Connector standard

RJ45

Connection side A

M12 plug, straight

No. of pins

Nominal voltage

60 V

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Thu 29 Oct

8 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 24.99 / piece)

€ 24.99

incl. VAT

Only 8 Piece(s) available

14-day return policy included

Report legal concerns

Technical specifications

Rated voltage: 60V
Insulation resistance ≥108 Ω
Material: Die-cast zinc, nickel-plated
Material contacts: Metal, CuZn, gold-plated
Material contact carrier: Plastic, PA, GN
Mechanical lifespan >100 mating cycles
IEC 61076-2-101 standard
Number of pins: 4
Protection class (mounted) IP65, IP67
Plug connector: Plug, straight, M12
Current load capacity per pin (at 40°C): 4.0 A
Ambient temperature: -40°C...+85°C
Pollution level 3
Coding: D
Constant resistance 10 mΩ
Material over-throw: Zinc die-cast, nickel-plated
Shielding: With shielding
Connection type: Cut/clamp connection
AWG 24/1 - AWG 22/1, AWG 26/7 - AWG 22/7
Cable outlet 6...9.7 mm
Transfer features: Cat5e
Shock & Vibration: Class 1, category B (DIN EN 61373)
Temperature range: Tx (-40°C...+90°C)
Wire diameter: Max. 1.6 mm
Fire protection according to DIN EN 45545-2 HL1-3

Type: IE-WASCSY4S

Product type: Sensor/actuator connector

Connector standard: RJ45

Connection side A: M12 plug, straight

No. of pins: 4

Nominal voltage: 60 V

Nominal current: 4.0 A

Nominal current - rounded value: 4 A

Connection: Cut & Clip connector

Thread type connection side: M12

Thread type (wiring and installation): M12

Coding: D

Contact material: CuZn

Features: Shielded

Min. temperature: -40 °C

Max. temperature: 90 °C

Manufacturer part #: 8065954

Content: 1 pc(s)

Cable Ø (max.): 9.7 mm

Cable Ø up to: 6 mm

Cable Ø range: 6 - 9.7 mm

Documents & Downloads

Datasheet

Datasheet 3553468 Escha 8065954 Sensor/actuator connector M12 No. of pins (RJ): 4 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3553468 Escha 8065954 Sensor/actuator connector M12 No. of pins (RJ): 4 1 pc(s)

Description

Escha standard connection technology stands for variety, quality and reliability in the protection classes IP67, IP68 and IP69. Thanks to different designs, codes and a variety of cable qualities, you will find the right solution for every application. Whether M8, M12 or M23 round connectors, RJ45 or solenoid connectors – all products come in many cable lengths. Practical T and Y-distributor, panel-mounted plug, adapter and I/O-modules enable a flexible wiring structure.

This text is machine translated.
