Name: Escha 8068908 Sensor/actuator connector M12 No. of pins (RJ): 4 1 pc(s)
Brand: Escha
SKU: 3553471
Availability: BackOrder

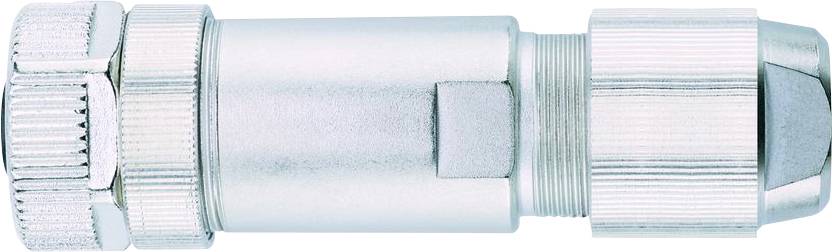

A metallic cylindrical connector with a ribbed grip section and locking mechanism, used for secure cable connections in electronic devices.

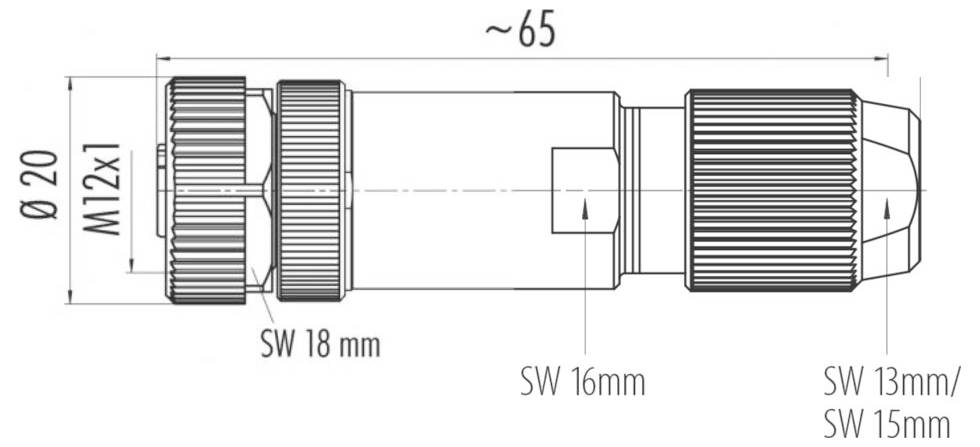

A detailed technical drawing of a cylindrical component labeled 'M12x1', approximately 65mm in length, with various diameters marked.

1/2

Product type

Sensor/actuator connector

Connector standard

Sensor connector

Connection side A

M12 socket, straight

No. of pins

Nominal voltage

250 V

Datasheet (PDF)

EAN:

Part number:

Item no:

Available soon

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 22.99 / piece)

€ 22.99

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Rated voltage: 250V
Insulation resistance ≥108 Ω
Material: Die-cast zinc, nickel-plated
Material contacts: Metal, CuZn, gold-plated
Material contact carrier: Plastic, PBT, BK
Mechanical lifespan >100 mating cycles
IEC 61076-2-101 standard
Number of pins: 4
Protection class (mounted) IP67
Plug connector: Socket, straight, M12
Current load capacity per pin (at 40°C): 4.0 A
Ambient temperature: -40°C...+85°C
Pollution level 3
Coding: A
Constant resistance: 3 mΩ
Material over-throw: Metal, CuZn
Shielding: With shielding
Connection type: Screw/terminal connection
Connection cross-section: Max. 0.75 mm²
Cable outlet 5...8 mm

Type: WAKCS4K

Product type: Sensor/actuator connector

Connector standard: Sensor connector

Connection side A: M12 socket, straight

No. of pins: 4

Nominal voltage: 250 V

Nominal current: 4.0 A

Nominal current - rounded value: 4 A

Connector cross-section (max.): 0.75 mm²

Cross-section (sensor/actuator wiring): 0.75 mm²

Connection: Screw terminal

Thread type connection side: M12

Coding: A

Contact material: CuZn

Contact surface: Gold plated

max. cross section: 0.75 mm²

Features: Shielded

Min. temperature: -40 °C

Max. temperature: 85 °C

Seal type: Screw-on

Manufacturer part #: 8068908

Content: 1 pc(s)

Cable Ø: 8 mm

Cable Ø (max.): 8 mm

Cable Ø up to: 5 mm

Cable Ø range: 5 - 8 mm

Documents & Downloads

Datasheet

Datasheet 3553471 Escha 8068908 Sensor/actuator connector M12 No. of pins (RJ): 4 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3553471 Escha 8068908 Sensor/actuator connector M12 No. of pins (RJ): 4 1 pc(s)

Description

Escha standard connection technology stands for variety, quality and reliability in the protection classes IP67, IP68 and IP69. Thanks to different designs, codes and a variety of cable qualities, you will find the right solution for every application. Whether M8, M12 or M23 round connectors, RJ45 or solenoid connectors – all products come in many cable lengths. Practical T and Y-distributor, panel-mounted plug, adapter and I/O-modules enable a flexible wiring structure.
