Name: Escha 8068909 Sensor/actuator connector M12 No. of pins (RJ): 4 1 pc(s) Piece
Brand: Escha
SKU: 3553472
Availability: BackOrder

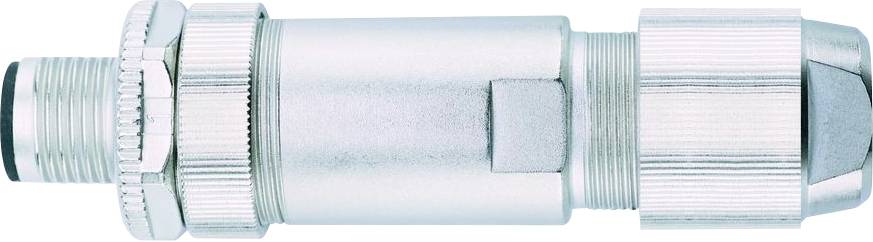

A metallic industrial sensor with threaded connectors on both ends, used for detecting and measuring physical properties in machinery.

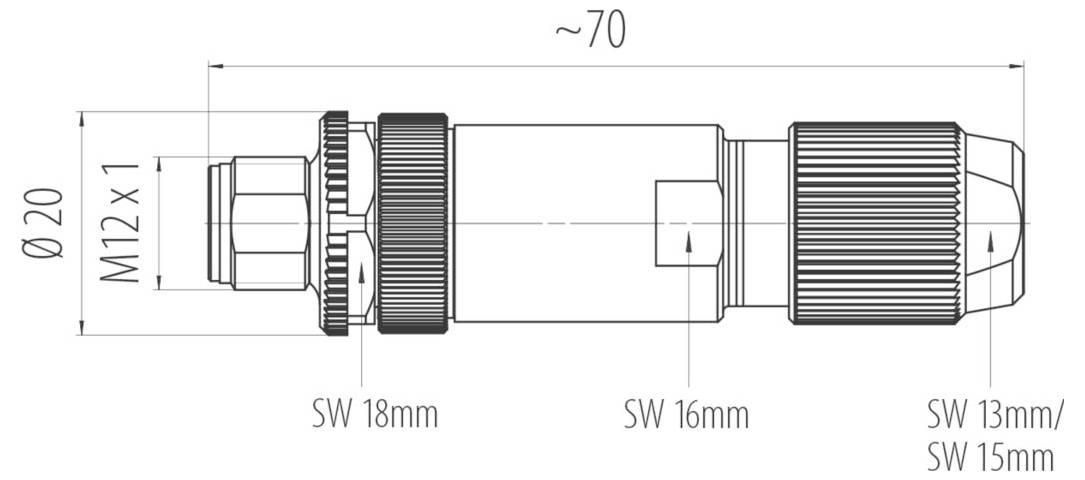

Diagram of a cylindrical connector with measurements. Diameter: 20mm. Length: ~70mm. Features sizes: SW 18mm, SW 16mm, SW 13mm/15mm. M12 x 1 threading.

1/2

Product type

Sensor/actuator connector

Connection side A

M12 plug, straight

No. of pins

Nominal voltage

250 V

Nominal current

4.0 A

Datasheet (PDF)

EAN:

Part number:

Item no:

Available soon

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 22.99 / piece)

€ 22.99

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Rated voltage: 250V
Insulation resistance ≥108 Ω
Material grip body: Metal, CuZn
Material contacts: Metal, CuZn, gold-plated
Material contact carrier: Plastic, PA, BK
Mechanical lifespan >100 mating cycles
IEC 61076-2-101 standard
Number of pins: 4
Protection class (mounted) IP67
Plug connector: Plug, straight, M12
Current load capacity per pin (at 40°C): 4.0 A
Ambient temperature: -40°C...+85°C
Pollution level 3
Coding: A
Constant resistance: 3 mΩ
Material over-throw: Metal, CuZn
Shielding: With shielding
Connection type: Screw/terminal connection
Connection cross-section: Max. 0.75 mm²
Cable outlet 5...8 mm

Packaging type: Piece

Type: WASCS4K

Product type: Sensor/actuator connector

Connection side A: M12 plug, straight

No. of pins: 4

Nominal voltage: 250 V

Nominal current: 4.0 A

Nominal current - rounded value: 4 A

Connector cross-section (max.): 0.75 mm²

Cross-section (sensor/actuator wiring): 0.75 mm²

Connection: Screw terminal

Thread type connection side: M12

Thread type (wiring and installation): M12

Coding: A

Contact material: CuZn

max. cross section: 0.75 mm²

Features: Shielded

Min. temperature: -40 °C

Max. temperature: 85 °C

Seal type: Screw-on

Manufacturer part #: 8068909

Content: 1 pc(s)

Cable Ø (max.): 8 mm

Cable Ø up to: 5 mm

Cable Ø range: 5 - 8 mm
