Name: Escha 8069793 Wall feedthrough No. of pins (RJ): 4, 8 1 pc(s)
Brand: Escha
SKU: 3553498
Availability: InStock

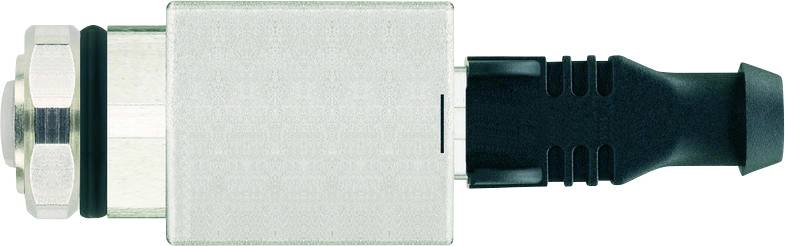

Escha 8069793 Wall feedthrough No. of pins (RJ): 4, 8 1 pc(s)-0

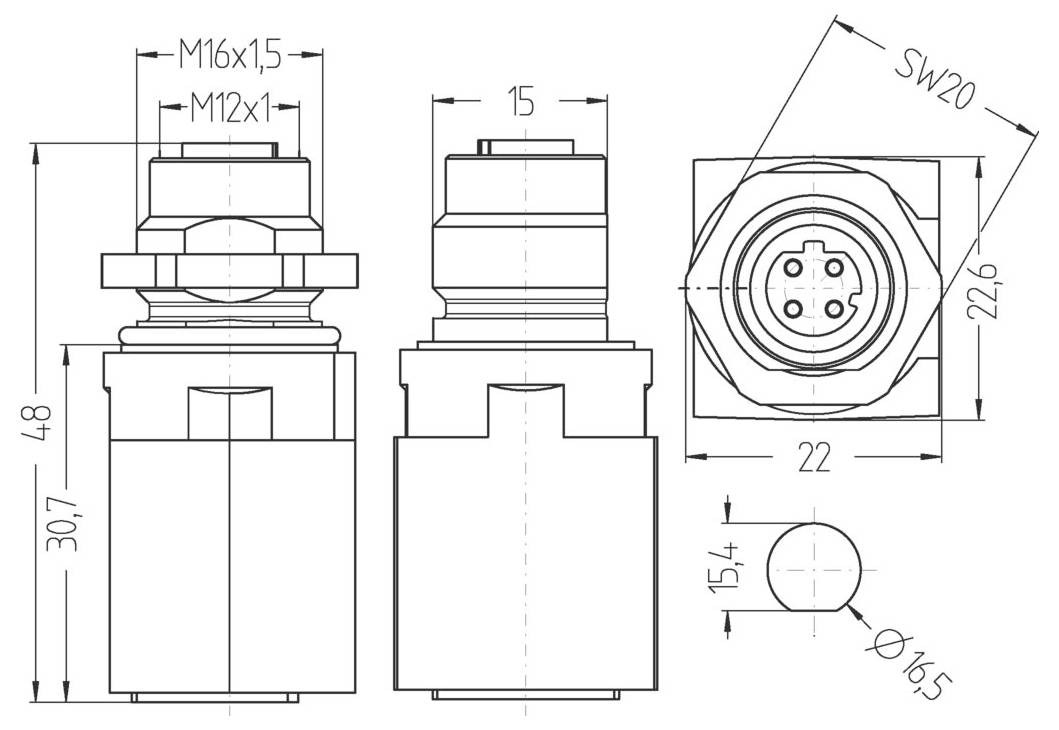

Technical drawing of a sensor connector, showing three views with dimensions. Includes M12x1 and M16x15 threads, with a hexagonal nut labeled SW20.

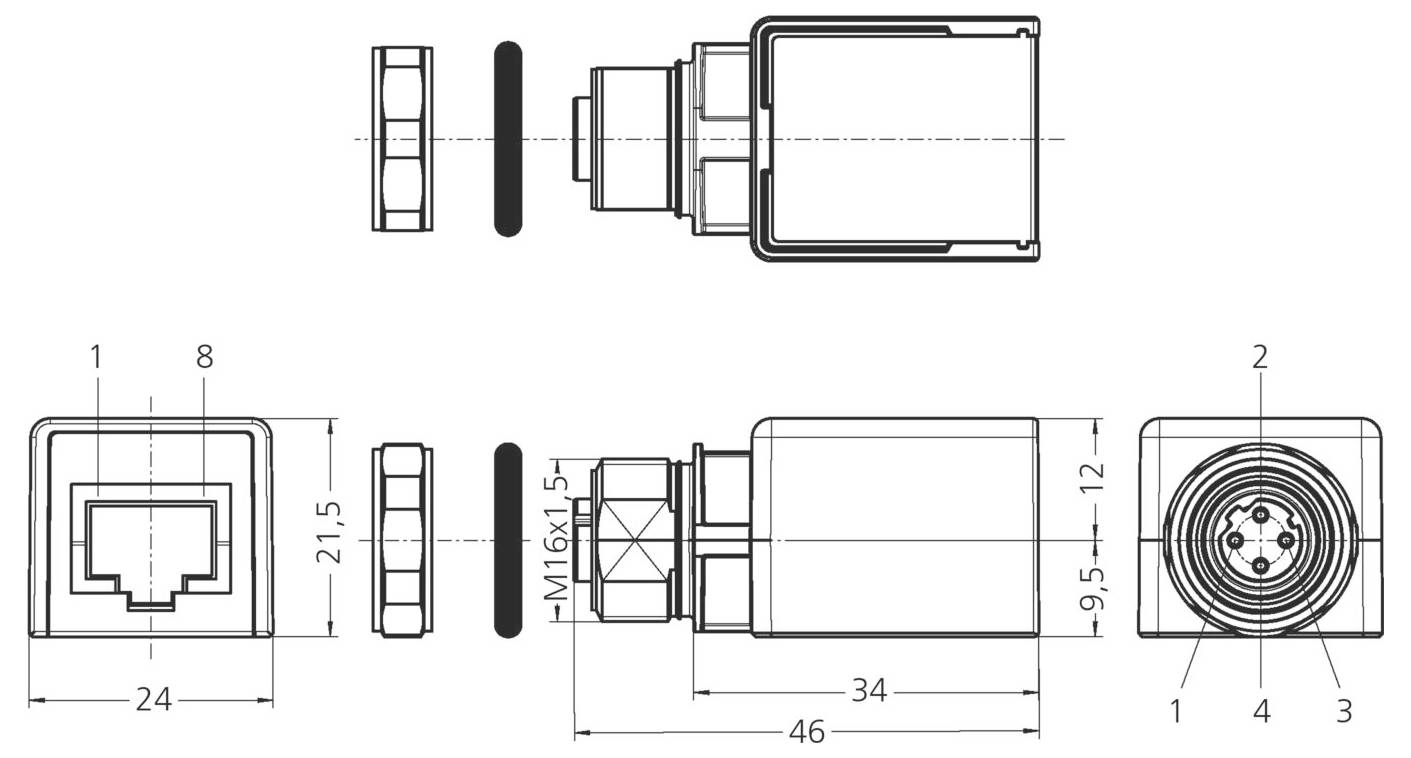

'Technical drawing showing dimensions of a connector with multiple views. Key measurements include 46 mm length, 34 mm width, and M16 x 1.5 threading.'

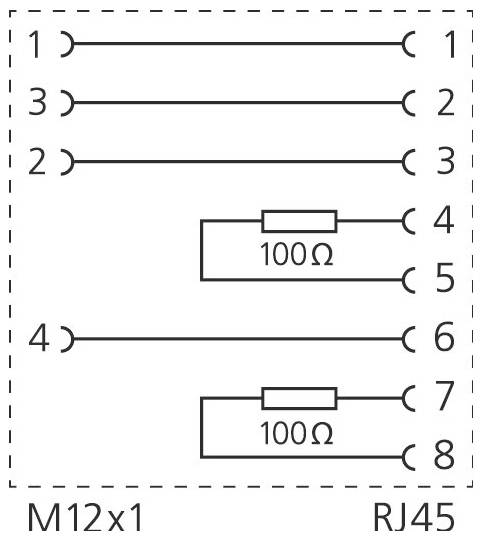

Wiring diagram showing an M12x1 to RJ45 connection. Pins 4 and 5, 7 and 8 include a 100Ω resistor each.

1/4

Product type

Wall feedthrough

Connection side A

M12 socket, straight

Connection side B

RJ45 socket

No. of pins

Nominal voltage

50 V DC/AC

Datasheet (PDF)

Part number:

Item no:

Fast track dispatch on Thu 29 Oct

9 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 49.99 / piece)

€ 49.99

incl. VAT

Only 9 Piece(s) available

14-day return policy included

Report legal concerns

Technical specifications

Protection class (mounted) IP20 (RJ45)
Coding: D
Rated voltage (side A | side B): 50VAC/DC
Insulation resistance (side A | side B): ≥108 Ω
Connector (side A | side B): Jack, straight, M12;jack, straight, RJ45
Current rating per pin (at 40°C) (side A | side B): 0.2 A.
Ambient temperature (page A | page B): -25°C...+85°C.
Pollution level (page A | page B): 2
Shielding (side A | side B): With shielding
Transfer properties (page A | page B): Cat5e
Wall thickness range (Δh): 1.0...2.5 mm
Assignment (page A | page B): ;T568B
Material contacts (side A | side B): Metal, CuZn, gold plated;metal, CuSn, gold plated
Material contact carrier (page A | page B): Plastic, PA, GY;plastic, PA, BK
Mechanical life (page A | page B): >100 mating cycles;>750 mating cycles
Standards (page A | page B): IEC 61076-2-101;IEC 60603-7-51
Number of pins (page A | page B): 4;8
Shock & Vibration: Class 1, Category B (DIN EN 61373), does not apply to RJ45
TEMPERATURE RANGE: T3 (-25°C...+85°C)

Type: IE-FKFDSY4-RJ45KS

Product type: Wall feedthrough

Connection side A: M12 socket, straight

Connection side B: RJ45 socket

No. of pins: 4
8

Nominal voltage: 50 V DC/AC

Nominal current: 0.2 A

Nominal current - rounded value: 200 mA

Coding: D

Contact material: CuZn

Manufacturer part #: 8069793

Content: 1 pc(s)

Documents & Downloads

Datasheet

Datasheet 3553498 Escha 8069793 Wall feedthrough No. of pins (RJ): 4, 8 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3553498 Escha 8069793 Wall feedthrough No. of pins (RJ): 4, 8 1 pc(s)

Description

Escha standard connection technology stands for variety, quality and reliability in the protection classes IP67, IP68 and IP69. Thanks to different designs, codes and a variety of cable qualities, you will find the right solution for every application. Whether M8, M12 or M23 round connectors, RJ45 or solenoid connectors – all products come in many cable lengths. Practical T and Y-distributor, panel-mounted plug, adapter and I/O-modules enable a flexible wiring structure.

This text is machine translated.
