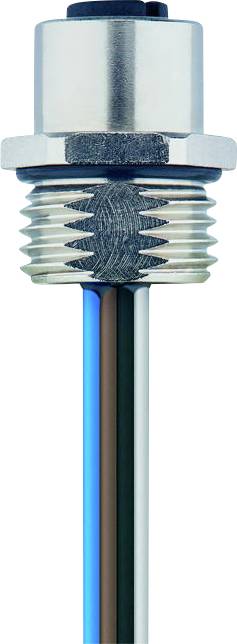

Name: Escha 8071691 Cable gland M16 Sleeve socket 0.5 m No. of pins (RJ): 5 1 pc(s) Piece
Brand: Escha
SKU: 3553480
Availability: InStock

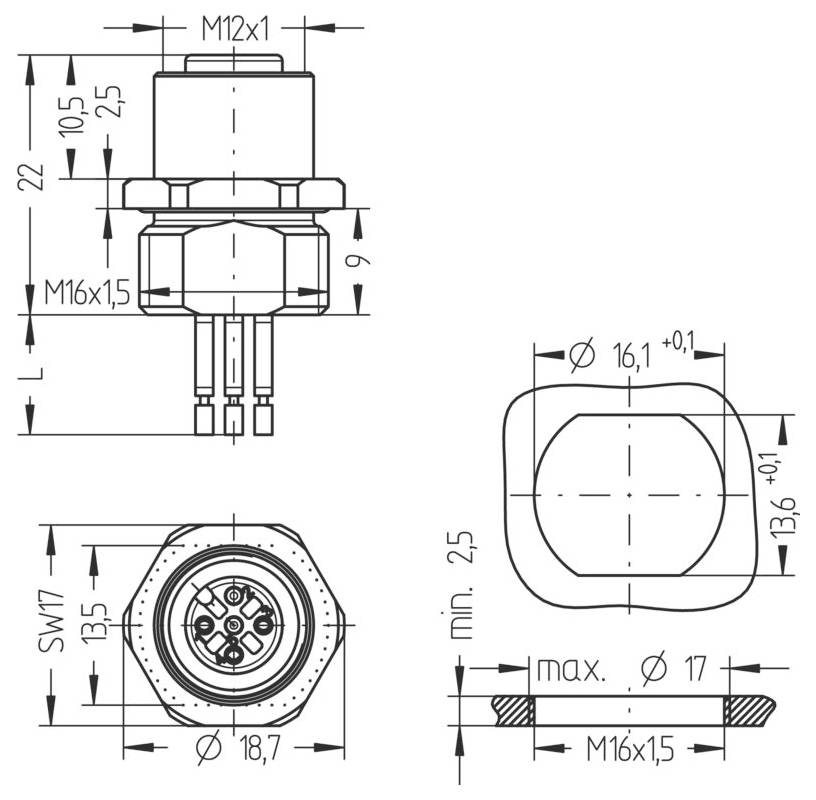

Technical specifications

Rated voltage: 60V
Insulation resistance ≥108 Ω
Material seal (bush): FPM/FKM
Material contacts: Metal, CuSn, gold plated
Material contact carrier: Plastic, PA GF, BK
Mechanical lifespan >100 mating cycles
IEC 61076-2-101 standard
Pin assignment:1 BN, 2 WH, 3 BU, 4 BK, 5 Gy
Number of pins: 5
Protection type (mounted): IP65, IP67, IP68
Plug connector: Socket, straight, M12
Current load capacity per pin (at 40°C): 4.0 A
Ambient temperature: -30°C...+90°C
Pollution level 3
WIRE COLORS: BN, WH, BU, BK, GY
Wire cross-section 5 x 0.34 mm²
Material wire insulation: PVC
Coding: A
Connection type: Wire connection
Fixing thread: M16x1.5
Replaces: 8027519
Wire length 0.5 m.
Material flange housing: Metal, CuZn, nickel-plated
Material outer seal: EPDM
Mounting direction: Front panel fitting (without fixing nut)

Packaging type: Piece

Type: AL-FVM12KUA4.5-0,5/M16

Product type: Cable gland

Connector type: Sleeve socket

Connection side A: M12 socket, straight

Connection side B: Cable, open end

No. of pins: 5

Cable length: 0.5 m

Nominal voltage: 60 V

Nominal current: 4.0 A

Nominal current - rounded value: 4 A

Connector cross-section (max.): 0.34 mm²

Cross-section (sensor/actuator wiring): 0.34 mm²

Connection: Braid

Thread type connection side: M16

Thread type (wiring and installation): M16

Coding: A

Contact material: CuSn, gold plated

Sensor/actuator connectivity fittings: Front panel fitting

Min. temperature: -30 °C

Max. temperature: 90 °C

Manufacturer part #: 8071691

Content: 1 pc(s)

Documents & Downloads

Datasheet

Datasheet 3553480 Escha 8071691 Cable gland M16 Sleeve socket 0.5 m No. of pins (RJ): 5 1 pc(s) Piece

User & Safety Instructions

User & Safety Instructions 3553480 Escha 8071691 Cable gland M16 Sleeve socket 0.5 m No. of pins (RJ): 5 1 pc(s) Piece

Description

Escha standard connection technology stands for variety, quality and reliability in the protection classes IP67, IP68 and IP69. Thanks to different designs, codes and a variety of cable qualities, you will find the right solution for every application. Whether M8, M12 or M23 round connectors, RJ45 or solenoid connectors – all products come in many cable lengths. Practical T and Y-distributor, panel-mounted plug, adapter and I/O-modules enable a flexible wiring structure.
