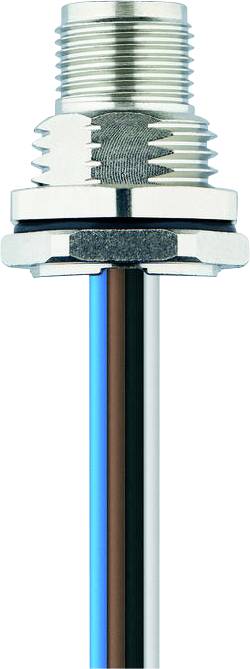

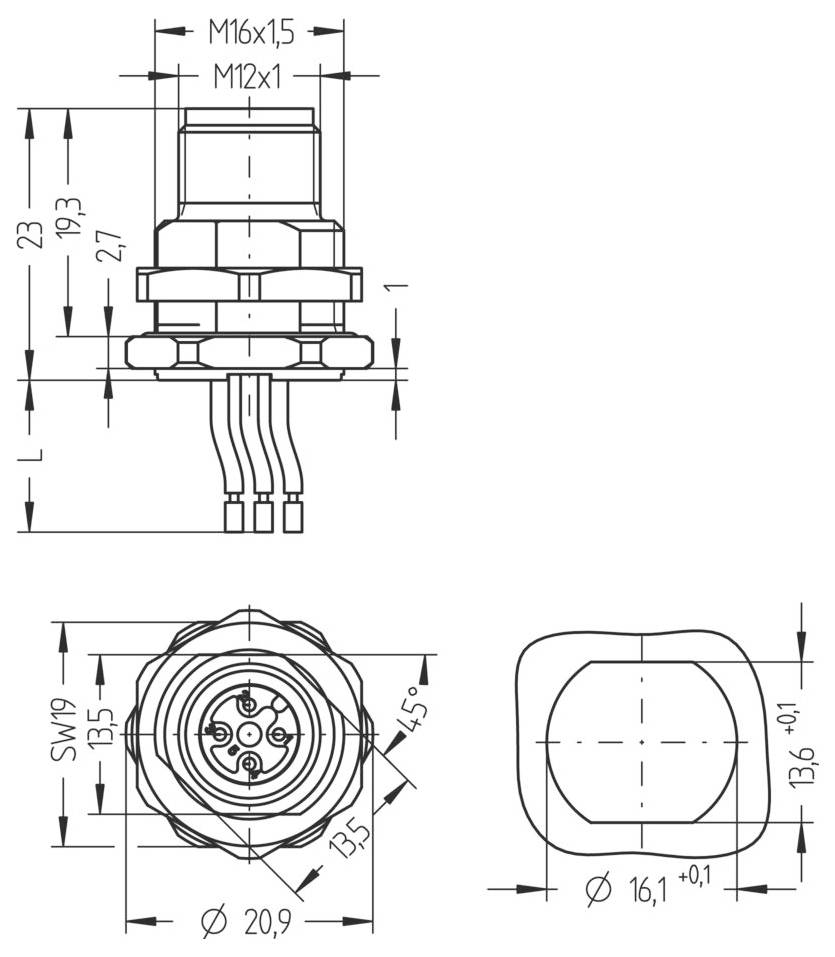

Name: Escha 8071794 Sleeve plug M12 Sleeve plug 0.5 m No. of pins (RJ): 5 1 pc(s) Piece
Brand: Escha
SKU: 3553481
Availability: BackOrder

Technical specifications

Rated voltage: 60V
Insulation resistance ≥108 Ω
Material contacts: Metal, CuSn, gold plated
Material contact carrier: Plastic, PA GF, BK
Mechanical lifespan >100 mating cycles
IEC 61076-2-101 standard
Pin assignment:1 BN, 2 WH, 3 BU, 4 BK, 5 Gy
Number of pins: 5
Protection type (mounted): IP65, IP67, IP68
Plug connector: Plug, straight, M12
Current load capacity per pin (at 40°C): 4.0 A
Ambient temperature: -30°C...+90°C
Pollution level 3
WIRE COLORS: BN, WH, BU, BK, GY
Wire cross-section 5 x 0.34 mm²
Material wire insulation: PVC
Coding: A
Connection type: Wire connection
Fixing thread: M16x1.5
Replaces: 8027505
Wire length 0.5 m.
Material flange housing: Metal, CuZn, nickel-plated
Material outer seal: NBR
Mounting direction: Rear panel fitting (incl. fixing nut)
Key width for mounting nut SW19

Packaging type: Piece

Type: AL-FHM12SUA4.5-0,5/M16

Product type: Sleeve plug

Connector type: Sleeve plug

Connection side A: M12 plug, straight

Connection side B: Cable, open end

No. of pins: 5

Cable length: 0.5 m

Jacket material: PVC

Nominal voltage: 60 V

Nominal current: 4.0 A

Nominal current - rounded value: 4 A

Connector cross-section (max.): 0.34 mm²

Cross-section (sensor/actuator wiring): 0.34 mm²

Connection: Braid

Thread type connection side: M12

Thread type (wiring and installation): M16

Coding: A

Contact material: CuSn, gold plated

Sensor/actuator connectivity fittings: Rear panel fitting

max. cross section: 0.34 mm²

Min. temperature: -30 °C

Max. temperature: 90 °C

Seal type: Screw-on

Manufacturer part #: 8071794

Content: 1 pc(s)
