Name: Escha 8075821 Sensor/actuator splitter/adapter M12 Adapter No. of pins (RJ): 4+PE 1 pc(s)
Brand: Escha
SKU: 3553484
Availability: BackOrder

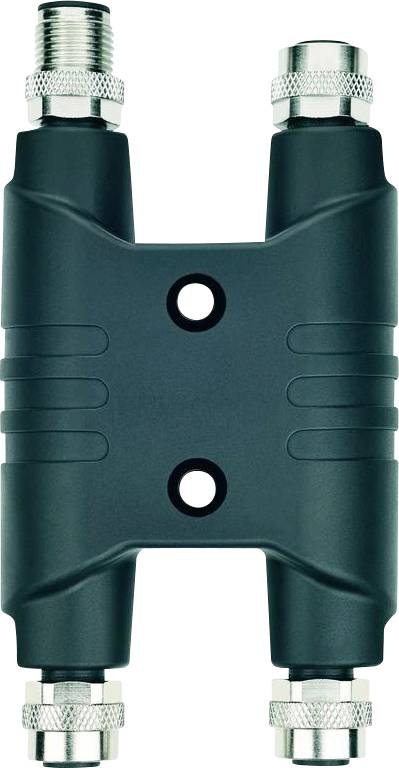

'Coaxial cable splitter with four connections and a black, rectangular body, used for distributing signals from a single input to multiple outputs.'

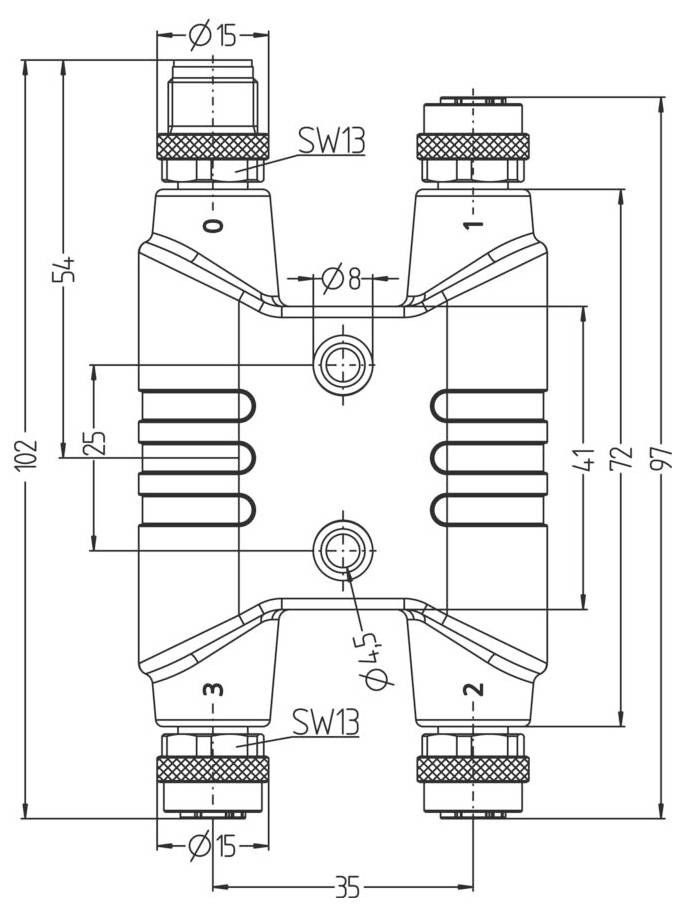

Technical diagram of a metal connector with measurements labeled. Dimensions include overall height of 102mm, width of 54mm, and various diameters.

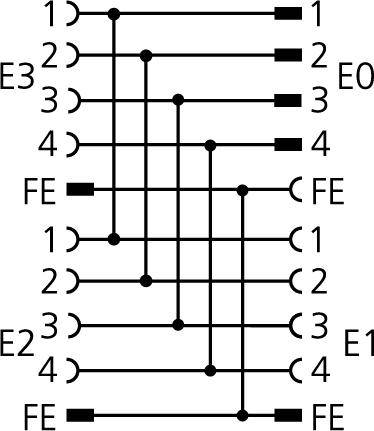

'4x4 Crossbar Switch Diagram' showing connections between inputs E0, E1, E2, E3 and outputs FE, each with four lines labeled 1 to 4.

1/3

Product type

Sensor/actuator splitter/adapter

Connector type

Adapter

Connection side A

M12 plug, straight

Connection side B

M12 socket, straight

No. of pins

4+PE

Datasheet (PDF)

EAN:

Part number:

Item no:

Available soon

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 95.99 / piece)

€ 95.99

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Insulation resistance ≥108 Ω
Material seal (bush): FPM/FKM
Material grip body: Plastic, TPU, BK
Mechanical lifespan >100 mating cycles
IEC 61076-2-111 standard
Protection type (mounted): IP65, IP67, IP68
Ambient temperature: -30°C...+90°C
Pollution level 3
Rated voltage (page A | page B): 63VDC
Material contacts (side A | side B): Metal, CuZn, gold-plated
Material contact carrier (page A | page B): Plastic, PA, BK
Material over-throw (side A | side B): Metal, CuZn, nickel-plated
Number of pins (page A | page B): 4+FE
Current rating per pin (at 40°C) (side A | side B): 16 A.
Output (side A | side B): Plug, M12;socket, M12
Coding (page A | page B): L

Type: PL-4HM12-S5-3K5

Product type: Sensor/actuator splitter/adapter

Connector type: Adapter

Connection side A: M12 plug, straight

Connection side B: M12 socket, straight

No. of pins: 4+PE

Nominal voltage: 63 V DC

Nominal current: 16 A

Nominal current - rounded value: 16 A

Thread type connection side: M12

Thread type (wiring and installation): M12

Coding: L

Contact material: CuZn

Contact surface: Gold plated

Min. temperature: -30 °C

Max. temperature: 90 °C

Manufacturer part #: 8075821

Content: 1 pc(s)

Documents & Downloads

Datasheet

Datasheet 3553484 Escha 8075821 Sensor/actuator splitter/adapter M12 Adapter No. of pins (RJ): 4+PE 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3553484 Escha 8075821 Sensor/actuator splitter/adapter M12 Adapter No. of pins (RJ): 4+PE 1 pc(s)

Description

Escha standard connection technology stands for variety, quality and reliability in the protection classes IP67, IP68 and IP69. Thanks to different designs, codes and a variety of cable qualities, you will find the right solution for every application. Whether M8, M12 or M23 round connectors, RJ45 or solenoid connectors – all products come in many cable lengths. Practical T and Y-distributor, panel-mounted plug, adapter and I/O-modules enable a flexible wiring structure.

This text is machine translated.
