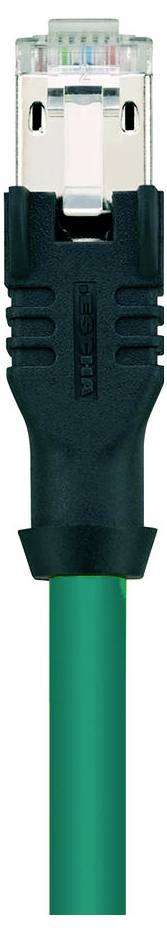

Escha 8077466 Cable connection 1.0 m No. of pins (RJ): 8 1 pc(s)
EAN:
Part number:
Item no:
Product type
Cable connection
Connector standard
RJ45
Connection side A
RJ45 plug
Connection side B
RJ45 plug
No. of pins
8
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 12.60
3
6% = € 0.70
€ 11.90
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 12.60 / piece)
€ 12.60
plus VAT.
Technical specifications
- WIRE COLORS: WHOG/OG; WHGN/GN; WHBN/BN; WHBU/BU
- Core cross-section 4 x 2 x AWG27
- Outer diameter of sheath 6.00 mm
- Special properties: Flame-resistant, low smoke emission, halogen-free, high flexibility, no corrosive gases, RoHS compliant
- Bending radius (fixed) 5 x Ø-cable
- Halogen-free: Yes
- Line quality S620, UL
- Wire composition 7 x 0.14 mm
- Sheath color: Turquoise green, similar to RAL6016
- Material wire insulation: PE
- Material: Halogen-free Flame-retardant compound (HFC)
- Nominal voltage cable 125 V
- Temperature range (fixed): -20°C...+60°C.
- Shielding: Yes
- Rated voltage (side A | side B): 60V
- Insulation resistance (side A | side B): ≥108 Ω
- Material of grip body (side A | side B): Plastic, TPE, BK
- Material contacts (side A | side B): Metal, CuZn, gold-plated
- Material Contact carrier (side A | side B): Plastic
- Mechanical life (page A | page B): >1000 mating cycles
- Standards (page A | page B): IEC 60603-7-51
- Pin assignment (page A | page B): 1 WH/og, 2 og; 3 WH/GN, 4 BU; 5 WH/BU, 6 GN; 7 WH/BN, 8 BN
- Number of pins (page A | page B): 8
- Protection (mounted) (page A | page B): IP20
- Current rating per pin (at 40°C) (side A | side B): 1.0 A.
- Ambient temperature (page A | page B): -40°C...+70°C.
- Pollution level (page A | page B): 1
- Assignment (page A | page B): T568B
- Material shield housing (side A | side B): Metal, CuZn, nickel-plated
- Shielding (side A | side B): With shielding
- Connector (side A | side B): Male, straight, RJ45
- Transfer properties (page A | page B): Cat6A
- Test voltage lead 1.0
- Transmission features: Cat7
- Type
IE-RJ45SS8.002-1-IE-RJ45SS8.002/S620GN
- Product type
Cable connection
- Connector standard
RJ45
- Connection side A
RJ45 plug
- Connection side B
RJ45 plug
- No. of pins
8
- Cable length
1.0 m
- Jacket material
FRNC
- Nominal voltage
60 V
- Nominal current
1.0 A
- Nominal current - rounded value
1 A
- Outside Ø
6.00 mm
- Cross-section (sensor/actuator wiring)
0.1077 mm²
- Connection
RJ45
- Contact material
CuZn
- Features
Halogen-free
- Min. temperature
-40 °C
- Max. temperature
70 °C
- Manufacturer part #
8077466
- Content
1 pc(s)
- Cable Ø
6.00 mm
Documents & Downloads
Datasheet
Datasheet 3553485 Escha 8077466 Cable connection 1.0 m No. of pins (RJ): 8 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3553485 Escha 8077466 Cable connection 1.0 m No. of pins (RJ): 8 1 pc(s)
Description
High quality, shielded S/FTP PiMF data cable, specified up to 600 MHz, with halogen-free outer sheath. The cable fulfills the transmission characteristics of category 7 according to EN 50288-4-2 and IEC 61156-5. With its slim structure and possible bending radii, this flexible AWG27/7 cable is best suitable for use in structured cabling according to ISO/IEC 11801 and EN 50173 in buildings, server cabinets and switchboards. Ideal solution for all applications in the class EA, according to IEEE802.3 an, VoIP and PoE. The cable exceeds the requirements for compliance with the interference emission class B according to EN 55022, as well as the noise immunity according to EN 55024. The cable is available in gray, yellow, blue, red, green and black. The cables meet the requirements of UL 444 Communication Cable CMG.
