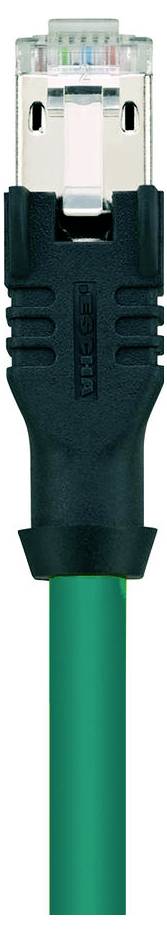

Name: Escha 8077467 Cable connection 2.0 m No. of pins (RJ): 8 1 pc(s)
Brand: Escha
SKU: 3553486
Availability: BackOrder

Technical specifications

WIRE COLORS: WHOG/OG; WHGN/GN; WHBN/BN; WHBU/BU
Core cross-section 4 x 2 x AWG27
Outer diameter of sheath 6.00 mm
Special properties: Flame-resistant, low smoke emission, halogen-free, high flexibility, no corrosive gases, RoHS compliant
Bending radius (fixed) 5 x Ø-cable
Halogen-free: Yes
Line quality S620, UL
Wire composition 7 x 0.14 mm
Sheath color: Turquoise green, similar to RAL6016
Material wire insulation: PE
Material: Halogen-free Flame-retardant compound (HFC)
Nominal voltage cable 125 V
Temperature range (fixed): -20°C...+60°C.
Shielding: Yes
Rated voltage (side A | side B): 60V
Insulation resistance (side A | side B): ≥108 Ω
Material of grip body (side A | side B): Plastic, TPE, BK
Material contacts (side A | side B): Metal, CuZn, gold-plated
Material Contact carrier (side A | side B): Plastic
Mechanical life (page A | page B): >1000 mating cycles
Standards (page A | page B): IEC 60603-7-51
Pin assignment (page A | page B): 1 WH/og, 2 og; 3 WH/GN, 4 BU; 5 WH/BU, 6 GN; 7 WH/BN, 8 BN
Number of pins (page A | page B): 8
Protection (mounted) (page A | page B): IP20
Current rating per pin (at 40°C) (side A | side B): 1.0 A.
Ambient temperature (page A | page B): -40°C...+70°C.
Pollution level (page A | page B): 1
Assignment (page A | page B): T568B
Material shield housing (side A | side B): Metal, CuZn, nickel-plated
Shielding (side A | side B): With shielding
Connector (side A | side B): Male, straight, RJ45
Transfer properties (page A | page B): Cat6A
Test voltage lead 1.0
Transmission features: Cat7

Type: IE-RJ45SS8.002-2-IE-RJ45SS8.002/S620GN

Product type: Cable connection

Connector standard: RJ45

Connection side A: RJ45 plug

Connection side B: RJ45 plug

No. of pins: 8

Cable length: 2.0 m

Nominal voltage: 60 V

Nominal current: 1.0 A

Nominal current - rounded value: 1 A

Outside Ø: 6.00 mm

Contact material: CuZn

Features: Halogen-free

Min. temperature: -20 °C

Max. temperature: 60 °C

Manufacturer part #: 8077467

Content: 1 pc(s)

Cable Ø: 6.00 mm

Cable Ø (max.): 6.00 mm

Cable Ø range: 6.00 mm (max)

Documents & Downloads

Datasheet

Datasheet 3553486 Escha 8077467 Cable connection 2.0 m No. of pins (RJ): 8 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3553486 Escha 8077467 Cable connection 2.0 m No. of pins (RJ): 8 1 pc(s)

Description

High quality, shielded S/FTP PiMF data cable, specified up to 600 MHz, with halogen-free outer sheath. The cable fulfills the transmission characteristics of category 7 according to EN 50288-4-2 and IEC 61156-5. With its slim structure and possible bending radii, this flexible AWG27/7 cable is best suitable for use in structured cabling according to ISO/IEC 11801 and EN 50173 in buildings, server cabinets and switchboards. Ideal solution for all applications in the class EA, according to IEEE802.3 an, VoIP and PoE. The cable exceeds the requirements for compliance with the interference emission class B according to EN 55022, as well as the noise immunity according to EN 55024. The cable is available in gray, yellow, blue, red, green and black. The cables meet the requirements of UL 444 Communication Cable CMG.

This text is machine translated.

Description

High quality, shielded S/FTP PiMF data cable, specified up to 600 MHz, with halogen-free outer sheath. The cable fulfills the transmission characteristics of category 7 according to EN 50288-4-2 and IEC 61156-5. With its slim structure and possible bending radii, this flexible AWG27/7 cable is best suitable for use in structured cabling according to ISO/IEC 11801 and EN 50173 in buildings, server cabinets and switchboards. Ideal solution for all applications in the class EA, according to IEEE802.3 an, VoIP and PoE. The cable exceeds the requirements for compliance with the interference emission class B according to EN 55022, as well as the noise immunity according to EN 55024. The cable is available in gray, yellow, blue, red, green and black. The cables meet the requirements of UL 444 Communication Cable CMG.

This text is machine translated.
