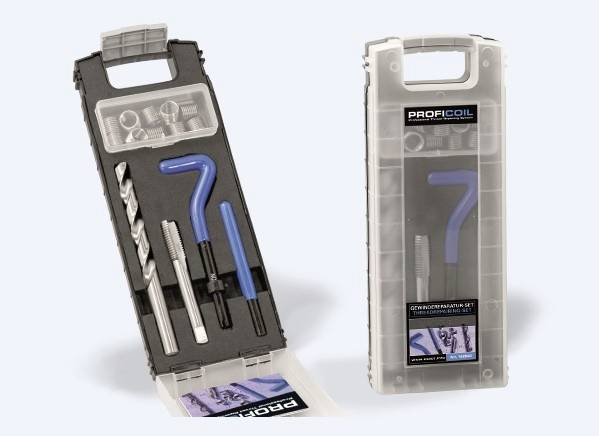

Eventus by Exact 40321 Thread repair kit 19-piece Mf16
EAN:
Part number:
Item no:
Number
Total (€ 48.73 / piece)
€ 48.73
plus VAT.
14-day return policy included
Technical specifications
- Twist drill bit diameter: 23.90 mm
- thread drill bit diameter 23.90 mm
- Installation Tool Diameter: 12.5 mm
- Tang Ø: 12 mm
- Product type
Thread repair kit
- Thread size
Mf16
- Material
HSS
- Content
1 Set
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1224560 Eventus by Exact 40321 Thread repair kit 19-piece Mf16
Information
Information 1224560 Eventus by Exact 40321 Thread repair kit 19-piece Mf16
Description
Application
1. Damaged thread with the drill bit drill
2. With the tap the recording thread in the drilled hole
cut up
3. The Matching threaded inserts in threaded direction with the drivers
screw
4. The drivers and remove the attachment pins
with the and remove the tang
after the end of the operations is through the narrow tolerances as well as
the formation of the thread inserts a thread has emerged, which is often better
and stronger than the original thread.
1. Damaged thread with the drill bit drill
2. With the tap the recording thread in the drilled hole
cut up
3. The Matching threaded inserts in threaded direction with the drivers
screw
4. The drivers and remove the attachment pins
with the and remove the tang
after the end of the operations is through the narrow tolerances as well as
the formation of the thread inserts a thread has emerged, which is often better
and stronger than the original thread.
Scope of delivery
- 15 thread inserts (5 inserts: Height = 1 x Ø, 5 inserts: Height = 1.5 x Ø, 5 inserts: Height = 2.5 x Ø).
Hints
This text is machine translated.
