Extech SD200 Temperature Data Logger
EAN:
Part number:
Item no:
Number
Total (€ 301.68 / piece)
€ 301.68
plus VAT.
Only 2 Piece(s) available
Highlights & Details

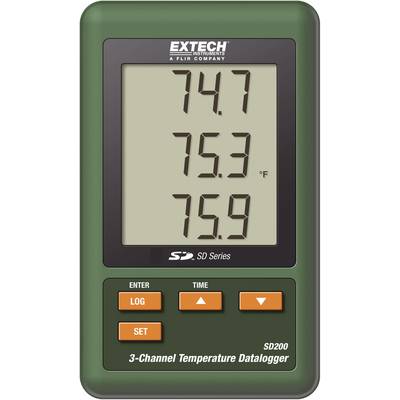

Extech SD200 Temperature Data Logger
- Triple LCD simultaneously displays 3 Type-K Temperature channels
- Datalogger stores readings on an SD card in Excel® format for easy transfer to a PC
- Selectable data sampling rate: 5, 10, 30, 60, 120, 300, 600 seconds or Auto
- Complete with six AAA batteries, 2G SD card, univeral AC Adaptor, three Type-K bead wire temperature probes and mounting bracket
Technical specifications
- Displaying sampling: Approximately 1 seconds
- Operating temperature: 0 to 50 ° C.
- Recording sample rate: 5/10/30/60/120/300/600 seconds or automatically
- Temperature resolution
0.1 °C
- Power supply (details)
6 x AAA (UM4) or high-performance alkaline battery 1.5V or 9V AC adapter
- Dim
(L x W x H) 32 x 80 x 132 mm
- Weight
199 g
- Depth
32 mm
- Height
132 mm
- Length
32 mm
- Width
80 mm
- Temperature reading range
-100 up to 1300 °C
Manufacturer's standards (no certificate)
- Unit of measurement
Temperature
- Type
SD200
- Sample rate (max.)
1 s
- Sample rate (min.)
1 s
- Temperature reading range (max.)
1300 °C
- Temperature reading range (min.)
-100 °C
- Temperature
-100 to 1300°C (-58 to 2372°F)
- Reading range
Temperature
- Power supply
AAA batteries (6x)
PSU
- Product type
Temperature data logger
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 123726 Extech SD200 Temperature Data Logger
Description
The Extech SD 200 3-channel recording thermometer shows and stores temperature measurements from one to three Type K temperature channels. The measured data are stored on an SD card, the recording is done with date / time signature and the data is stored on an SD card in Excel ® format for easy transfer to a computer. Extech SD 200 3-channel recording thermometer is fully tested and calibrated.
Scope of delivery
- 6x (AAA) battery
- 2G SD card
- Universal AC Adapter
- 3 x temperature sensors
- Mounting bracket
