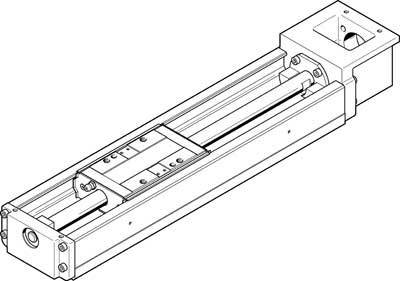

FESTO Electric slider 562792 EGSK-46-400-20P Stroke length: 400 mm 1 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Sales and shipping:
Conrad ElectronicTerms & Conditions
Total (€ 2,699.00 / piece)
€ 2,699.00
incl. VAT
Only available for business customers
14-day return policy includedHighlights & Details
Technical specifications
- Protection class: IP10
- Product type
Electric slider
- Stroke length
400 mm
- (Ø)
15 mm
- Manufacturer part #
562792
- Weight
10250 g
- Size
46
- Max. ambient temperature
+40 °C
- Min. ambient temperature
0 °C
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2121098 FESTO Electric slider 562792 EGSK-46-400-20P Stroke length: 400 mm 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2121098 FESTO Electric slider 562792 EGSK-46-400-20P Stroke length: 400 mm 1 pc(s)
Description
Electric slide EGSK -46-400-20P with recirculating ball bearing guide working stroke=400mm, size = 46, reversing clearance = ≤ 20 µm, spindle diameter = 15 mm, spindle pitch = 20 mm/U
