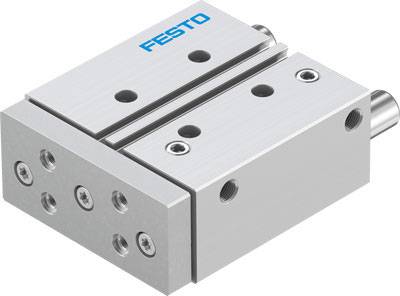

FESTO Linear drive 170851 DFM-25-50-P-A-GF Stroke length: 50 mm 1 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Sales and shipping:
Conrad ElectronicTerms & Conditions
Total (€ 395.00 / piece)
€ 395.00
incl. VAT
Only available for business customers
14-day return policy includedHighlights & Details
Linear drive DFM-25-50-P-A-GF
Technical specifications
- Operating medium
According to ISO 8573-1:2010 compressed air [7:4:4]
- Product type
Linear drive
- Stroke length
50 mm
- Max. operating pressure
10 bar
- Material (details)
Aluminum wrought alloy
- Manufacturer part #
170851
- Type
Guide cylinder DFM -25-50-P-A-GF with built-in navigation. Focus distance of the payload for yoke plate = 50 mm, Hub = 50 mm, piston diameter = 25 mm, operating mode drive unit = yoke, attenuation=P: elastic damping rings/boards on both sides
- Weight
1635 g
- Size
25
- Sealant
NBR
- Pneumatics connector
G1/8"
- Piston rod material
Steel (stainless)
- Piston rod diameter
25 mm
- Force (max.)
295 N
- Max. ambient temperature
+80 °C
- Min. ambient temperature
-20 °C
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1938242 FESTO Linear drive 170851 DFM-25-50-P-A-GF Stroke length: 50 mm 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1938242 FESTO Linear drive 170851 DFM-25-50-P-A-GF Stroke length: 50 mm 1 pc(s)
