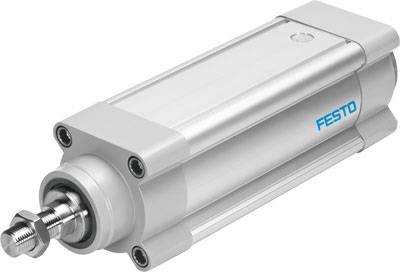

FESTO Linear actuator ESBF-BS-63-100-25P 574100 Stroke length 100 mm 1 pc(s)
EAN:
Part number:
Item no:
Speed (max.)
1.35 m/s
Stroke length
100 mm
Product type
Linear actuator
Manufacturer part #
574100
Type
ESBF-BS-63-100-25P
Datasheet (PDF)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Total (€ 2,659.00 / piece)
€ 2,659.00
incl. VAT
Only available for business customers
14-day return policy includedHighlights & Details
Linear actuator ESBF-BS-63-100-25P
Technical specifications
- Electric cylinder ESBF-BS -63-100-25P ball screw drive, electrically driven spindle the rotary motion of the motor into a linear movement of the piston rod. Working stroke=100 mm, size = 63, Hub = 100 mm, Piston Rod Thread = M16x1.5, reversing clearance = 40 µm, material cylinder tube = aluminum wrought alloy
- Manufacturer part #
574100
- Type
ESBF-BS-63-100-25P
IP40
- Size
63
- Speed (max.)
1.35 m/s
- Stroke length
100 mm
- Max. ambient temperature
60 °C
- Min. ambient temperature
0 °C
- UKCA
not relevant
- Product type
Linear actuator
Documents & Downloads
Datasheet
Datasheet 1946298 FESTO Linear actuator ESBF-BS-63-100-25P 574100 Stroke length 100 mm 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1946298 FESTO Linear actuator ESBF-BS-63-100-25P 574100 Stroke length 100 mm 1 pc(s)
