TRU COMPONENTS Linear actuator TC12-50-500 TC-13492768 Stroke length 50 mm Thrust 500 N 12 V DC 1 pc(s)
EAN:
Part number:
Item no:
Nominal voltage
12 V DC
Speed (max.)
16 mm/s
Stroke length
50 mm
Thrust
500 N
Product type
Linear actuator
Datasheet (PDF)
Number
Total (€ 48.73 / piece)
€ 48.73
plus VAT.
14-day return policy included
Highlights & Details
Linear Actuator Stroke length 50 mm Thrust 500 N 12 V DC
- Input voltage: 12 V DC
- Stroke: 50 mm
- Rated load current: 3.3 A
- Load capacity: 500 N

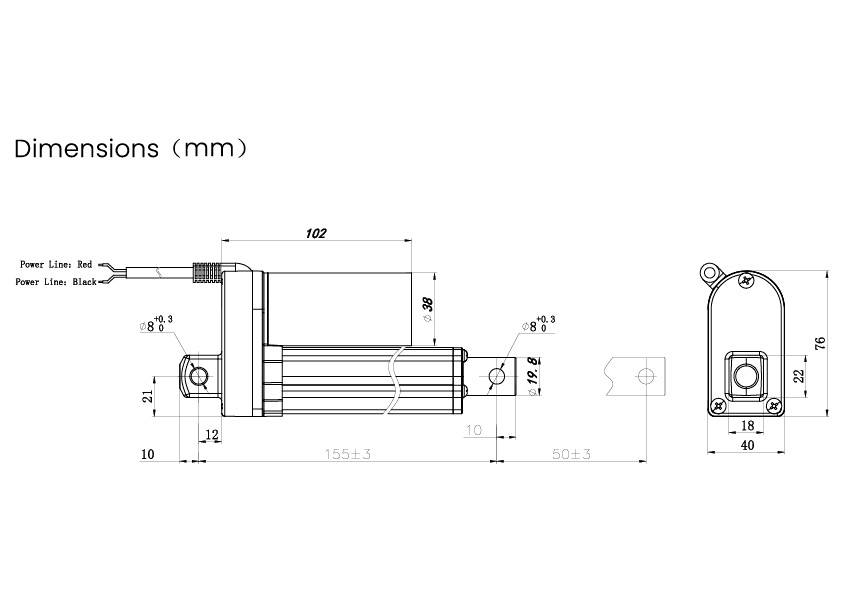

- Minimum installation size: 155 mm
- Cable Length: 700 mm
- Protection class: IP65
Our service for you
Technical specifications
- Manufacturer part #
TC-13492768
- Type
TC12-50-500
- Nominal voltage
12 V DC
- Speed (max.)
16 mm/s
- Stroke length
50 mm
- Thrust
500 N
- Plastic free packaging
Plastic-free packaging
- Product type
Linear actuator
Documents & Downloads
Datasheet
Datasheet 3373192 TRU COMPONENTS Linear actuator TC12-50-500 TC-13492768 Stroke length 50 mm Thrust 500 N 12 V DC 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3373192 TRU COMPONENTS Linear actuator TC12-50-500 TC-13492768 Stroke length 50 mm Thrust 500 N 12 V DC 1 pc(s)
Conformity certificate
Conformity certificate 3373192 TRU COMPONENTS Linear actuator TC12-50-500 TC-13492768 Stroke length 50 mm Thrust 500 N 12 V DC 1 pc(s)
