Buy TRU COMPONENTS Linear actuator TC12-200-500 POT TC-14973324 Stroke length 200 mm Thrust 500 N 12 V DC 1 pc(s) | Conrad Electronic | Conrad Electronic » All parts of success

All things technology
Delivery within Europe
Right to Cancel applies
Specialist retailer since 1923

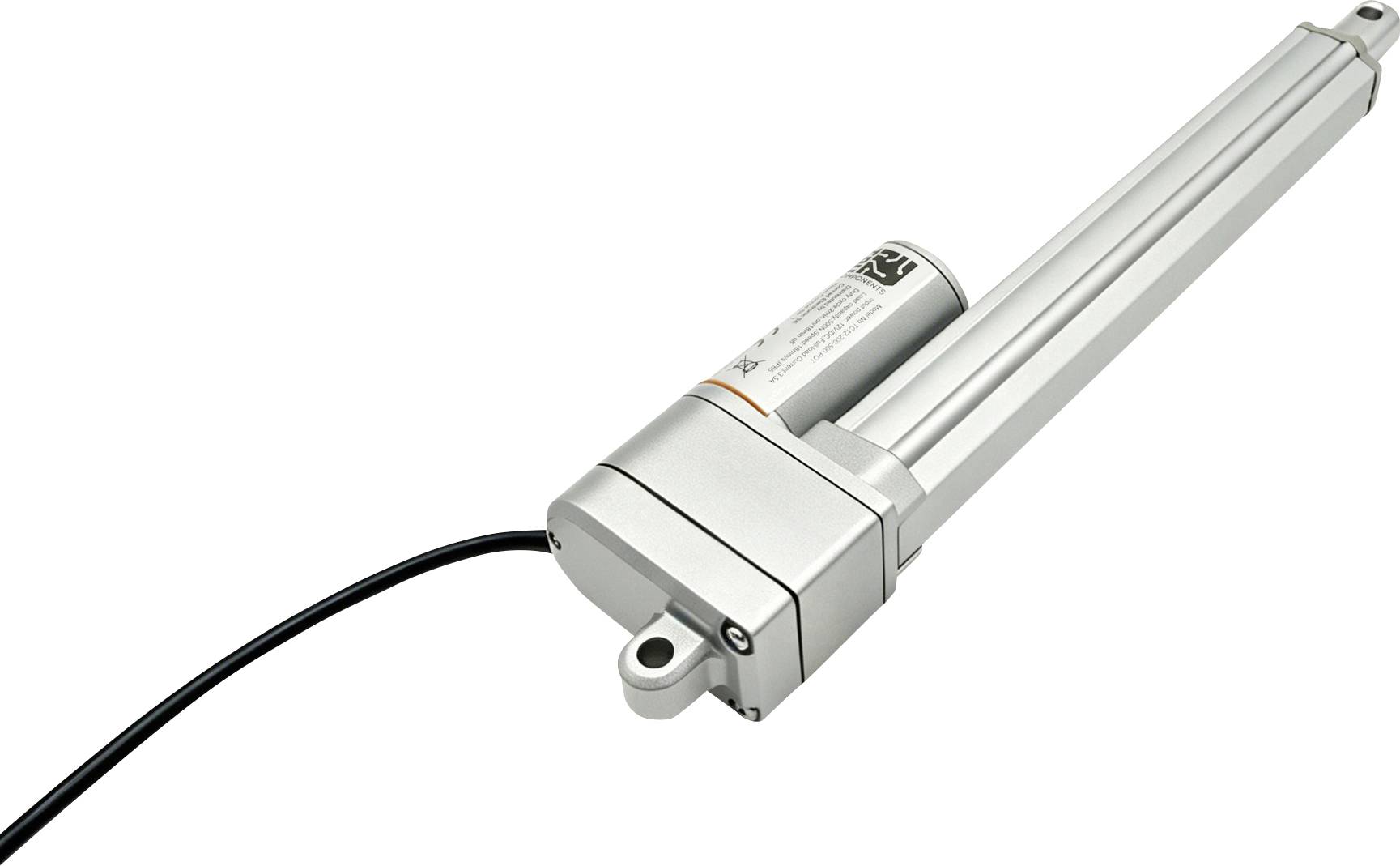

Silver linear actuator with attached black cable, shown diagonally on a white background.

Silver linear actuator with attached black cable, shown diagonally on a white background.

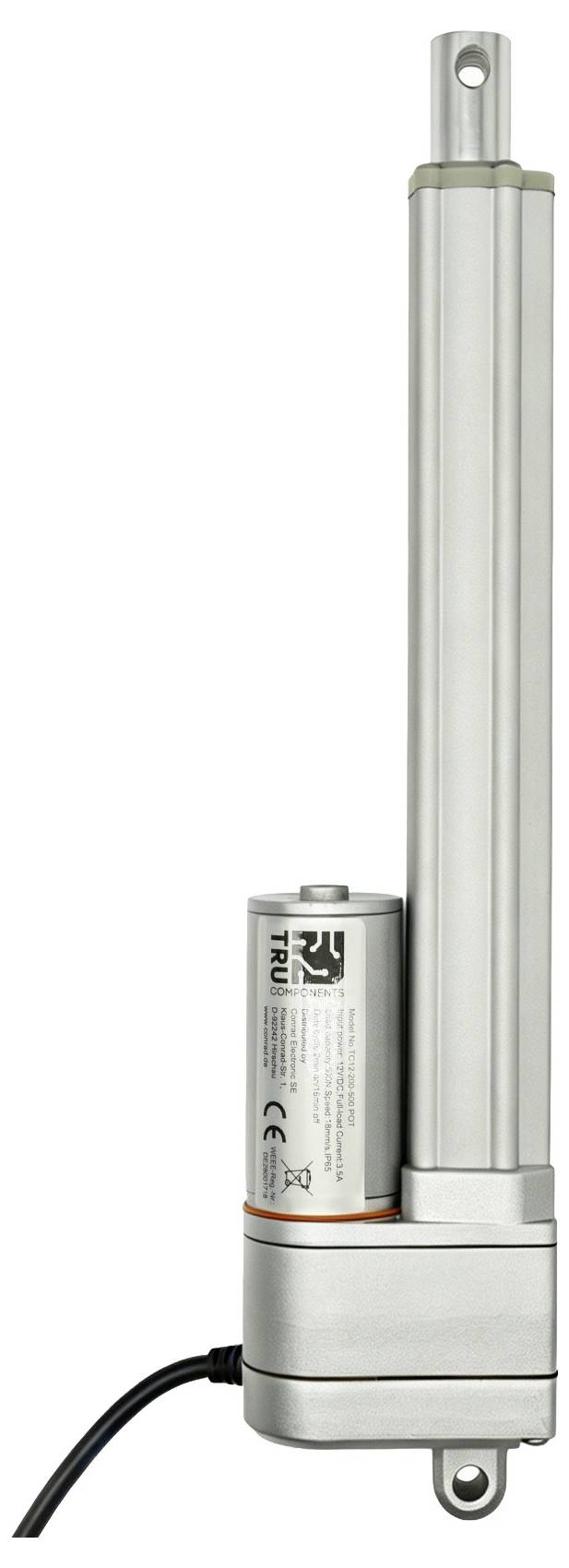

Cylindrical electric linear actuator with a small motor housing and mounting brackets, shown vertically with a power cable attached.<br>

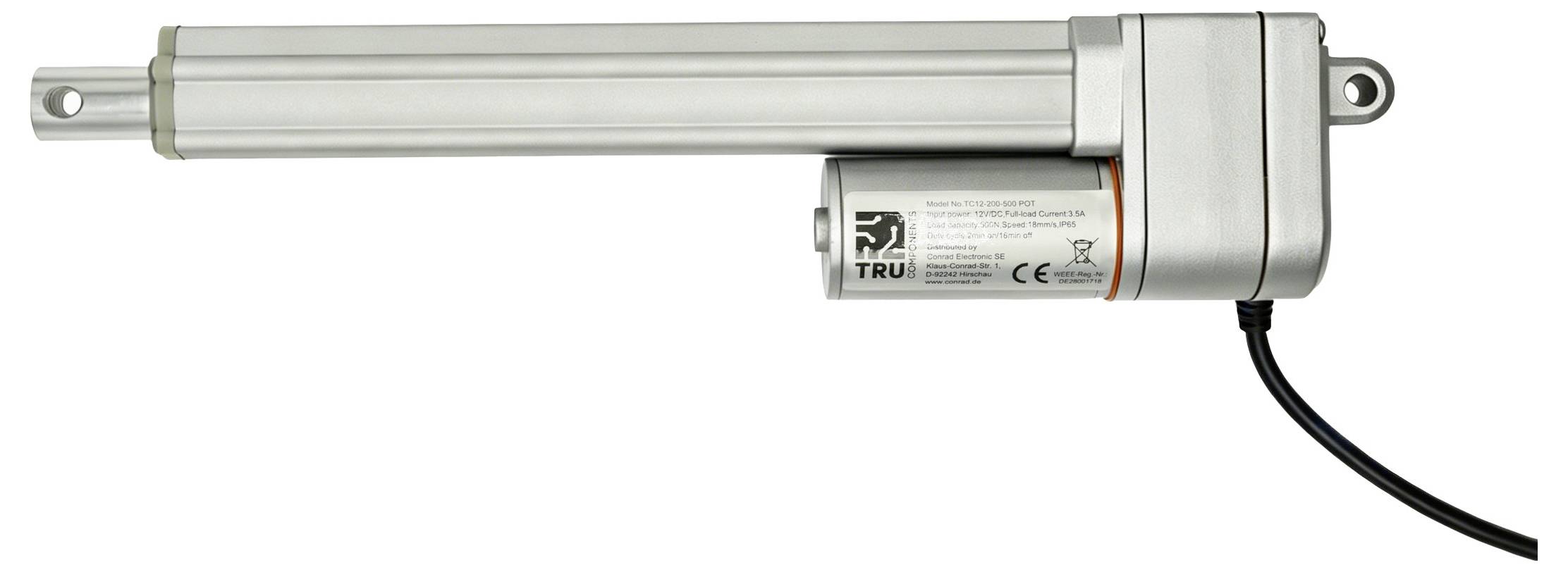

Electric linear actuator with a long silver rod, mounting eyelets at both ends, and a black power cable attached to the motor housing.

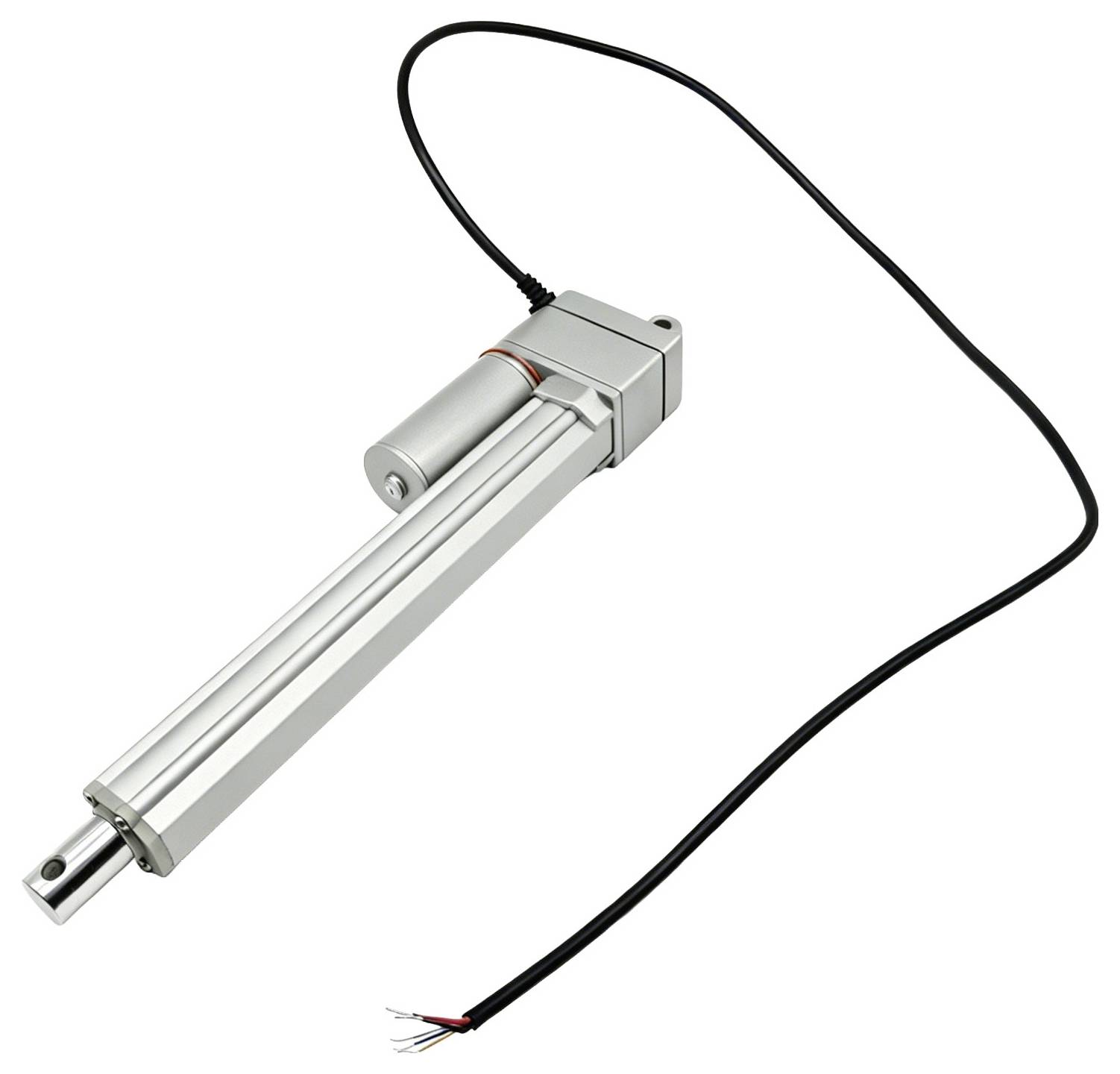

Silver linear actuator with attached black power cable, shown on a white background.

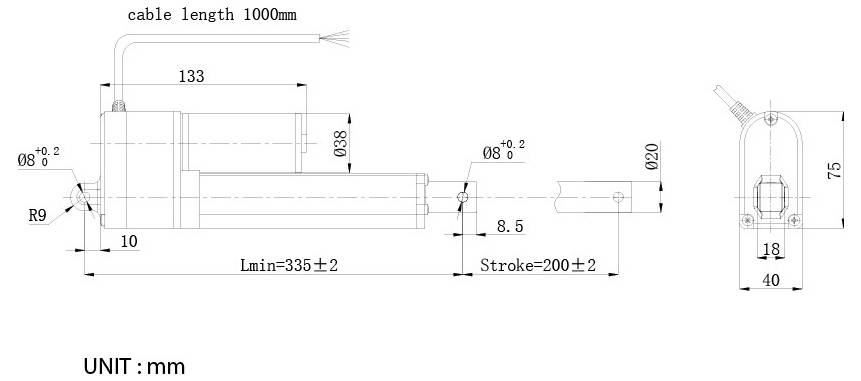

Technical dimension drawing of a cylindrical cable-mounted component, showing side and end views with measurements in millimeters, including cable length 1000mm, stroke 200±2, and unit mm.

1/5

TRU COMPONENTS

Product type

Linear actuator

Stroke length

200 mm

Speed (max.)

18 mm/s

Nominal voltage

12 V DC

Thrust

500 N

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Thu 12 Nov

47 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 81.99 / piece)

€ 81.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

TRU COMPONENTS Electric Cylinder TC12-200-500 POT

Input voltage: 12 V DC
Stroke: 200 mm
Rated load current: 3.5 A
Load capacity: 500 N
Minimum installation size: 335 ± 2 mm
Cable Length: 1000 mm
Protection class: IP65
Built-in potentiometer

Technical specifications

Built-in Potentiometer

Product type: Linear actuator

Stroke length: 200 mm

Speed (max.): 18 mm/s

Nominal voltage: 12 V DC

Type: Potentiometer

Thrust: 500 N

Manufacturer part #: TC-14973324

Type: TC12-200-500 POT

Features: Built-in potentiometer

Thrust power: 500 N

Plastic free packaging: Plastic-free packaging

Documents & Downloads

Datasheet

Datasheet 3743331 TRU COMPONENTS Linear actuator TC12-200-500 POT TC-14973324 Stroke length 200 mm Thrust 500 N 12 V DC 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3743331 TRU COMPONENTS Linear actuator TC12-200-500 POT TC-14973324 Stroke length 200 mm Thrust 500 N 12 V DC 1 pc(s)
