Name: TRU COMPONENTS Linear actuator TC24-300-500 HS TC-14973416 Stroke length 300 mm Thrust 500 N 24 V DC 1 pc(s)
Brand: TRU COMPONENTS
SKU: 3743354
Availability: InStock

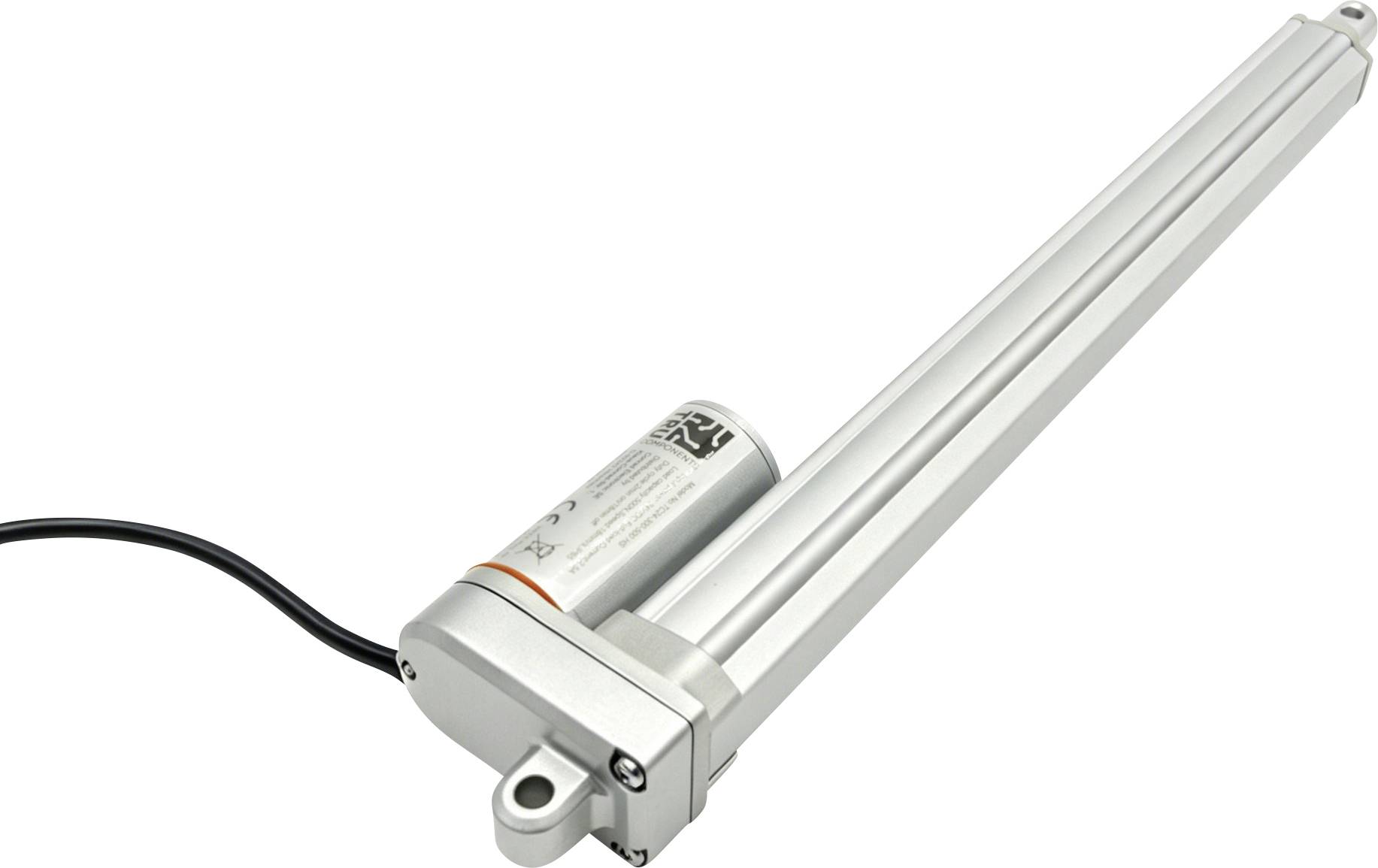

Silver electric linear actuator with attached power cable, shown isolated on a white background.

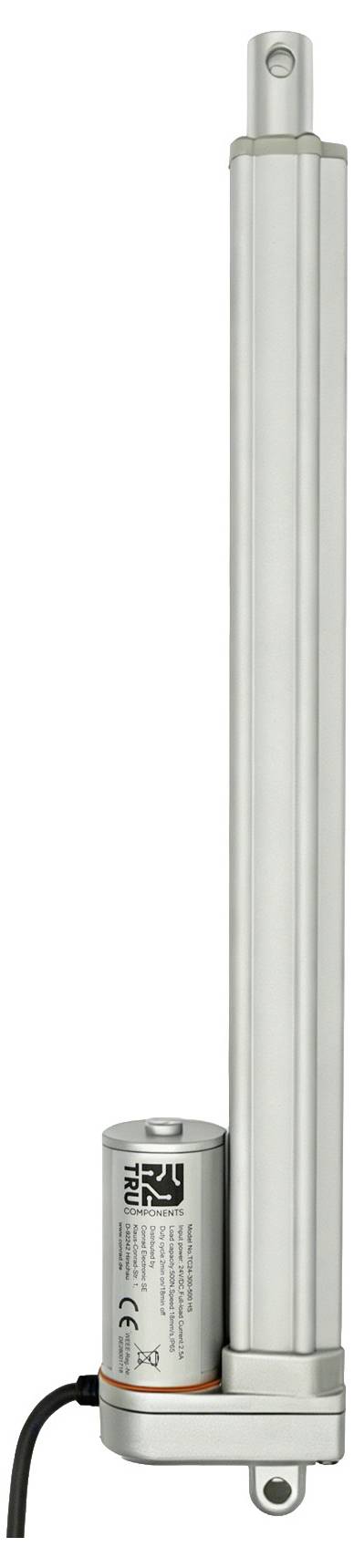

Vertical electric linear actuator motor with a long silver rod and mounting brackets, shown with a connected battery pack at the base.<br>

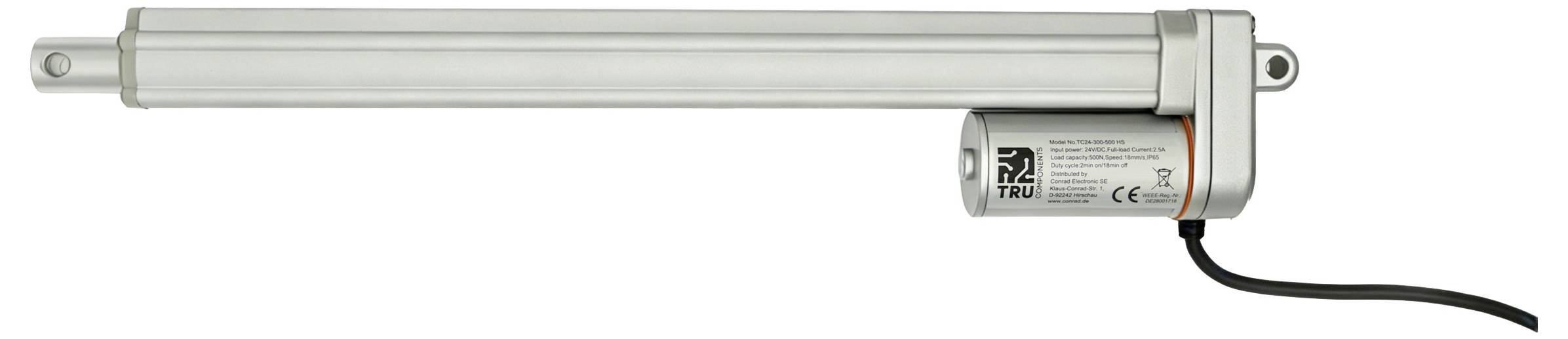

Electric linear actuator with extended silver shaft, cylindrical motor housing, and attached black power cable on a white background.

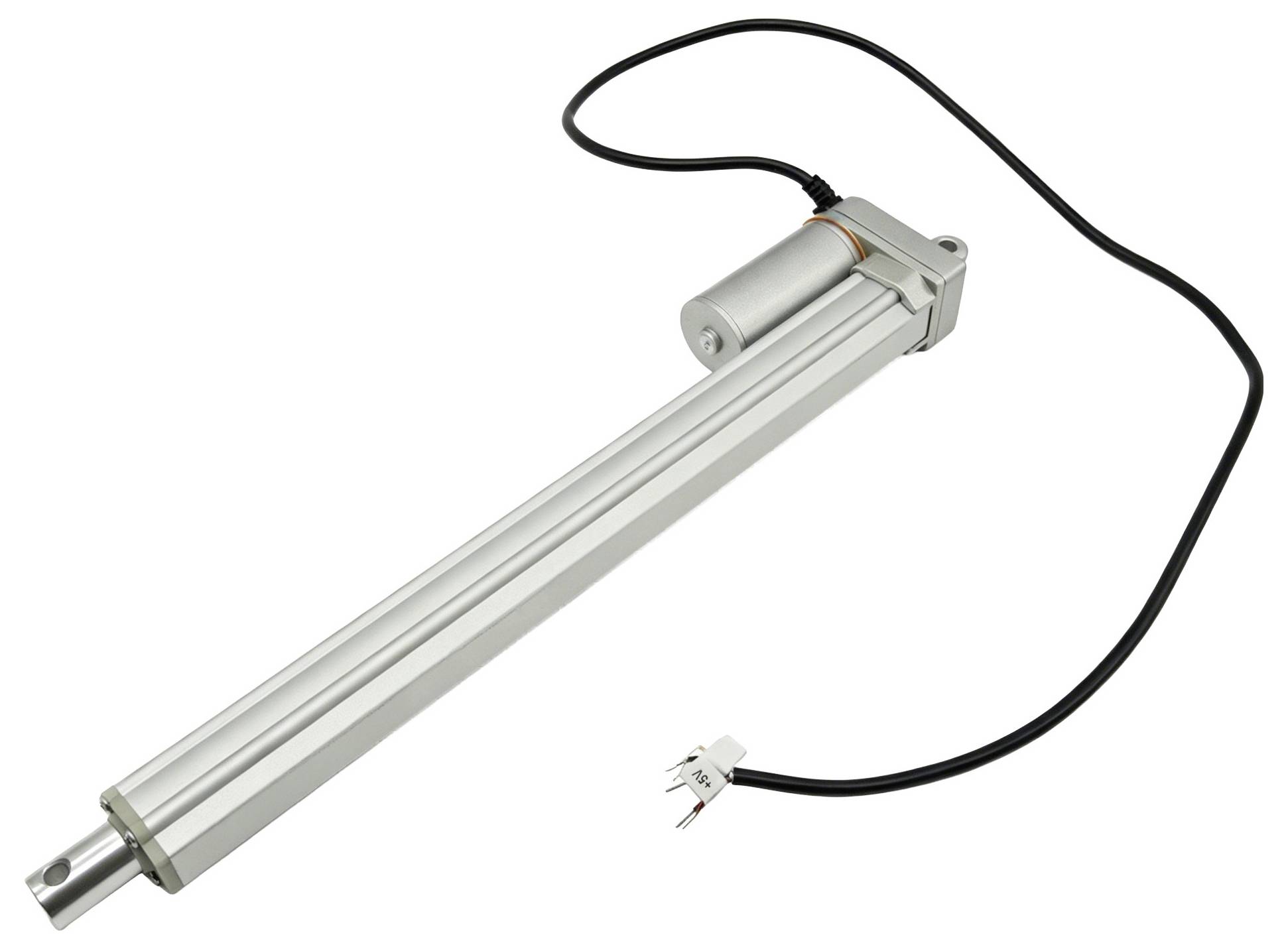

An electric linear actuator with a long silver metal housing and attached black power cable on a white background.

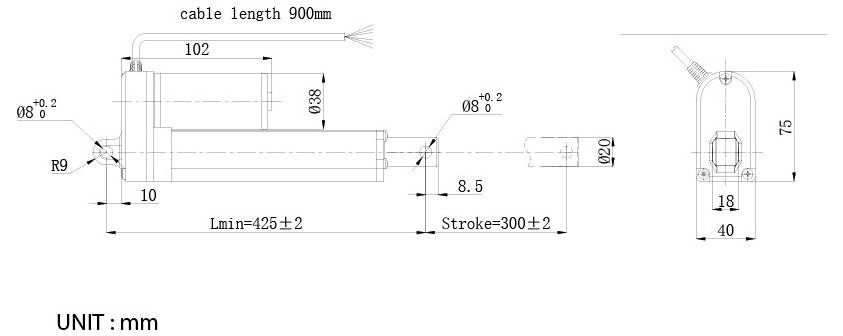

Technical drawing of a linear actuator with cable length 900 mm, showing dimensions in millimeters, including 425±2 mm minimum length and 300±2 mm stroke.

1/5

Nominal voltage

24 V DC

Speed (max.)

18 mm/s

Stroke length

300 mm

Thrust

500 N

Product type

Linear actuator

Datasheet (PDF)

Fast track dispatch on Wed 14 Oct

50 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 85.99 / piece)

€ 85.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

TRU COMPONENTS Electric Cylinder TC24-300-500 HS

Input voltage: 24 V DC
Stroke: 300 mm
Rated load current: 2.5 A
Load capacity: 500 N
Minimum installation size: 425 ± 2 mm
Cable Length: 900 mm
Protection class: IP65
Built-in hall sensor

Technical specifications

Built-in Hall effect sensor

Type: Hall-effect sensor

Manufacturer part #: TC-14973416

Type: TC24-300-500 HS

Features: Hall effect sensor

Nominal voltage: 24 V DC

Speed (max.): 18 mm/s

Stroke length: 300 mm

Thrust: 500 N

Thrust power: 500 N

Plastic free packaging: Plastic-free packaging

Product type: Linear actuator
