Buy TRU COMPONENTS Linear actuator TC12-200-1000 TC-14973336 Stroke length 200 mm Thrust 1000 N 12 V DC 1 pc(s) | Conrad Electronic | Conrad Electronic » All parts of success

All things technology
Delivery within Europe
Right to Cancel applies
Specialist retailer since 1923

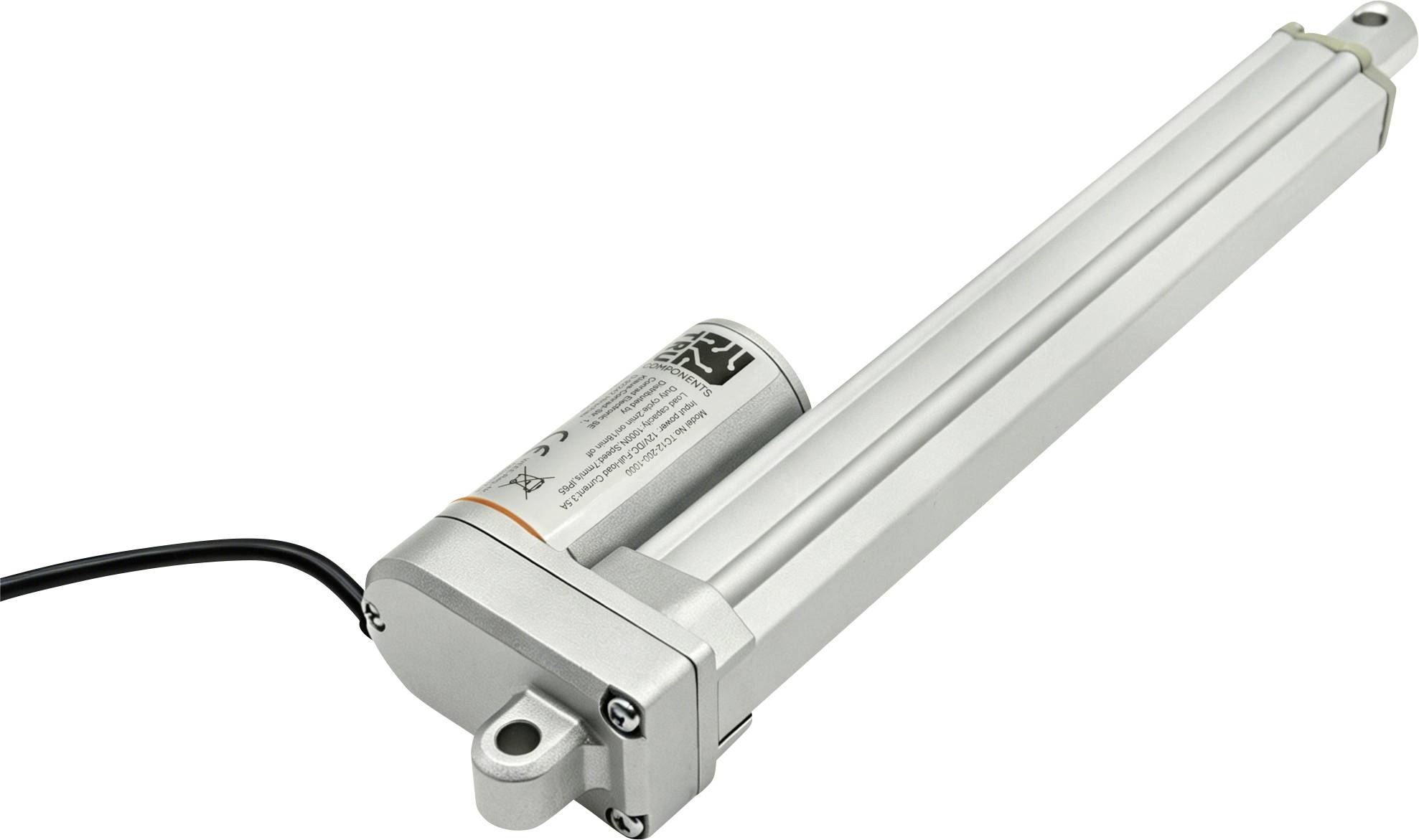

Silver electric linear actuator with attached cable and mounting bracket, shown on a white background.

Silver electric linear actuator with attached cable and mounting bracket, shown on a white background.

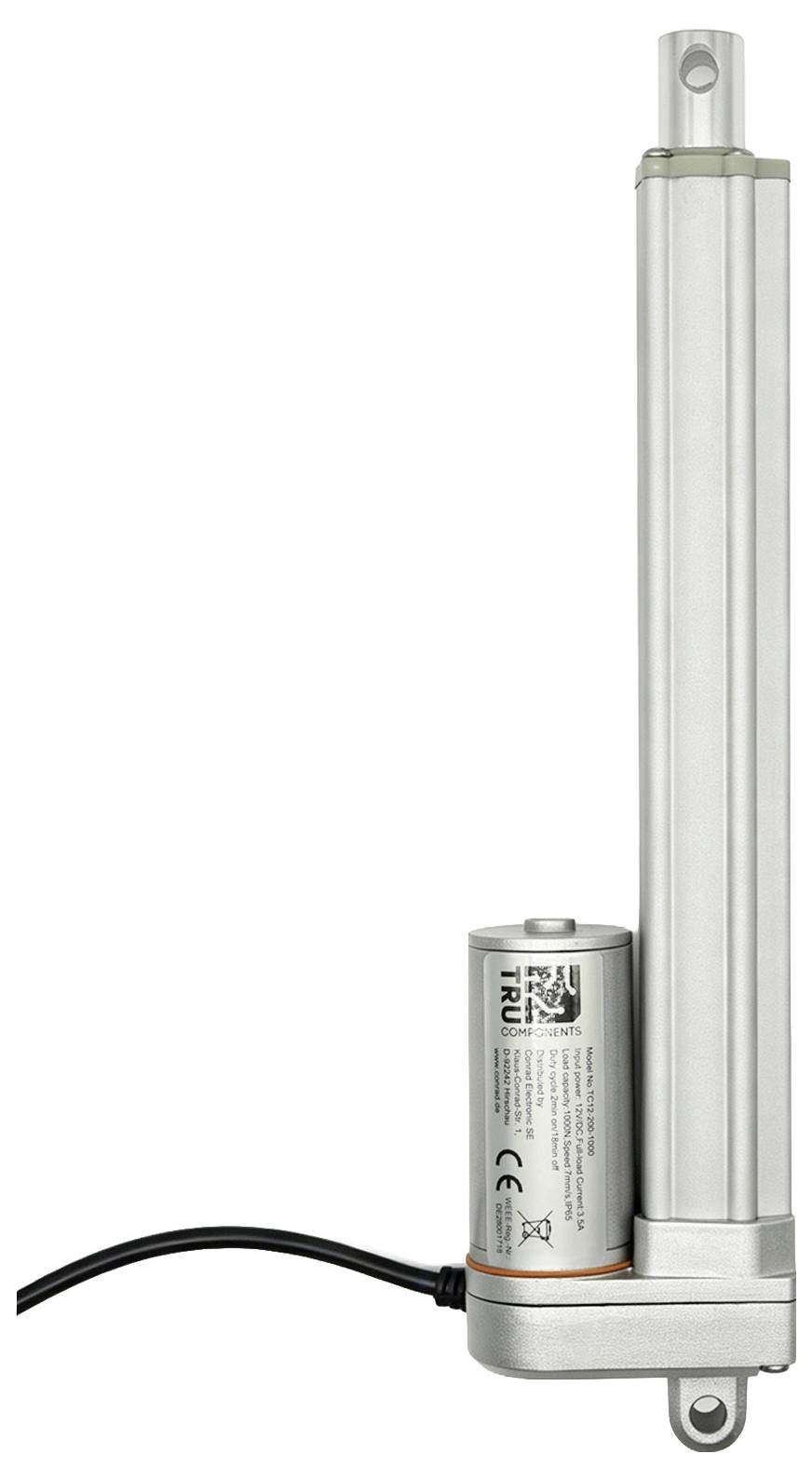

Compact electric linear actuator with silver motor housing and attached cable, shown upright on a plain background.

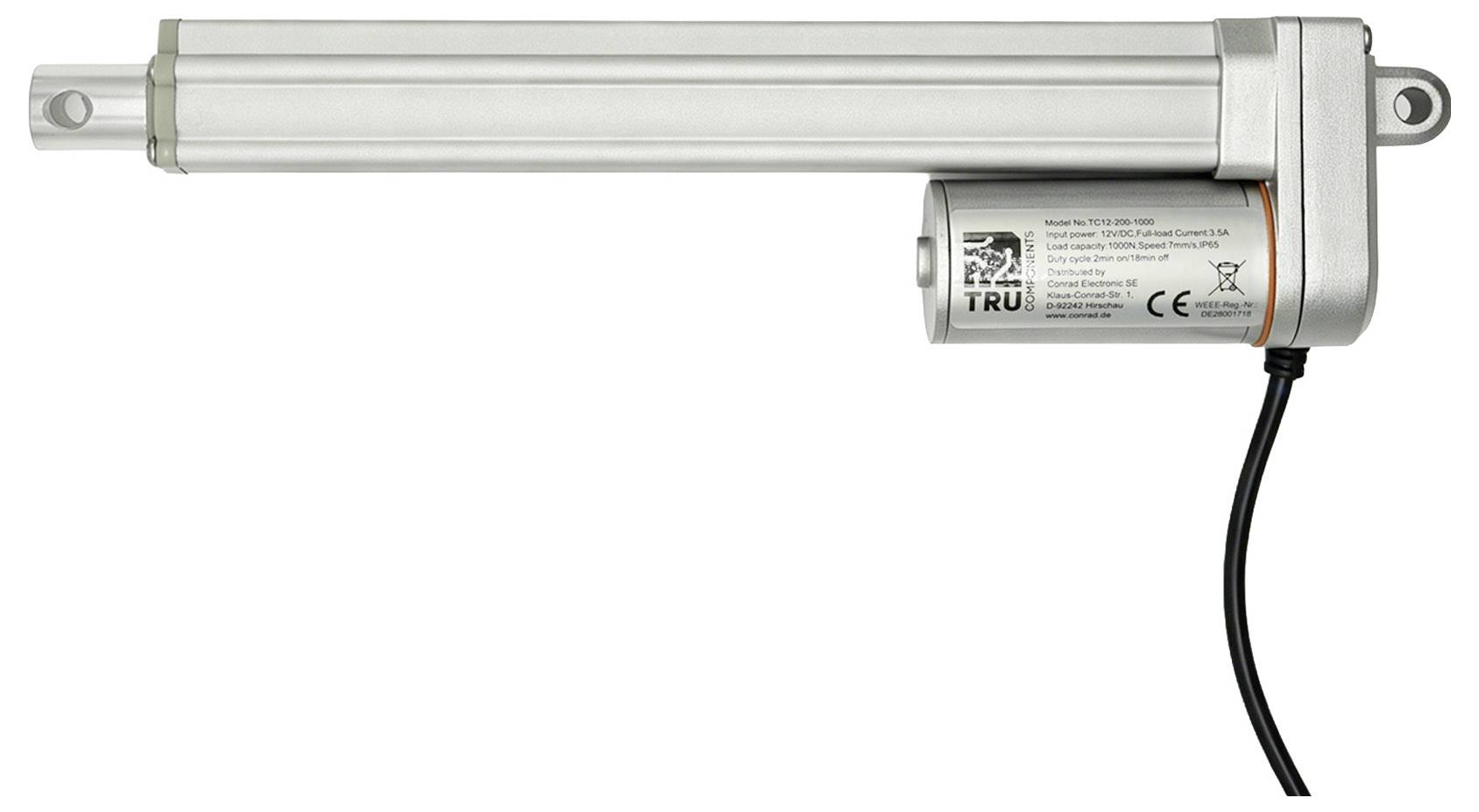

Silver electric linear actuator with mounting brackets and a power cable attached<br>

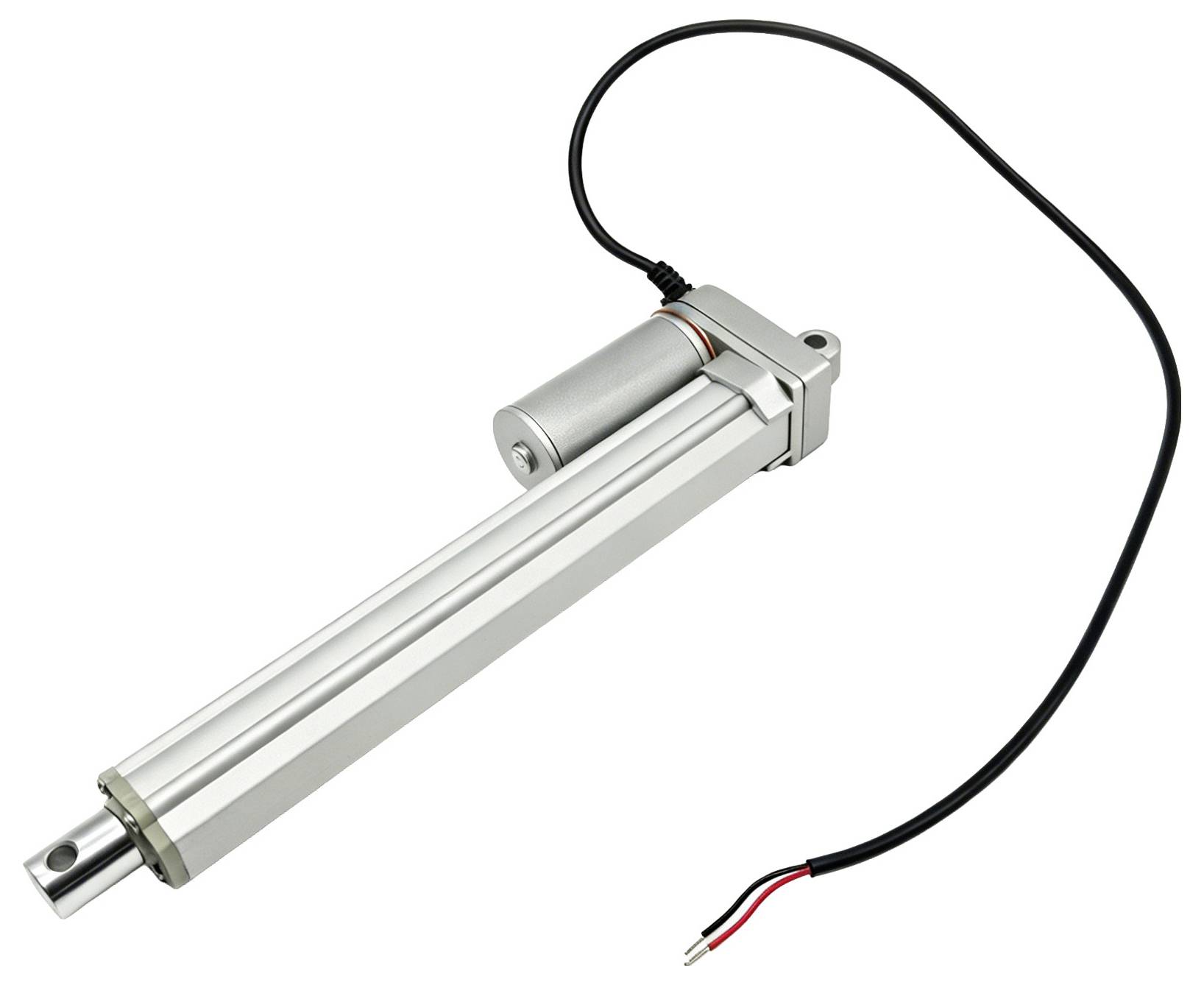

Linear electric actuator with extended silver piston rod and attached black power cable with exposed red and black leads.<br>

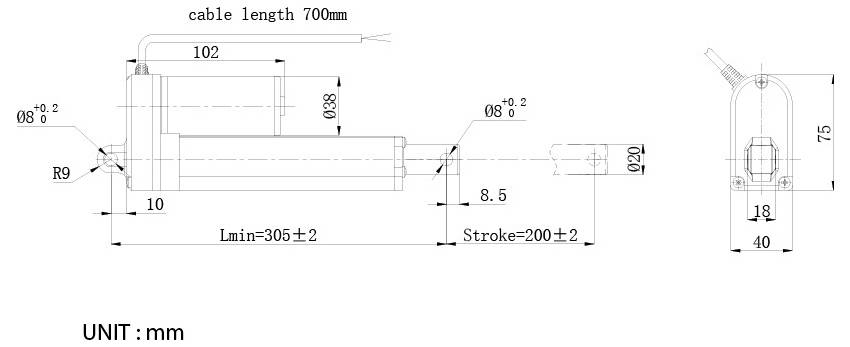

Technical drawing of a linear actuator in millimeters, showing cable length 700 mm, overall length 305±2, stroke 200±2, and key dimensions of the side and end views.

1/5

TRU COMPONENTS

Product type

Linear actuator

Stroke length

200 mm

Speed (max.)

7 mm/s

Nominal voltage

12 V DC

Thrust

1000 N

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Thu 12 Nov

42 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 81.99 / piece)

€ 81.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

TRU COMPONENTS Electric Cylinder TC12-200-1000

Input voltage: 12 V DC
Stroke: 200 mm
Rated load current: 3.5 A
Load capacity: 1000 N
Minimum installation size: 305 ± 2 mm
Cable Length: 700 mm
Protection class: IP65

Technical specifications

Product type: Linear actuator

Stroke length: 200 mm

Speed (max.): 7 mm/s

Nominal voltage: 12 V DC

Thrust: 1000 N

Manufacturer part #: TC-14973336

Type: TC12-200-1000

Thrust power: 1000 N

Plastic free packaging: Plastic-free packaging

Documents & Downloads

Datasheet

Datasheet 3743334 TRU COMPONENTS Linear actuator TC12-200-1000 TC-14973336 Stroke length 200 mm Thrust 1000 N 12 V DC 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3743334 TRU COMPONENTS Linear actuator TC12-200-1000 TC-14973336 Stroke length 200 mm Thrust 1000 N 12 V DC 1 pc(s)
