Buy TRU COMPONENTS Linear actuator TC12-300-1000 TC-14973396 Stroke length 300 mm Thrust 1000 N 12 V DC 1 pc(s) | Conrad Electronic | Conrad Electronic » All parts of success

All things technology
Delivery within Europe
Right to Cancel applies
Specialist retailer since 1923

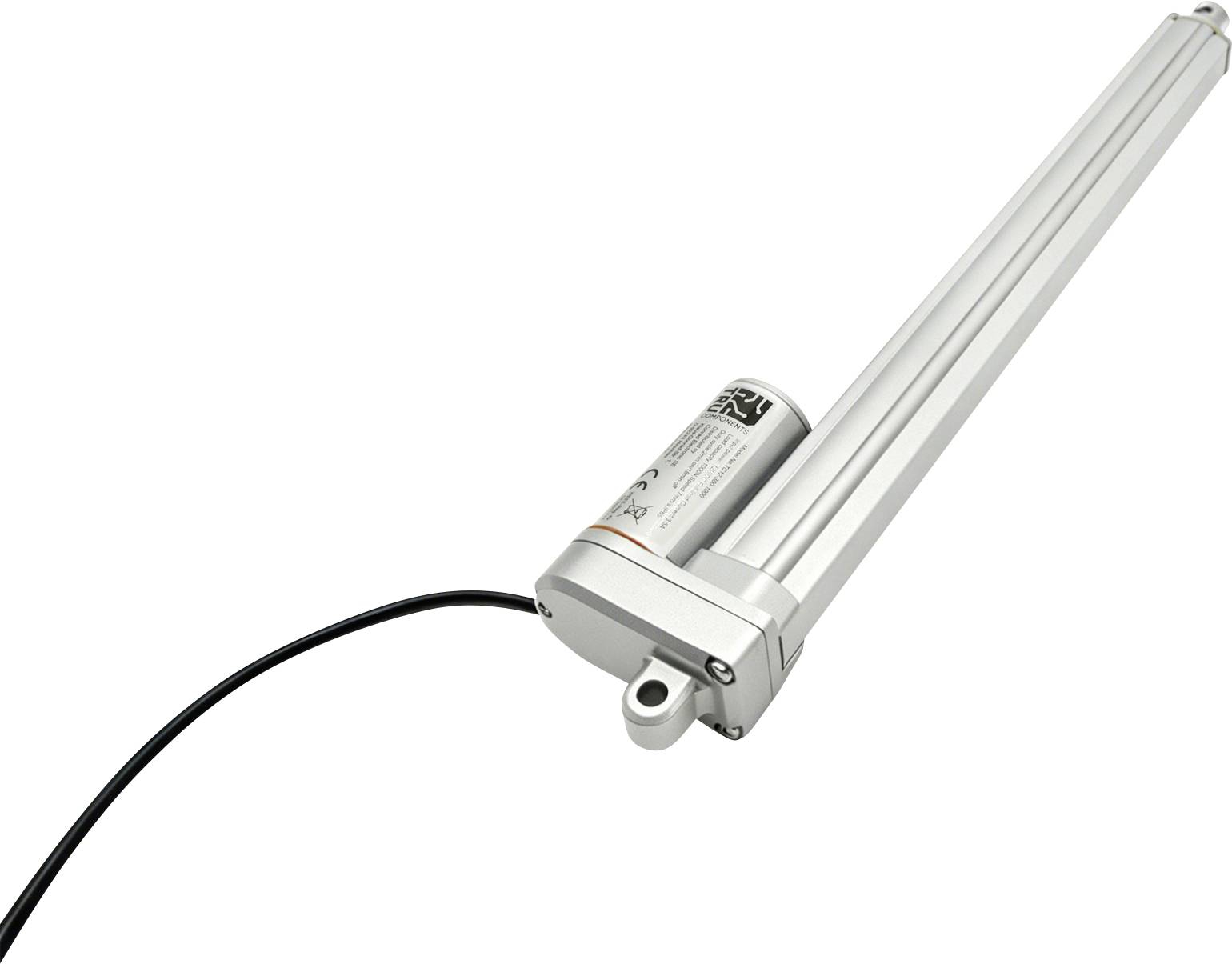

Silver linear actuator with two parallel shafts and a black power cable on a white background.

Silver linear actuator with two parallel shafts and a black power cable on a white background.

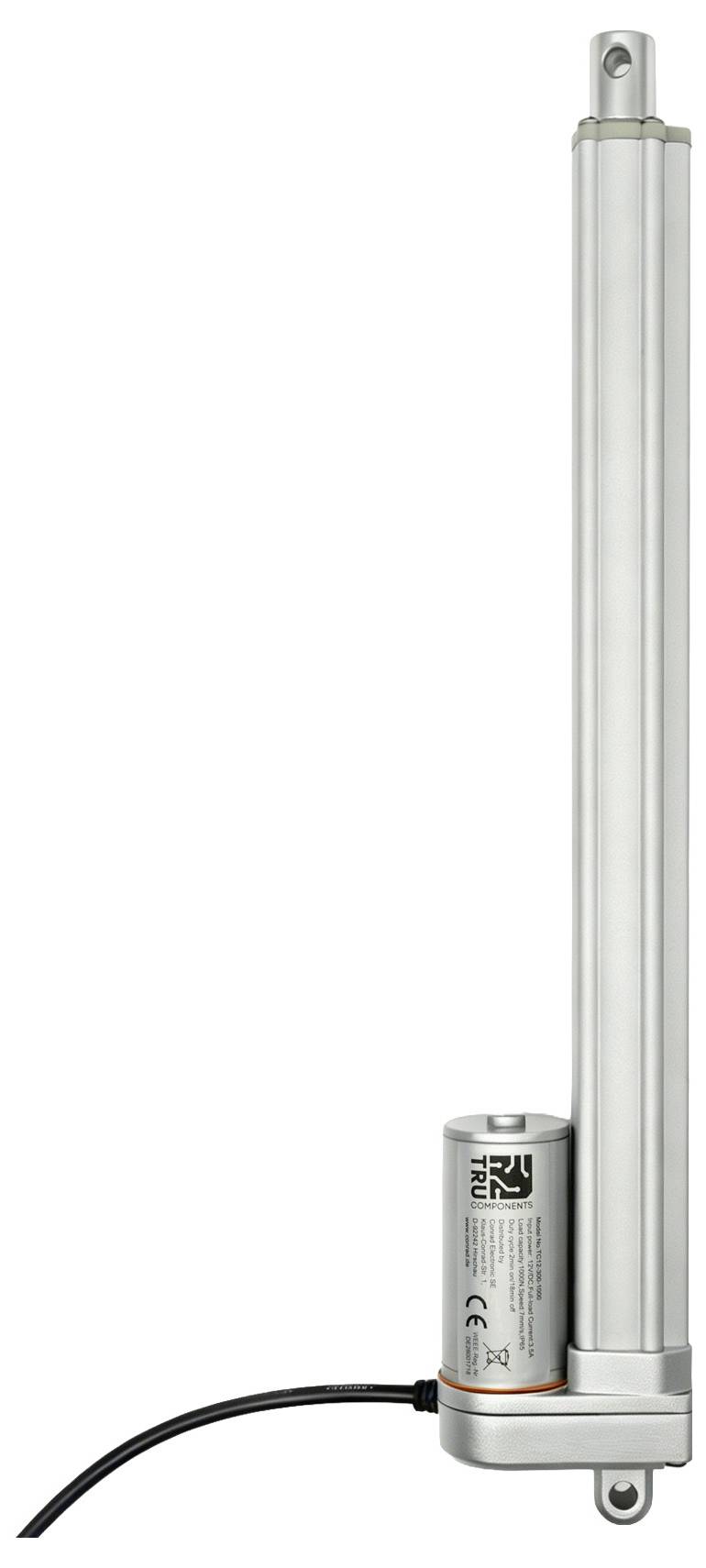

A silver linear actuator with a motor casing and attached black power cable, shown vertically on a white background.

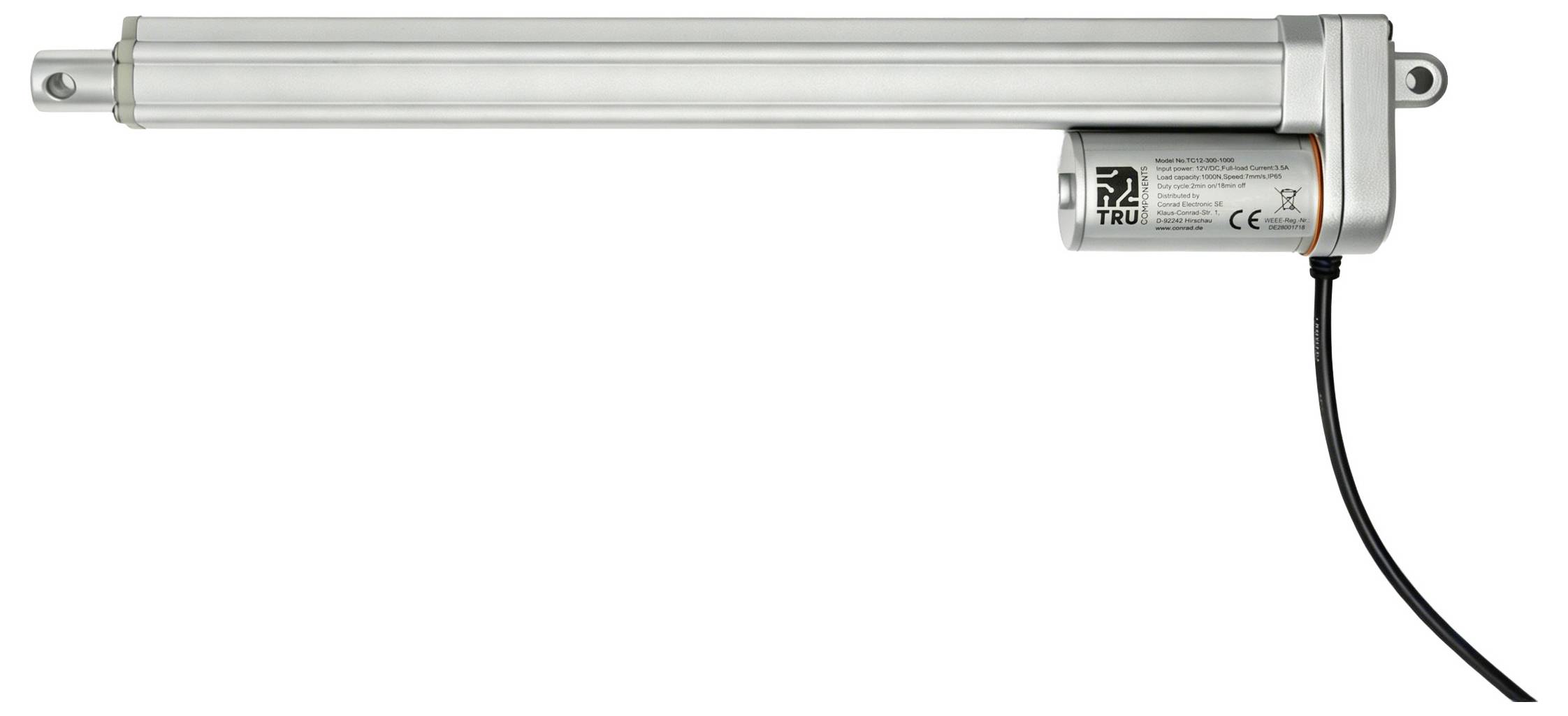

Electric linear actuator with extended silver housing and black power cable on a white background.

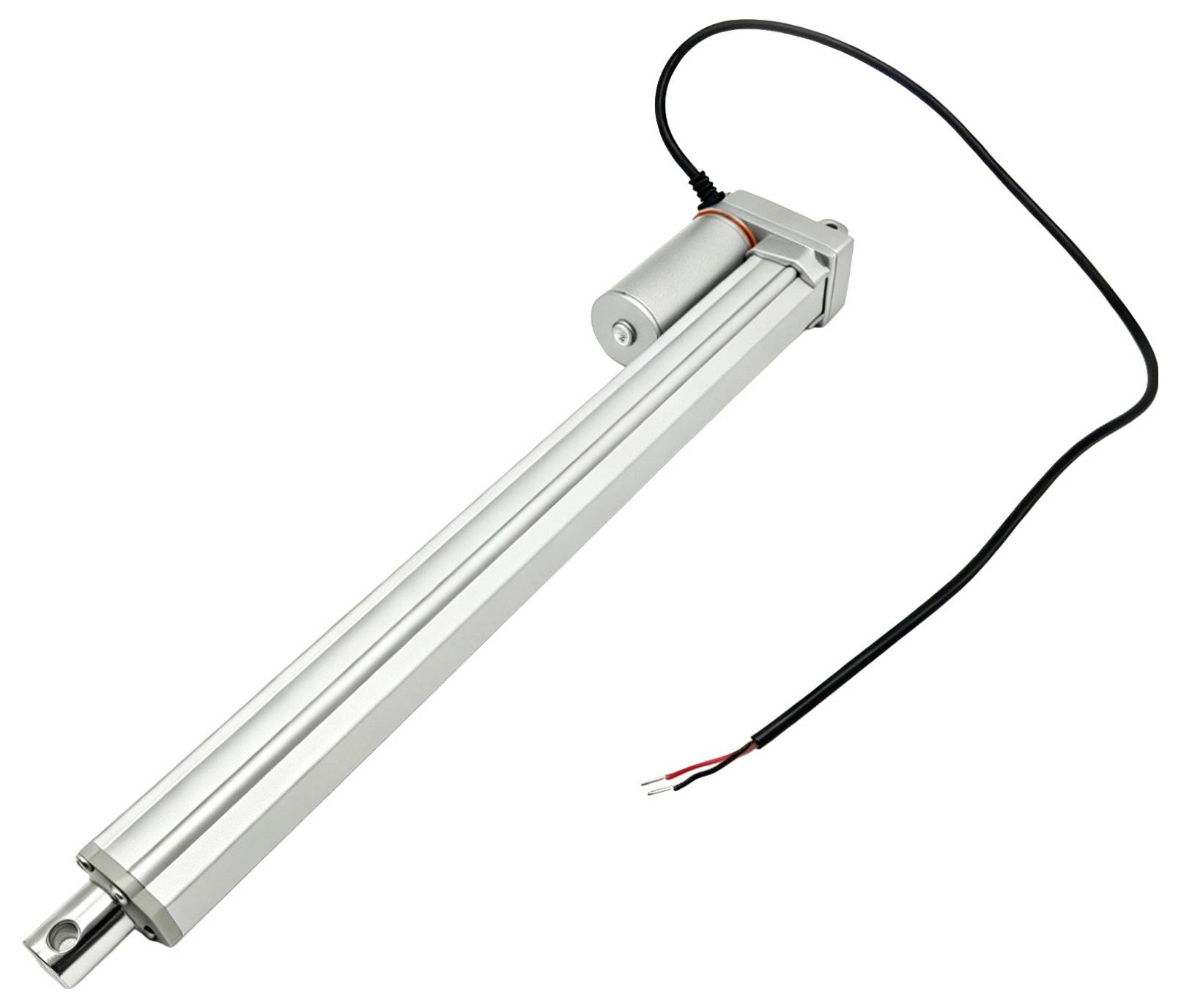

Electric linear actuator with extended silver housing, mounting brackets, and exposed power wires on a white background.

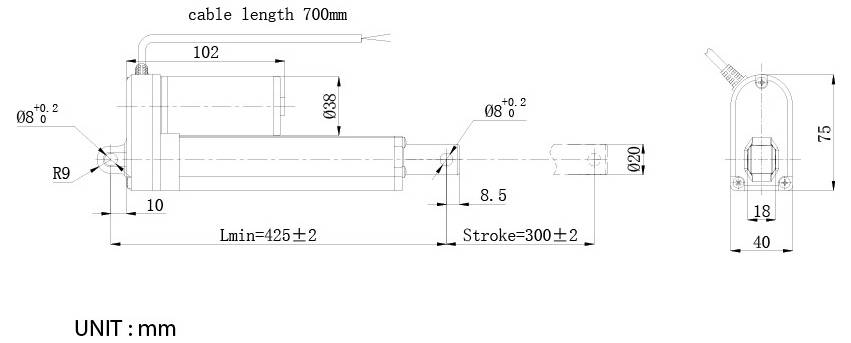

Technical drawing of a linear actuator with dimensions in millimeters, including cable length 700 mm, stroke 300±2, minimum length 425±2, and key diameters and mounting measurements.

1/5

TRU COMPONENTS

Product type

Linear actuator

Stroke length

300 mm

Speed (max.)

7 mm/s

Nominal voltage

12 V DC

Thrust

1000 N

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Thu 12 Nov

48 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 69.99 / piece)

€ 69.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

TRU COMPONENTS Electric Cylinder TC12-300-1000

Input voltage: 12 V DC
Stroke: 300 mm
Rated load current: 3.5 A
Load capacity: 1000 N
Minimum installation size: 425 ± 2 mm
Cable Length: 700 mm
Protection class: IP65

Technical specifications

Product type: Linear actuator

Stroke length: 300 mm

Speed (max.): 7 mm/s

Nominal voltage: 12 V DC

Thrust: 1000 N

Manufacturer part #: TC-14973396

Type: TC12-300-1000

Thrust power: 1000 N

Plastic free packaging: Plastic-free packaging

Documents & Downloads

Datasheet

Datasheet 3743349 TRU COMPONENTS Linear actuator TC12-300-1000 TC-14973396 Stroke length 300 mm Thrust 1000 N 12 V DC 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3743349 TRU COMPONENTS Linear actuator TC12-300-1000 TC-14973396 Stroke length 300 mm Thrust 1000 N 12 V DC 1 pc(s)
