Buy TRU COMPONENTS Linear actuator TC12-300-1000 POT TC-14973388 Stroke length 300 mm Thrust 1000 N 12 V DC 1 pc(s) | Conrad Electronic | Conrad Electronic » All parts of success

All things technology
Delivery within Europe
Right to Cancel applies
Specialist retailer since 1923

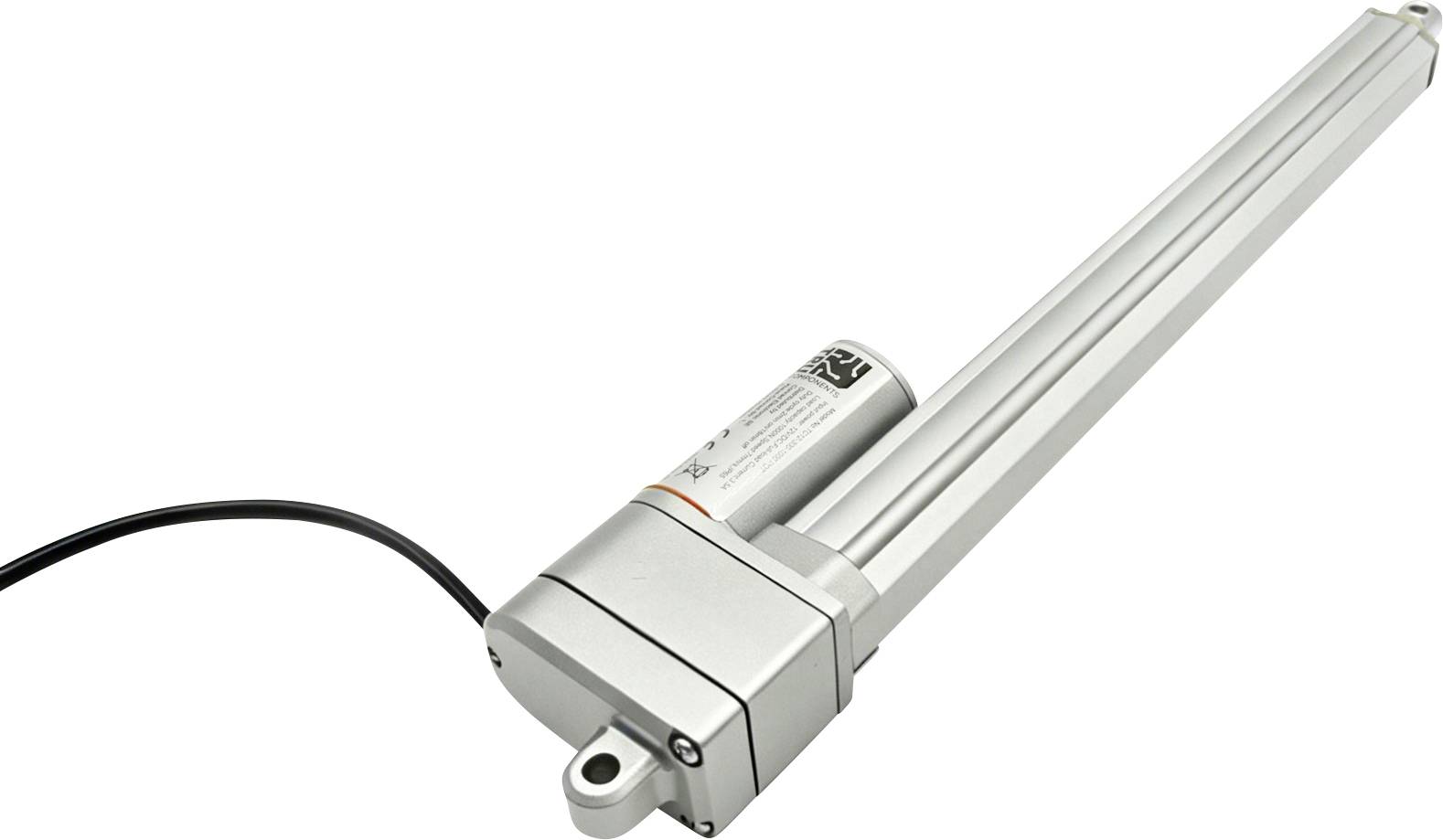

Electric linear actuator with extended silver rod and attached black power cable on a white background.

Electric linear actuator with extended silver rod and attached black power cable on a white background.

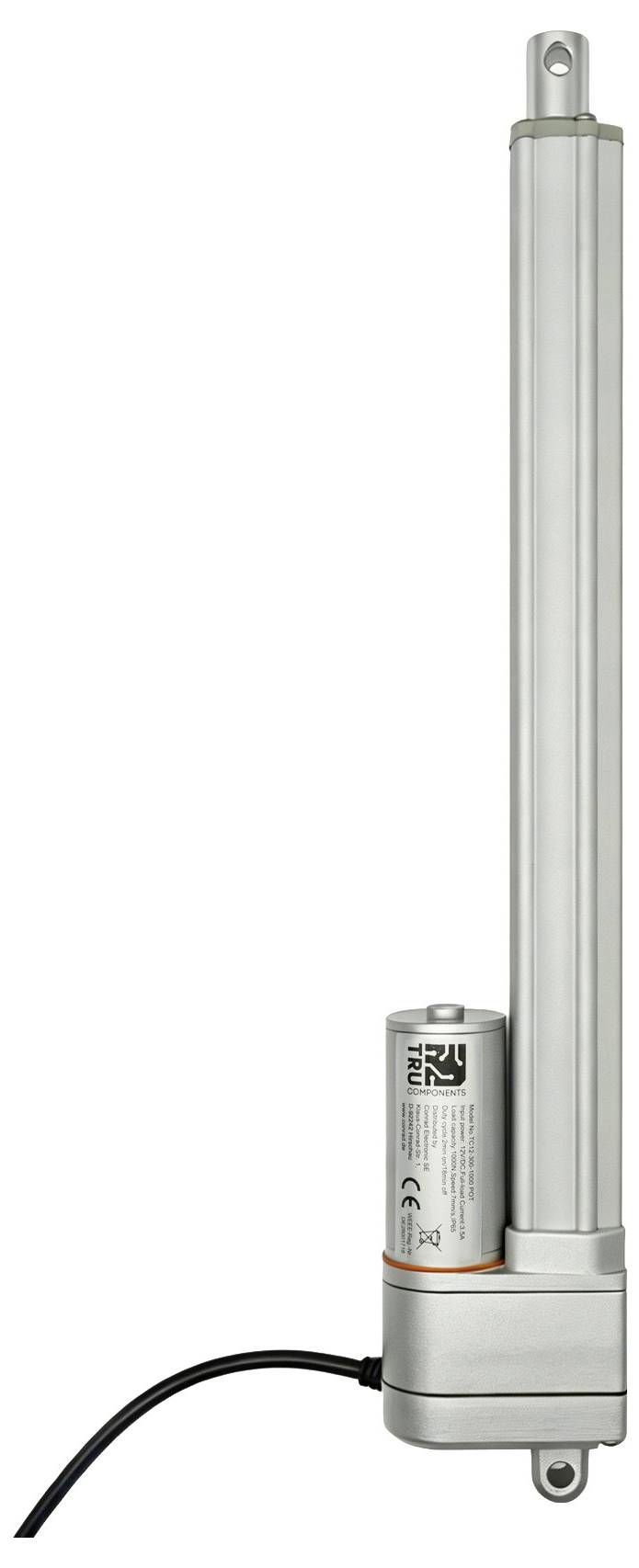

Compact electric linear actuator with attached motor and power cable, shown vertically on a white background.

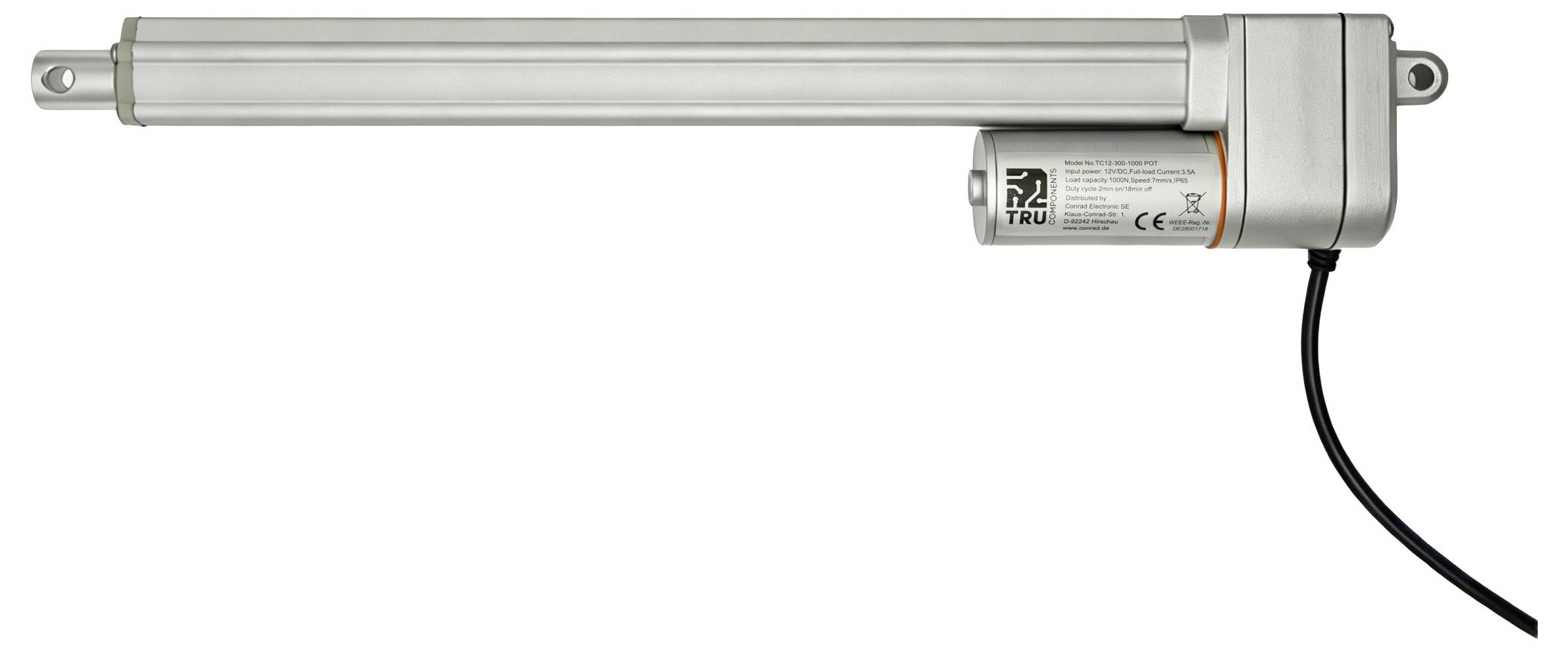

Electric linear actuator with extended silver piston rod and attached black power cable on a white background.

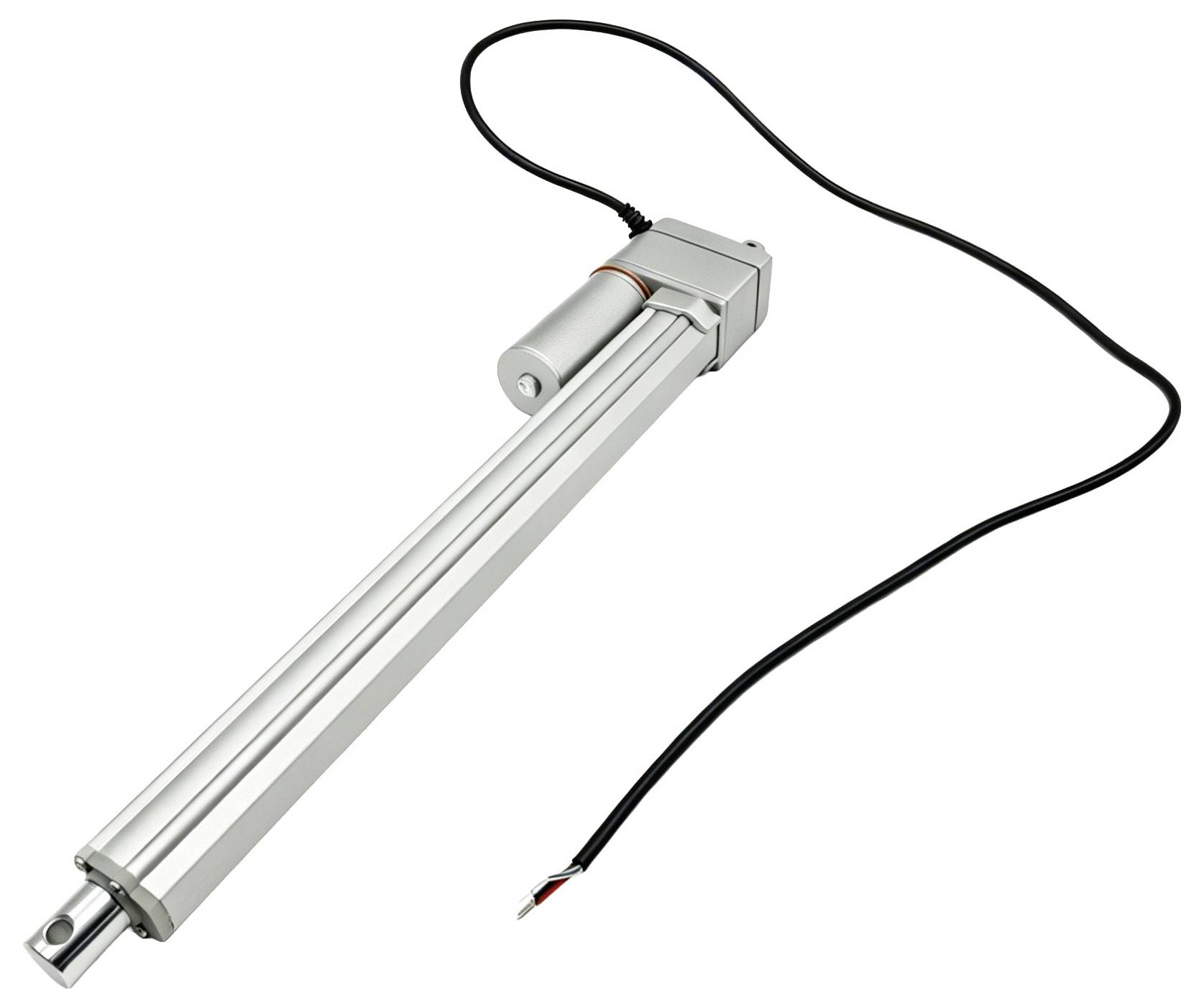

Electric linear actuator with attached power cable and mounting ends on a white background.

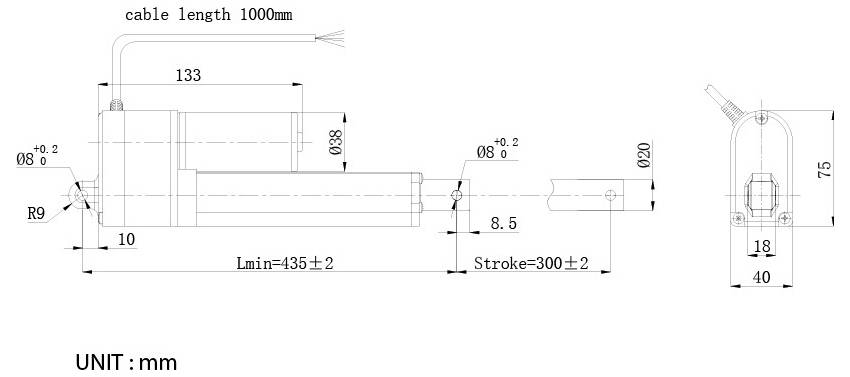

Technical drawing of a linear actuator with dimensions in mm, showing cable length 1000 mm, minimum length 435±2, stroke 300±2, and end-view measurements.

1/5

TRU COMPONENTS

Product type

Linear actuator

Stroke length

300 mm

Speed (max.)

7 mm/s

Nominal voltage

12 V DC

Thrust

1000 N

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Thu 12 Nov

45 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 91.99 / piece)

€ 91.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

TRU COMPONENTS Electric Cylinder TC12-300-1000 POT

Input voltage: 12 V DC
Stroke: 300 mm
Rated load current: 3.5 A
Load capacity: 1000 N
Minimum installation size: 435 ± 2 mm
Cable Length: 1000 mm
Protection class: IP65
Built-in potentiometer

Technical specifications

Built-in Potentiometer

Product type: Linear actuator

Stroke length: 300 mm

Speed (max.): 7 mm/s

Nominal voltage: 12 V DC

Type: Potentiometer

Thrust: 1000 N

Manufacturer part #: TC-14973388

Type: TC12-300-1000 POT

Features: Built-in potentiometer

Thrust power: 1000 N

Plastic free packaging: Plastic-free packaging

Documents & Downloads

Datasheet

Datasheet 3743347 TRU COMPONENTS Linear actuator TC12-300-1000 POT TC-14973388 Stroke length 300 mm Thrust 1000 N 12 V DC 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3743347 TRU COMPONENTS Linear actuator TC12-300-1000 POT TC-14973388 Stroke length 300 mm Thrust 1000 N 12 V DC 1 pc(s)
