Buy TRU COMPONENTS Linear actuator TC12-300-500 TC-14973384 Stroke length 300 mm Thrust 500 N 12 V DC 1 pc(s) | Conrad Electronic | Conrad Electronic » All parts of success

All things technology
Delivery within Europe
Right to Cancel applies
Specialist retailer since 1923

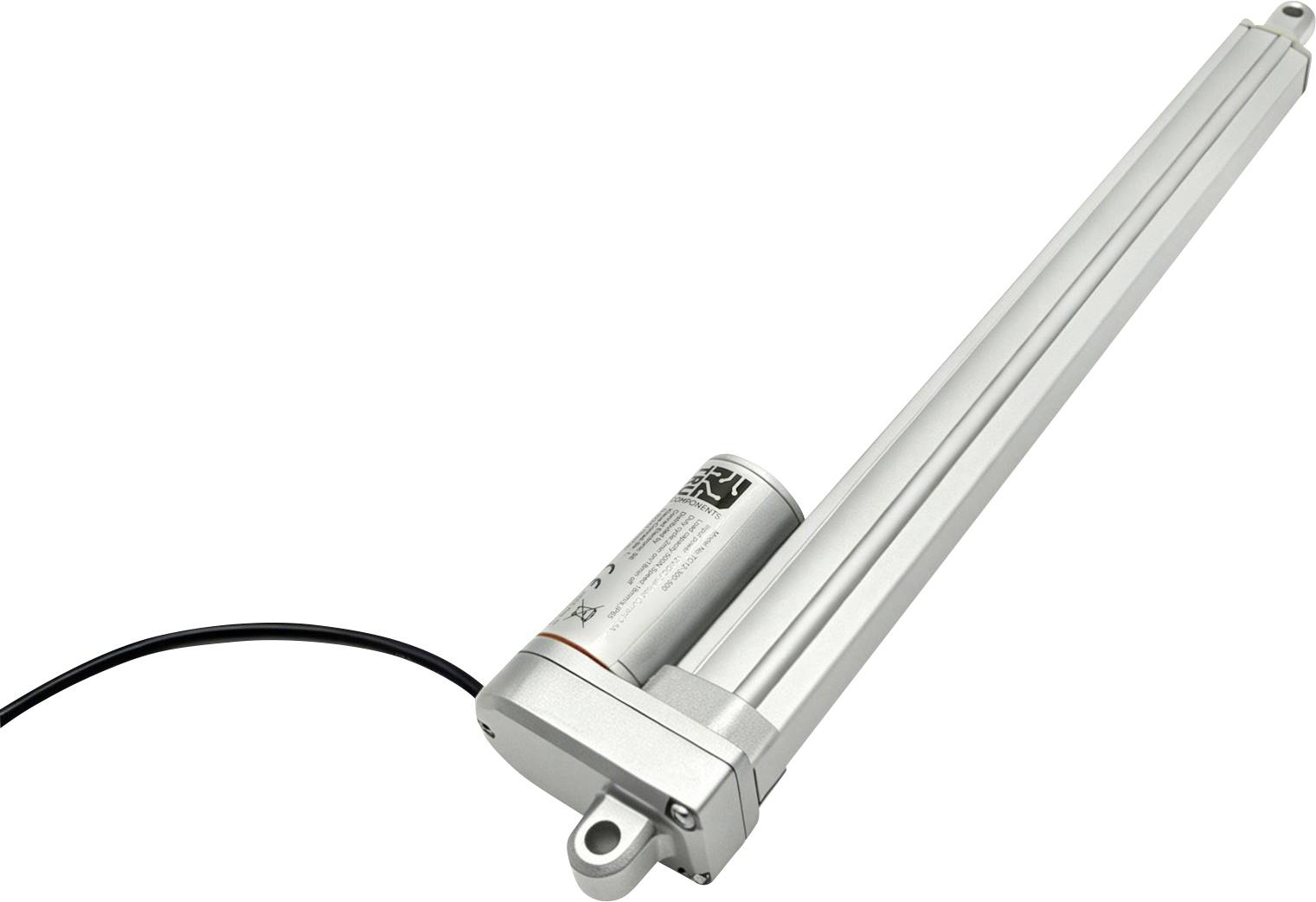

Silver linear actuator with extended dual rods and attached black power cable on a white background.

Silver linear actuator with extended dual rods and attached black power cable on a white background.

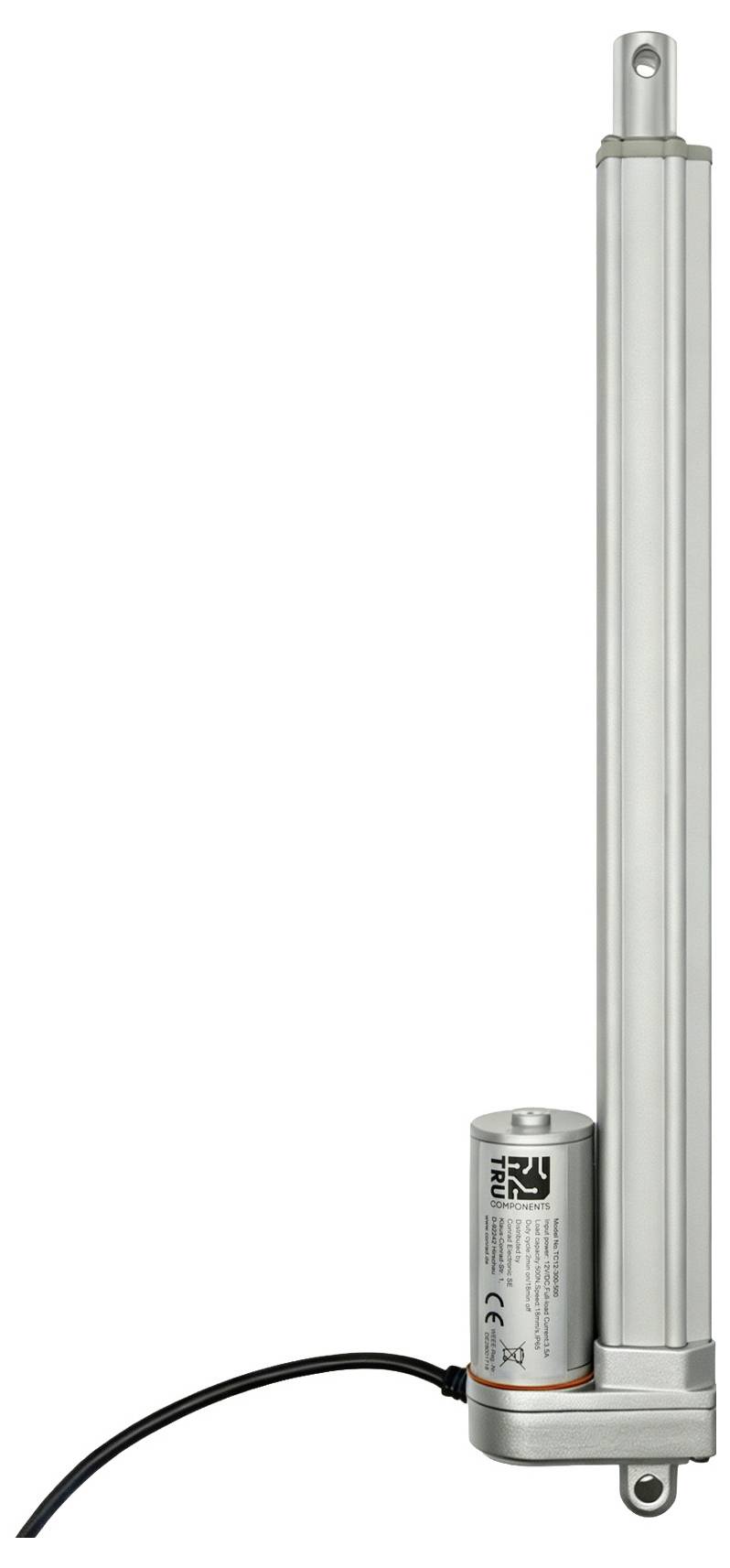

Silver electric linear actuator with attached black power cable and mounting brackets on a white background

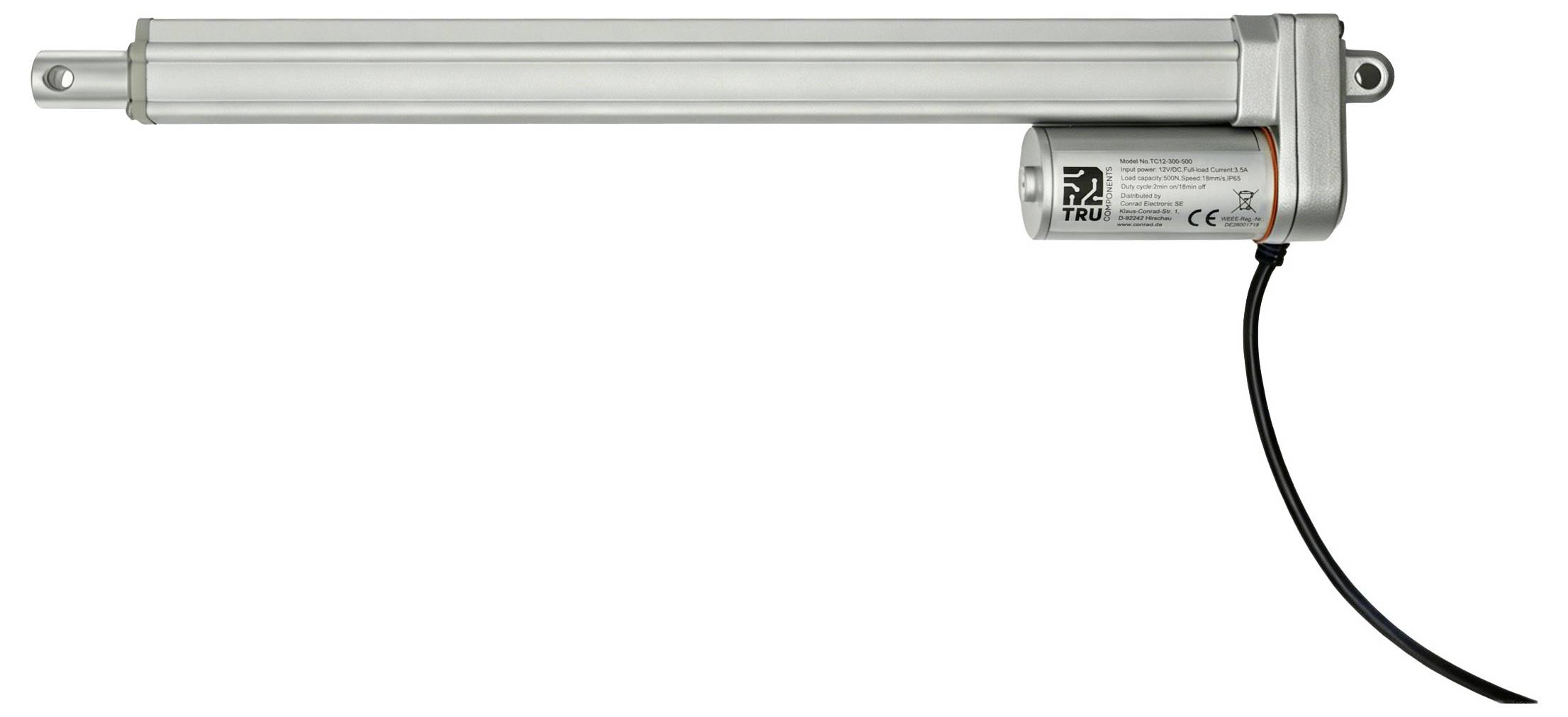

Electric linear actuator with a long silver housing, extending rod, and attached power cable on a white background

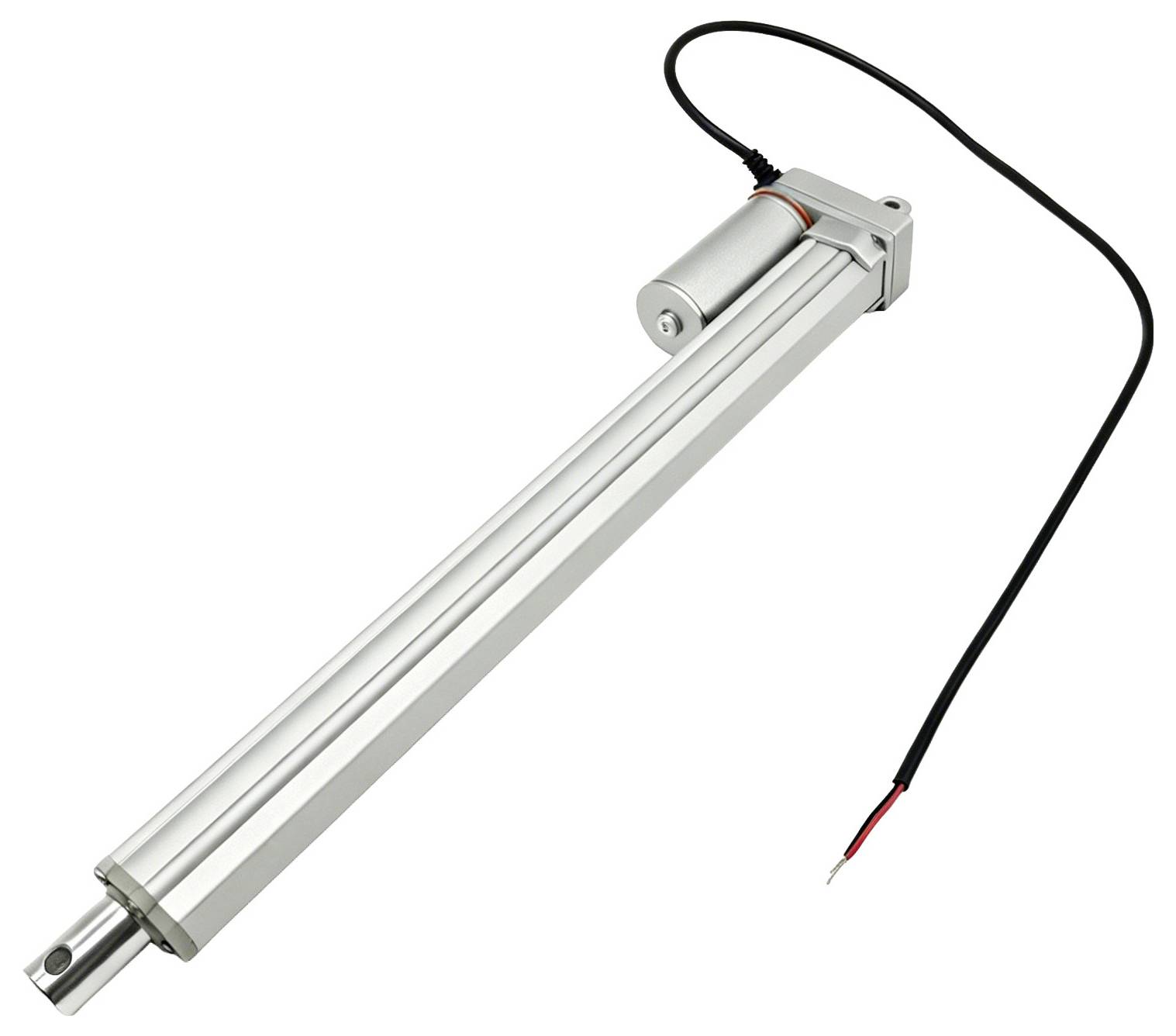

Long silver linear actuator with mounting brackets and a black power cable, shown isolated on a white background.

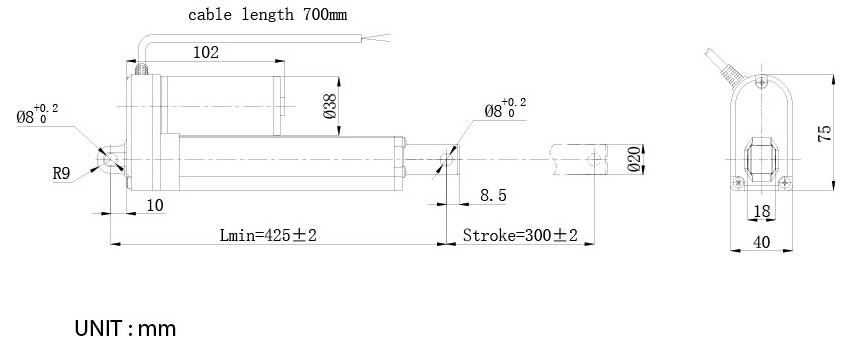

Technical drawing of a cable actuator, showing dimensions in millimeters, including cable length 700 mm, stroke 300±2, and minimum length 425±2.

1/5

TRU COMPONENTS

Product type

Linear actuator

Stroke length

300 mm

Speed (max.)

18 mm/s

Nominal voltage

12 V DC

Thrust

500 N

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Thu 12 Nov

44 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 69.99 / piece)

€ 69.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

TRU COMPONENTS Electric Cylinder TC12-300-500

Input voltage: 12 V DC
Stroke: 300 mm
Rated load current: 3.5 A
Load capacity: 500 N
Minimum installation size: 425 ± 2 mm
Cable Length: 700 mm
Protection class: IP65

Technical specifications

Product type: Linear actuator

Stroke length: 300 mm

Speed (max.): 18 mm/s

Nominal voltage: 12 V DC

Thrust: 500 N

Manufacturer part #: TC-14973384

Type: TC12-300-500

Thrust power: 500 N

Plastic free packaging: Plastic-free packaging

Documents & Downloads

Datasheet

Datasheet 3743346 TRU COMPONENTS Linear actuator TC12-300-500 TC-14973384 Stroke length 300 mm Thrust 500 N 12 V DC 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3743346 TRU COMPONENTS Linear actuator TC12-300-500 TC-14973384 Stroke length 300 mm Thrust 500 N 12 V DC 1 pc(s)
