Buy TRU COMPONENTS Linear actuator TC12-100-250 POT TC-14973280 Stroke length 100 mm Thrust 250 N 12 V DC 1 pc(s) | Conrad Electronic | Conrad Electronic » All parts of success

All things technology
Delivery within Europe
Right to Cancel applies
Specialist retailer since 1923

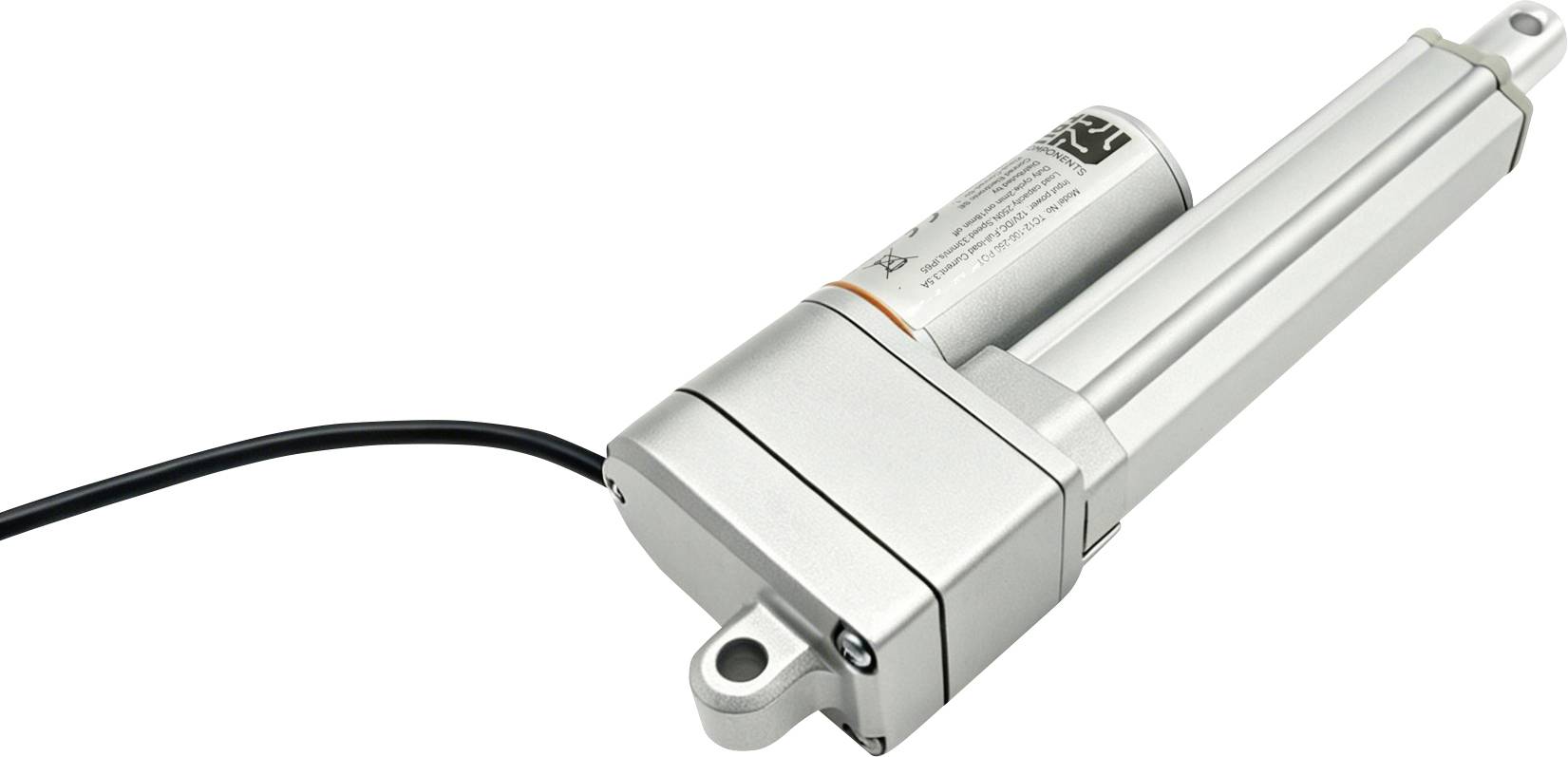

Silver electric linear actuator with a black power cable and mounting eyelets, shown on a white background.

Silver electric linear actuator with a black power cable and mounting eyelets, shown on a white background.

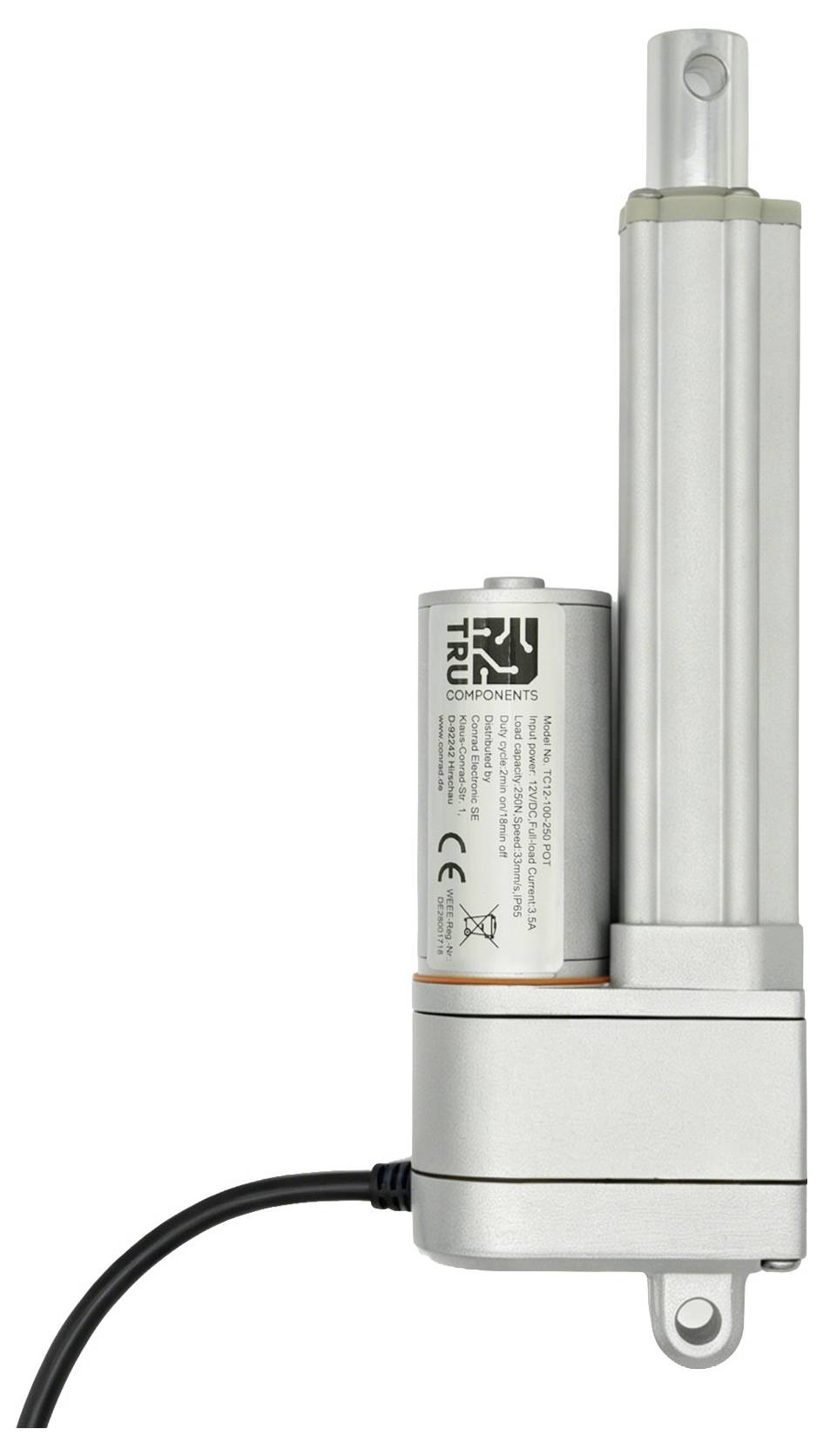

Compact electric linear actuator with a cylindrical motor and extended silver piston rod, shown on a white background with a power cable attached.

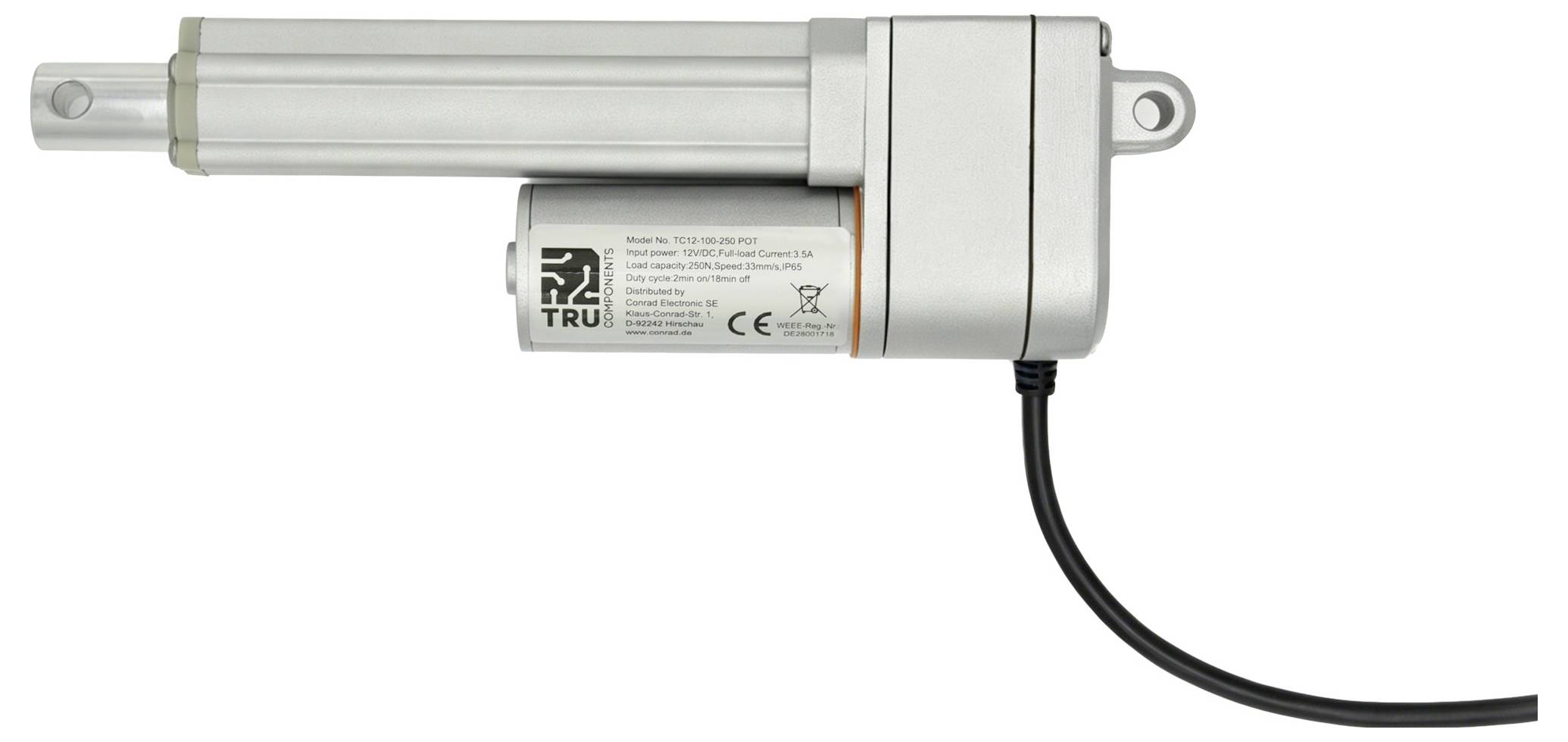

A silver electric linear actuator with mounting brackets and a black power cable, shown isolated on a white background.

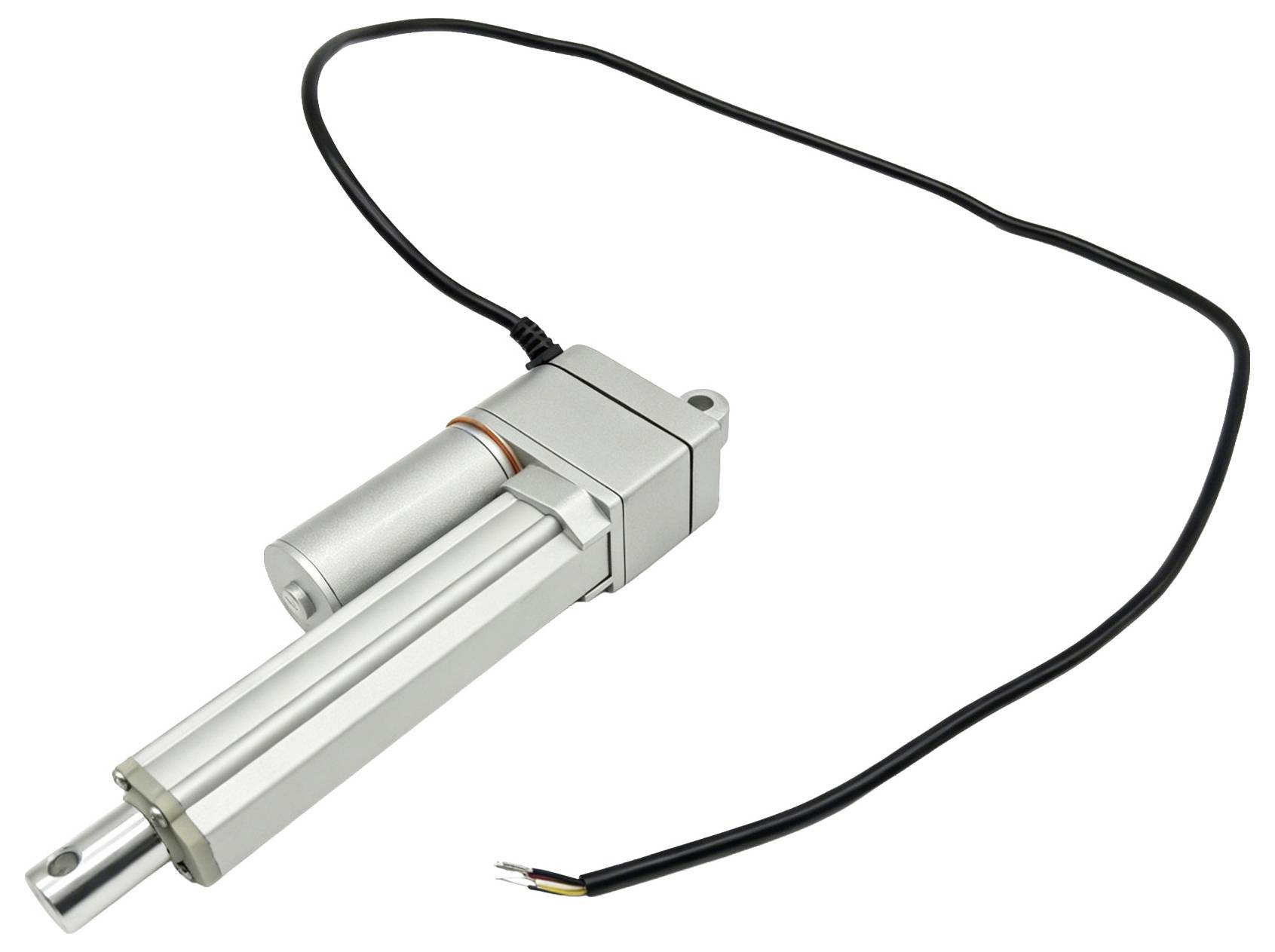

Electric linear actuator with attached black power cable and exposed wire ends on a white background.

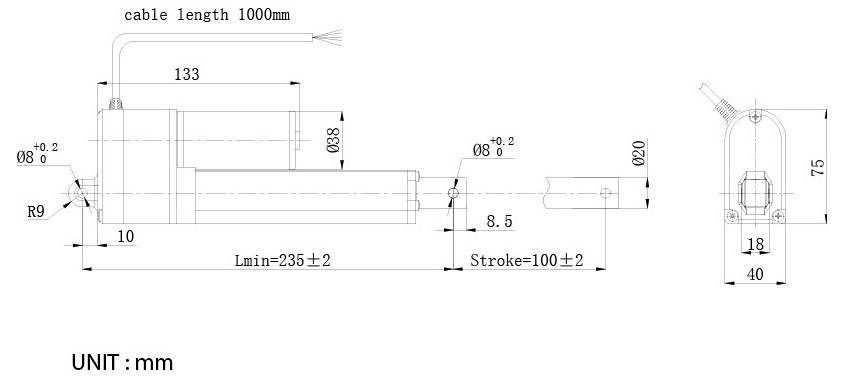

Technical drawing of a cylindrical part with cable length 1000 mm, showing key dimensions in millimeters including length 133, stroke 100±2, and diameter and mounting details.

1/5

TRU COMPONENTS

Product type

Linear actuator

Stroke length

100 mm

Speed (max.)

33 mm/s

Nominal voltage

12 V DC

Thrust

250 N

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Thu 12 Nov

44 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 81.99 / piece)

€ 81.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

TRU COMPONENTS Electric Cylinder TC12-100-250 POT

Input voltage: 12 V DC
Stroke: 100 mm
Rated load current: 3.5 A
Load capacity: 250 N
Minimum installation size: 235 ± 2 mm
Cable Length: 1000 mm
Protection class: IP65
Built-in potentiometer

Technical specifications

Built-in Potentiometer

Product type: Linear actuator

Stroke length: 100 mm

Speed (max.): 33 mm/s

Nominal voltage: 12 V DC

Type: Potentiometer

Thrust: 250 N

Manufacturer part #: TC-14973280

Type: TC12-100-250 POT

Features: Built-in potentiometer

Thrust power: 250 N

Plastic free packaging: Plastic-free packaging

Documents & Downloads

Datasheet

Datasheet 3743320 TRU COMPONENTS Linear actuator TC12-100-250 POT TC-14973280 Stroke length 100 mm Thrust 250 N 12 V DC 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3743320 TRU COMPONENTS Linear actuator TC12-100-250 POT TC-14973280 Stroke length 100 mm Thrust 250 N 12 V DC 1 pc(s)
