Buy TRU COMPONENTS Linear actuator TC12-100-500 POT TC-14973288 Stroke length 100 mm Thrust 500 N 12 V DC 1 pc(s) | Conrad Electronic | Conrad Electronic » All parts of success

All things technology
Delivery within Europe
Right to Cancel applies
Specialist retailer since 1923

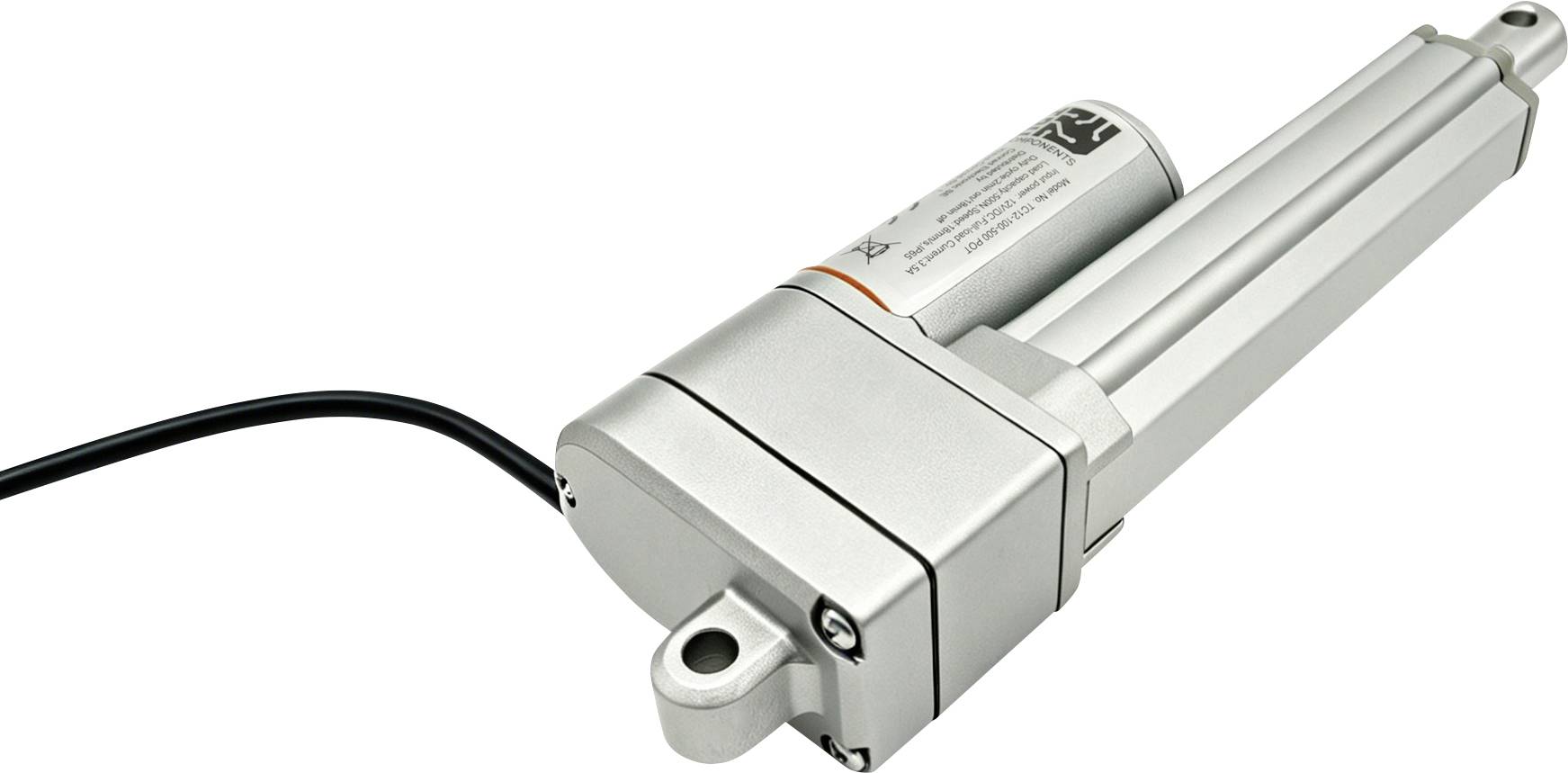

Silver electric linear actuator with attached power cable and mounting bracket, shown on a white background.

Silver electric linear actuator with attached power cable and mounting bracket, shown on a white background.

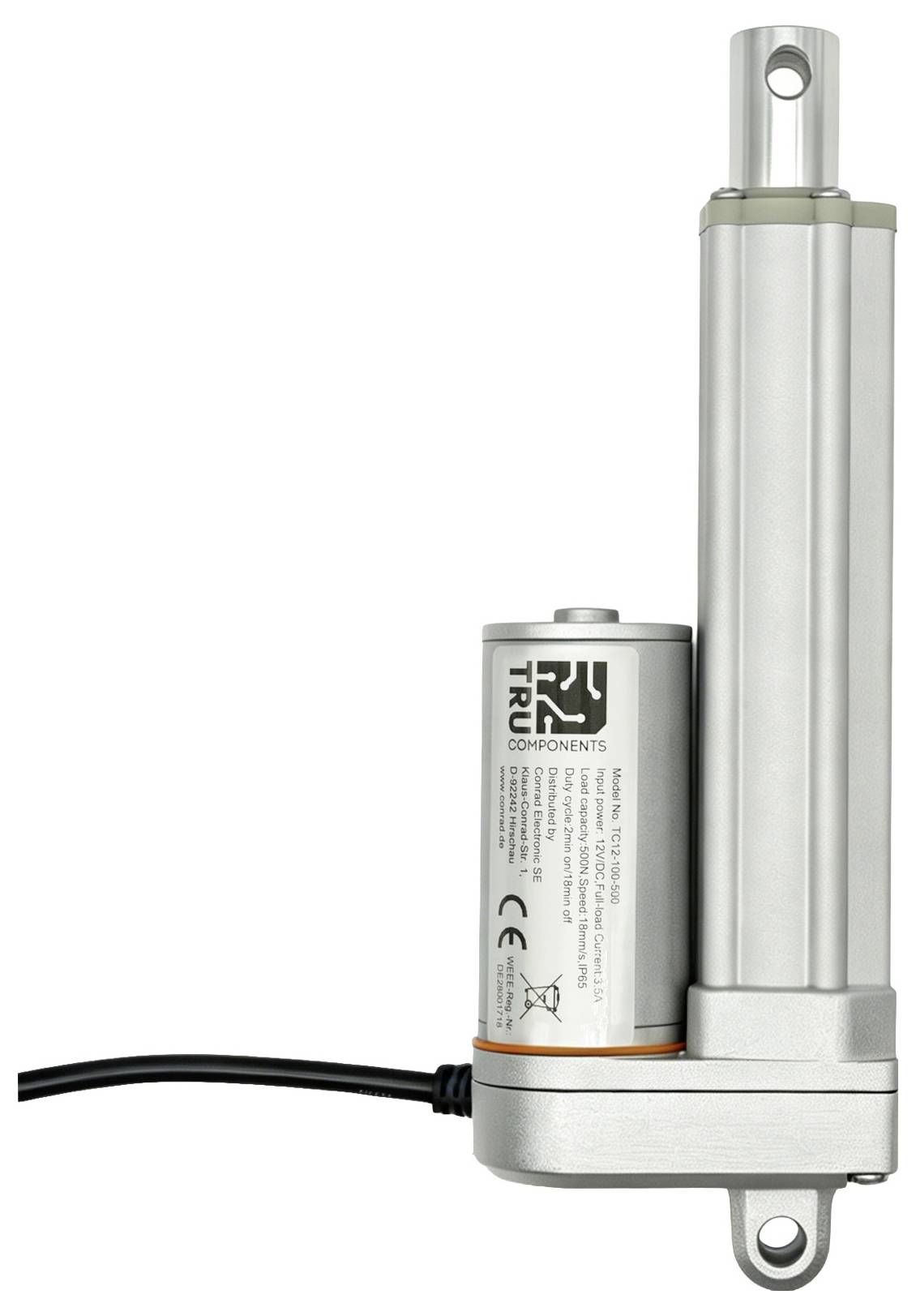

Silver linear actuator motor with cable and mounting brackets on a white background.

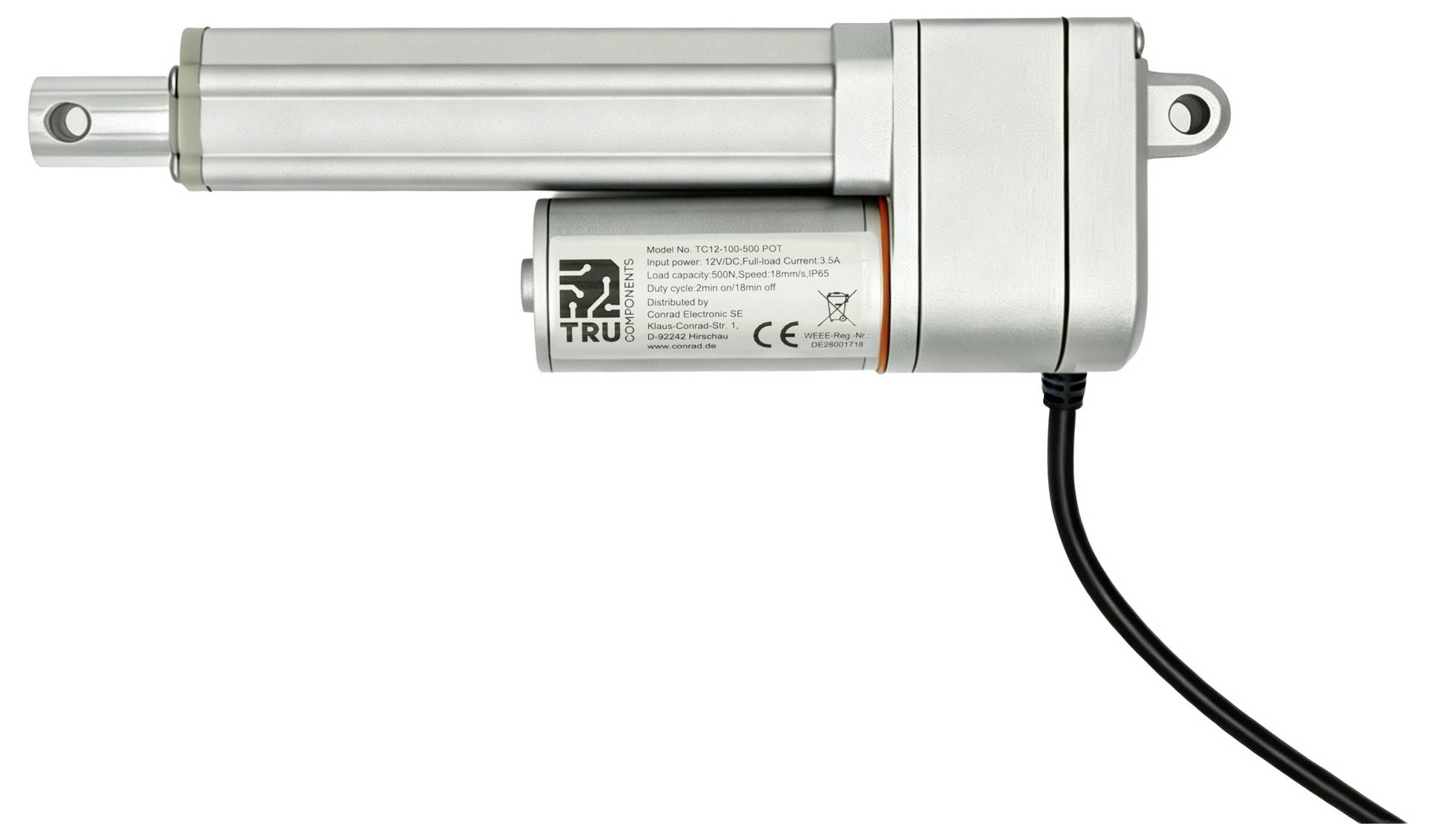

Silver electric linear actuator with extended rod, mounting eyelets, and attached power cable on a white background.

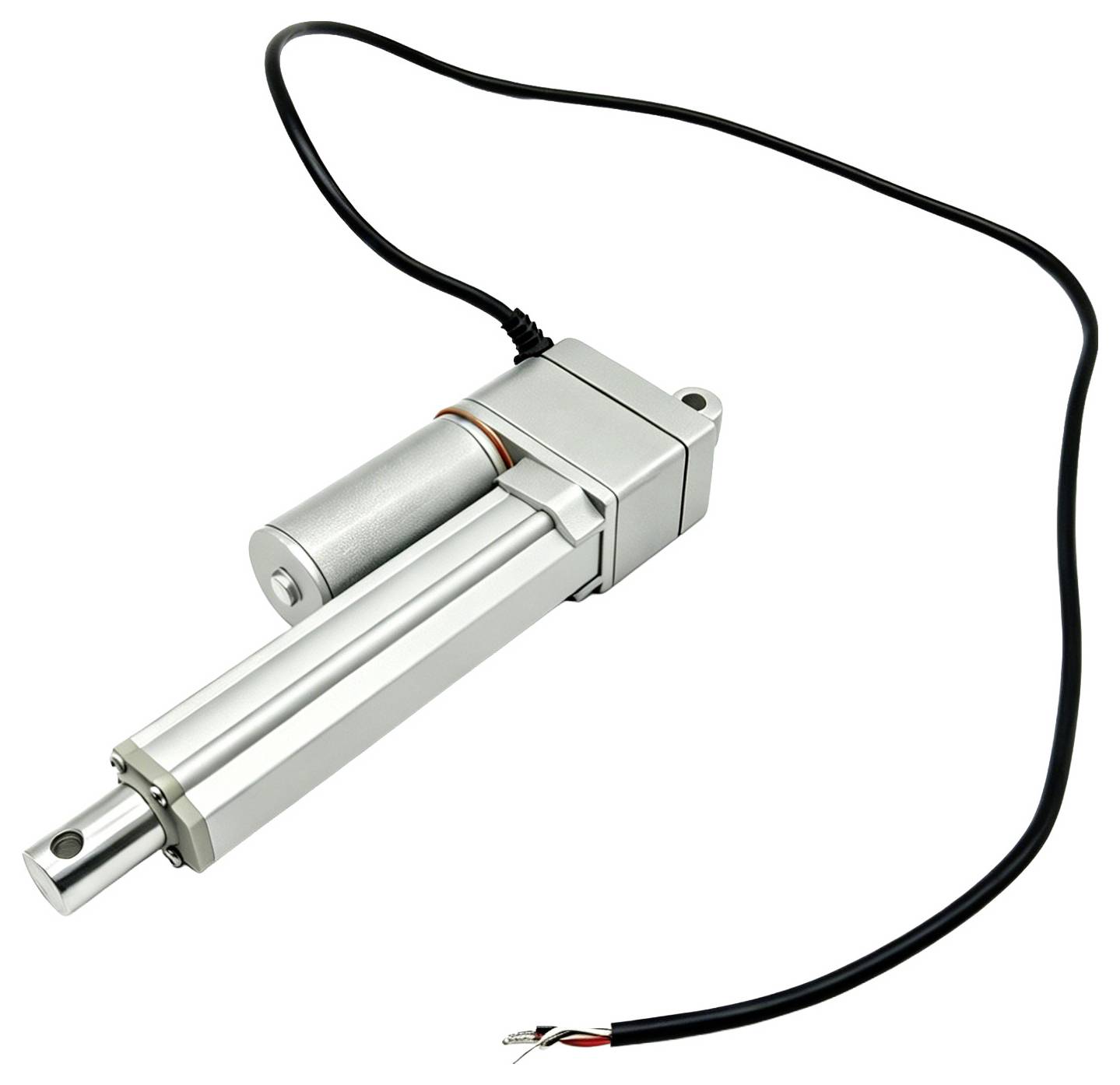

Electric linear actuator with attached power cable and mounting bracket, shown isolated on a white background.

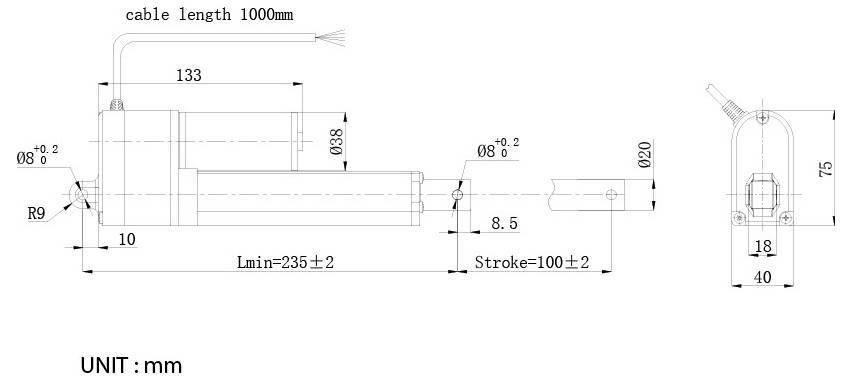

Technical dimension drawing of a linear actuator in mm, showing cable length 1000 mm, body and mounting measurements, stroke 100±2, and overall minimum length 235±2.

1/5

TRU COMPONENTS

Product type

Linear actuator

Stroke length

100 mm

Speed (max.)

18 mm/s

Nominal voltage

12 V DC

Thrust

500 N

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Thu 12 Nov

45 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 81.99 / piece)

€ 81.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

TRU COMPONENTS Electric Cylinder TC12-100-500 POT

Input voltage: 12 V DC
Stroke: 100 mm
Rated load current: 3.5 A
Load capacity: 500 N
Minimum installation size: 235 ± 2 mm
Cable Length: 1000 mm
Protection class: IP65
Built-in potentiometer

Technical specifications

Built-in Potentiometer

Product type: Linear actuator

Stroke length: 100 mm

Speed (max.): 18 mm/s

Nominal voltage: 12 V DC

Type: Potentiometer

Thrust: 500 N

Manufacturer part #: TC-14973288

Type: TC12-100-500 POT

Features: Built-in potentiometer

Thrust power: 500 N

Plastic free packaging: Plastic-free packaging

Documents & Downloads

Datasheet

Datasheet 3743322 TRU COMPONENTS Linear actuator TC12-100-500 POT TC-14973288 Stroke length 100 mm Thrust 500 N 12 V DC 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3743322 TRU COMPONENTS Linear actuator TC12-100-500 POT TC-14973288 Stroke length 100 mm Thrust 500 N 12 V DC 1 pc(s)
