Buy TRU COMPONENTS Linear actuator TC12-300-500 HS TC-14973380 Stroke length 300 mm Thrust 500 N 12 V DC 1 pc(s) | Conrad Electronic | Conrad Electronic » All parts of success

All things technology
Delivery within Europe
Right to Cancel applies
Specialist retailer since 1923

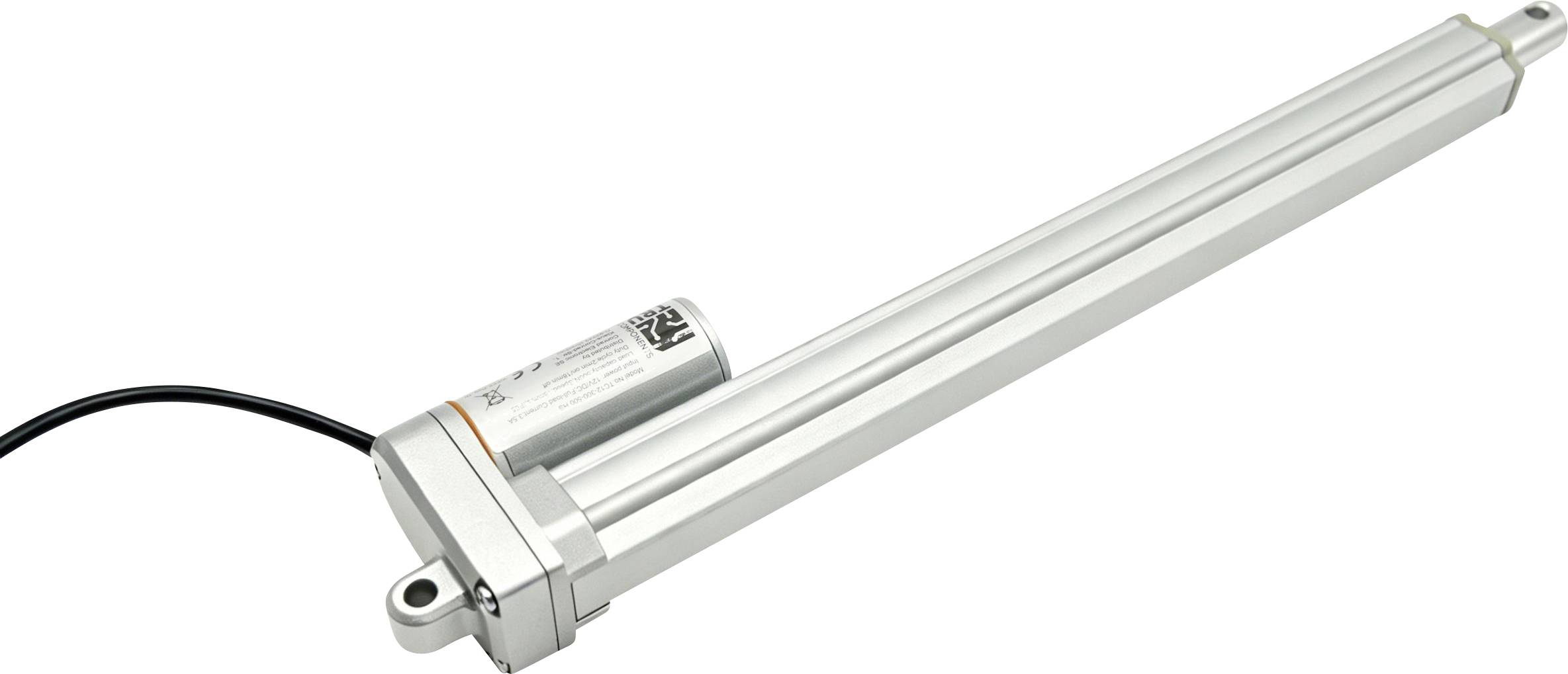

An electric linear actuator with a silver cylindrical body, black power cable, and mounting bracket on one end.

An electric linear actuator with a silver cylindrical body, black power cable, and mounting bracket on one end.

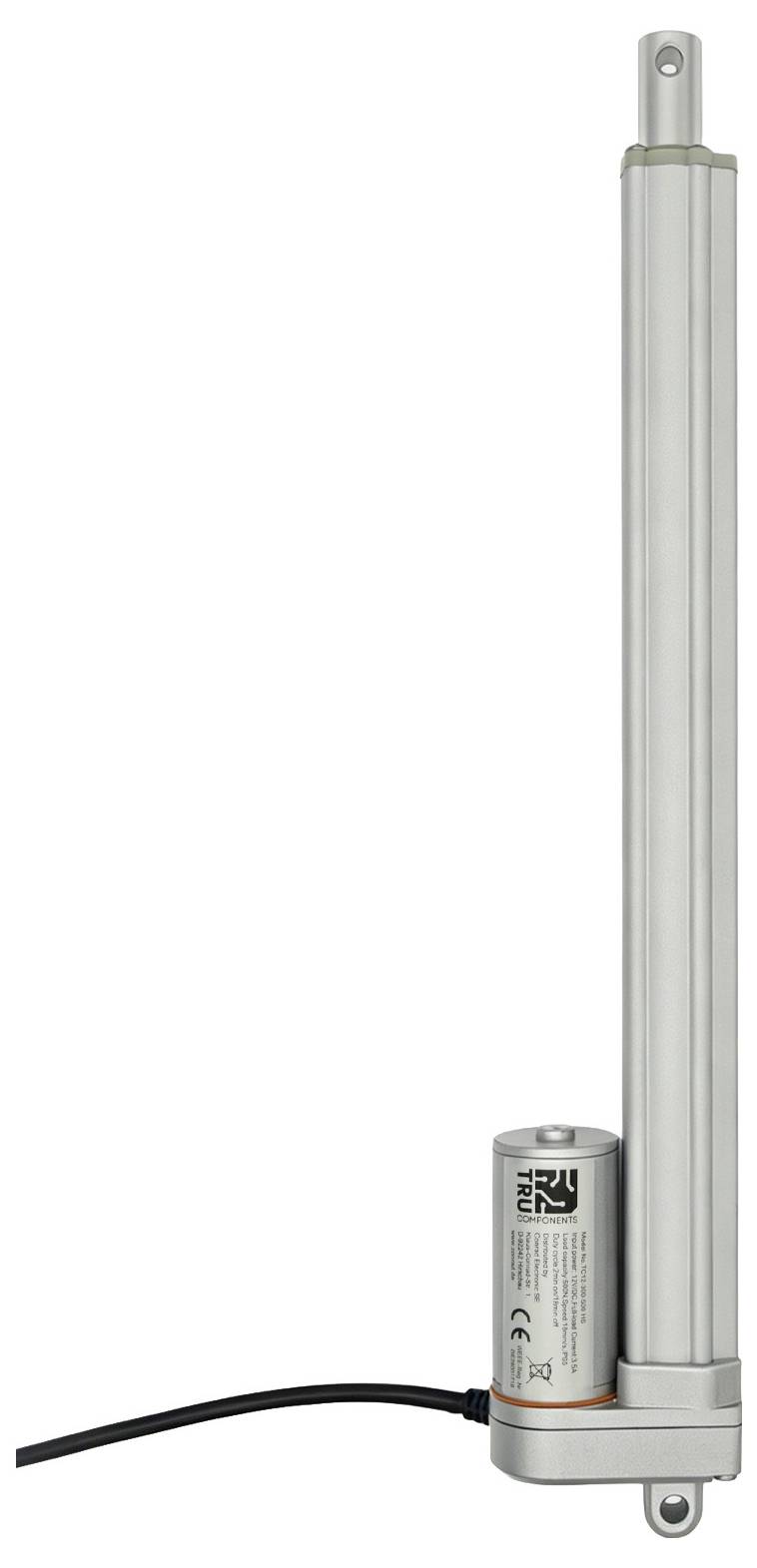

Vertical electric linear actuator with mounting brackets and a power cable attached, shown isolated on a white background.

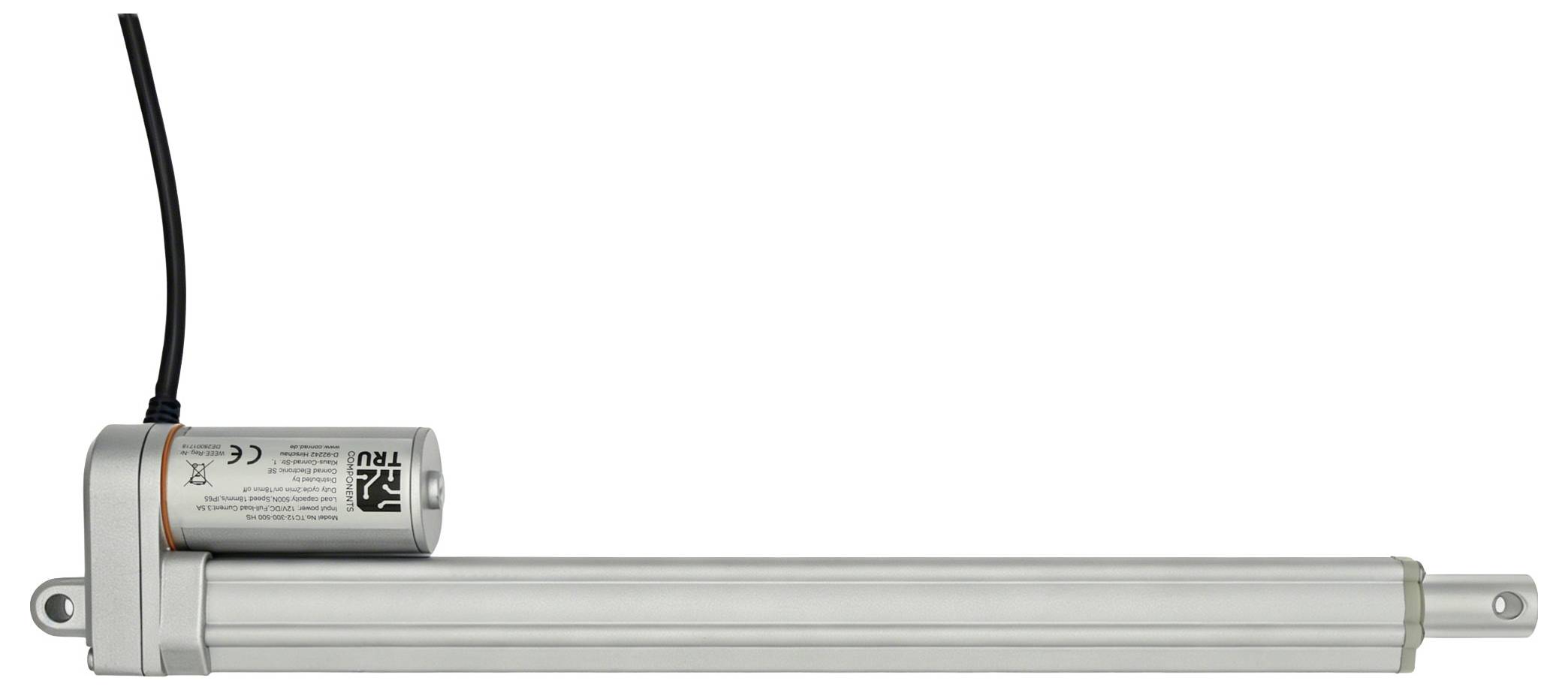

Linear actuator with attached motor and extending rod, shown on a white background.

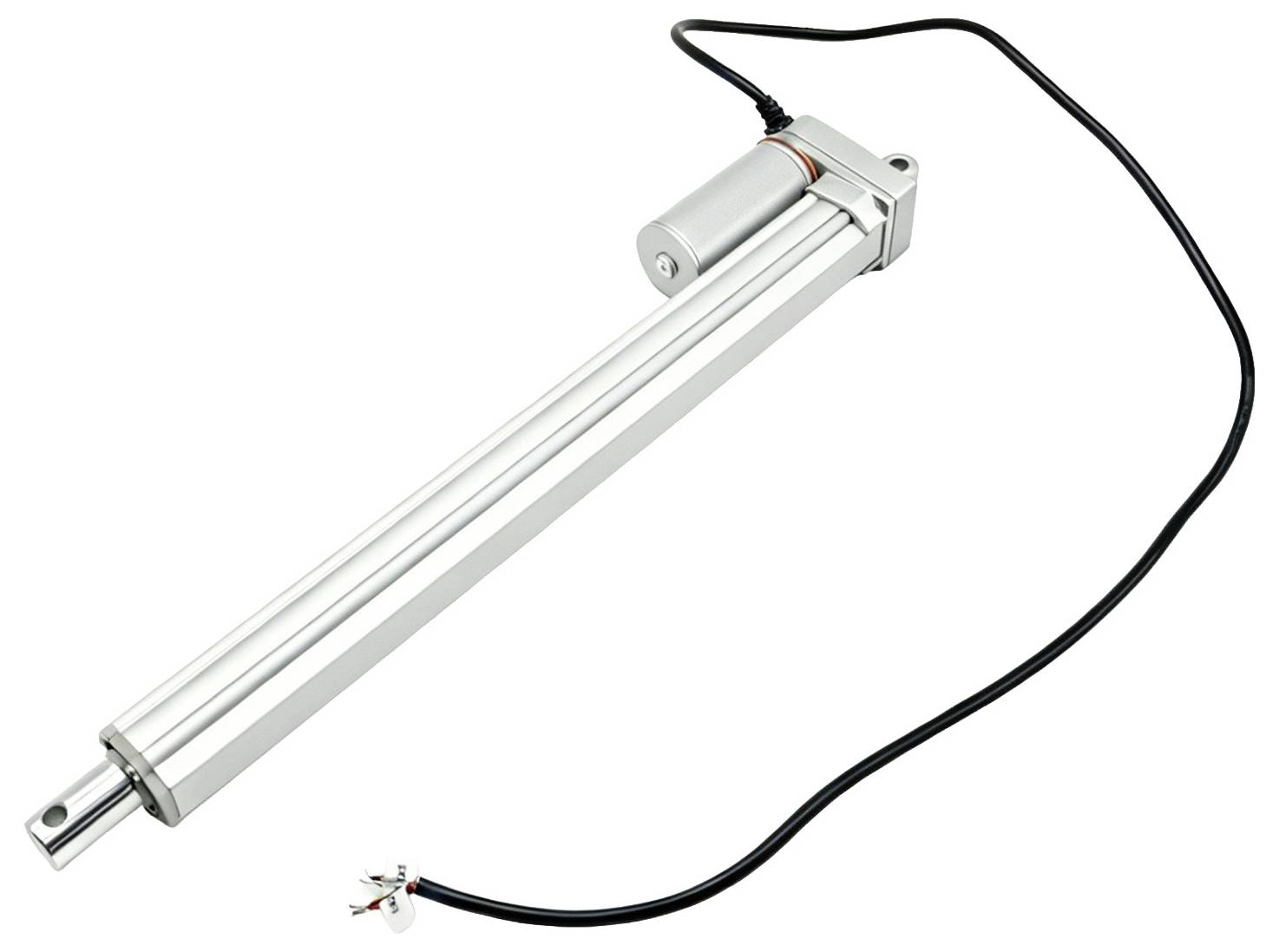

Silver linear actuator with attached black power cable and mounting ends on a white background.<br>

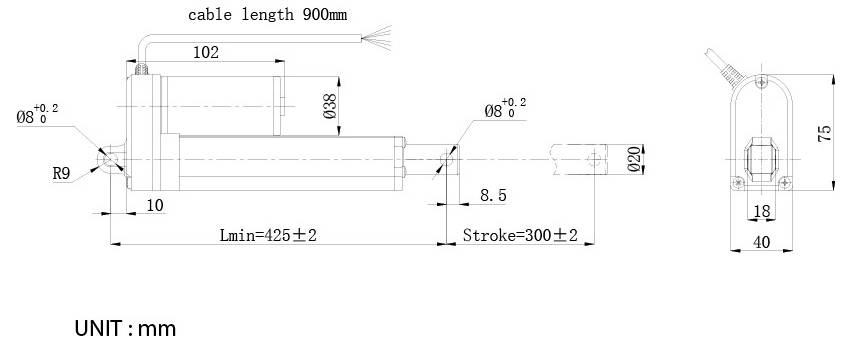

Technical drawing of a linear actuator showing dimensions in millimeters, including 900 mm cable length, 425±2 mm minimum length, 300±2 mm stroke, and mounting/end-view measurements.

1/5

TRU COMPONENTS

Product type

Linear actuator

Stroke length

300 mm

Speed (max.)

18 mm/s

Nominal voltage

12 V DC

Thrust

500 N

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Thu 12 Nov

47 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 85.99 / piece)

€ 85.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

TRU COMPONENTS Electric Cylinder TC12-300-500 HS

Input voltage: 12 V DC
Stroke: 300 mm
Rated load current: 3.5 A
Load capacity: 500 N
Minimum installation size: 425 ± 2 mm
Cable Length: 900 mm
Protection class: IP65
Built-in hall sensor

Technical specifications

Built-in Hall effect sensor

Product type: Linear actuator

Stroke length: 300 mm

Speed (max.): 18 mm/s

Nominal voltage: 12 V DC

Type: Hall-effect sensor

Thrust: 500 N

Manufacturer part #: TC-14973380

Type: TC12-300-500 HS

Features: Hall effect sensor

Thrust power: 500 N

Plastic free packaging: Plastic-free packaging
