Buy TRU COMPONENTS Linear actuator TC12-300-500 POT TC-14973376 Stroke length 300 mm Thrust 500 N 12 V DC 1 pc(s) | Conrad Electronic | Conrad Electronic » All parts of success

All things technology
Delivery within Europe
Right to Cancel applies
Specialist retailer since 1923

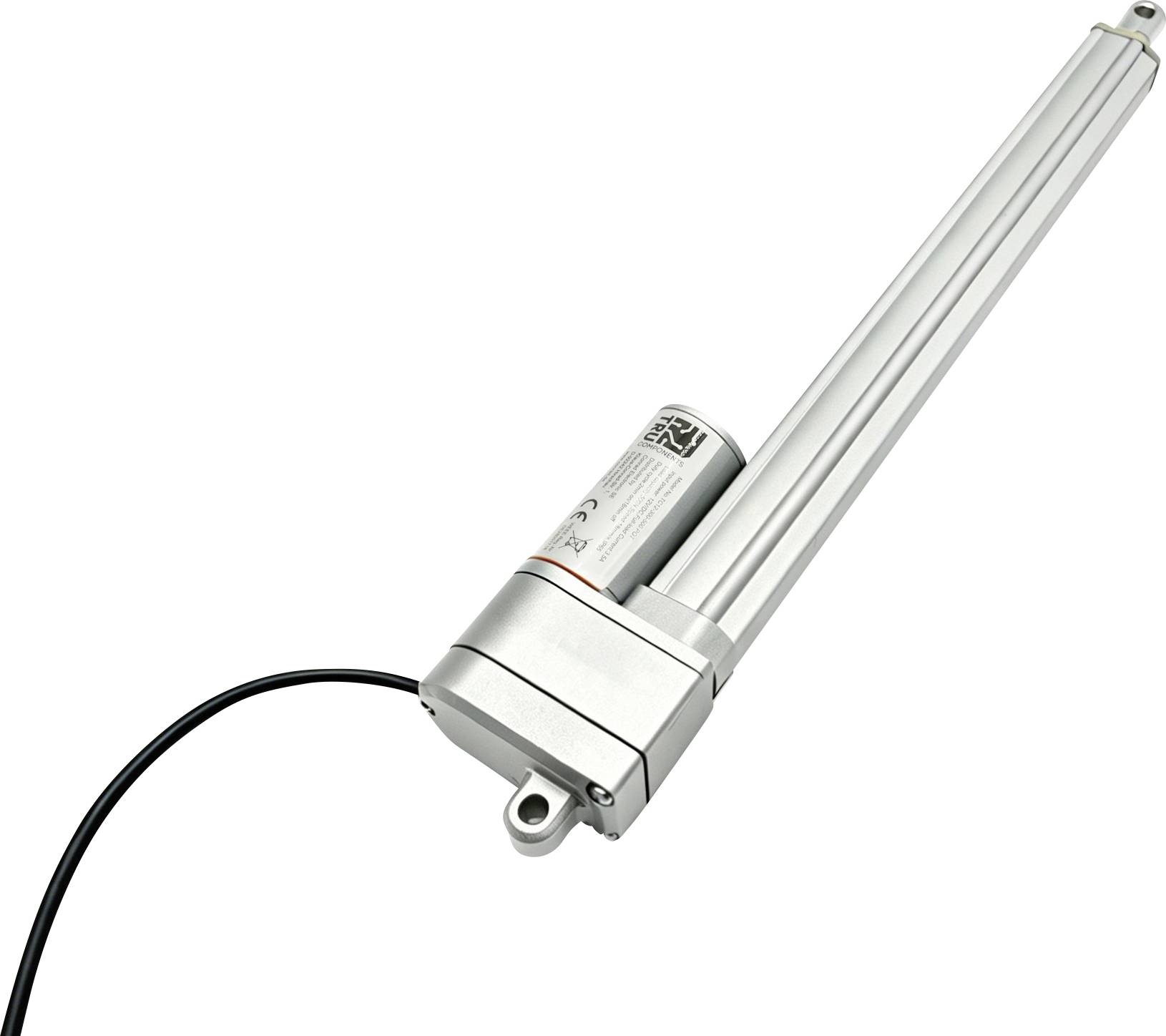

Silver electric linear actuator with cable, shown on a white background.

Silver electric linear actuator with cable, shown on a white background.

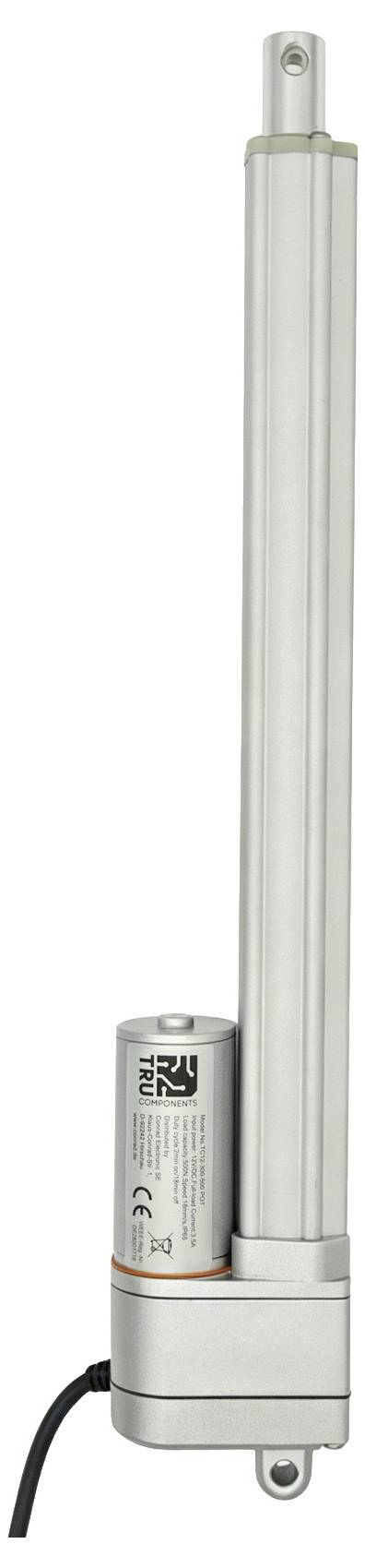

Silver electric linear actuator with a small attached cylindrical component and power cable, shown vertically on a plain white background

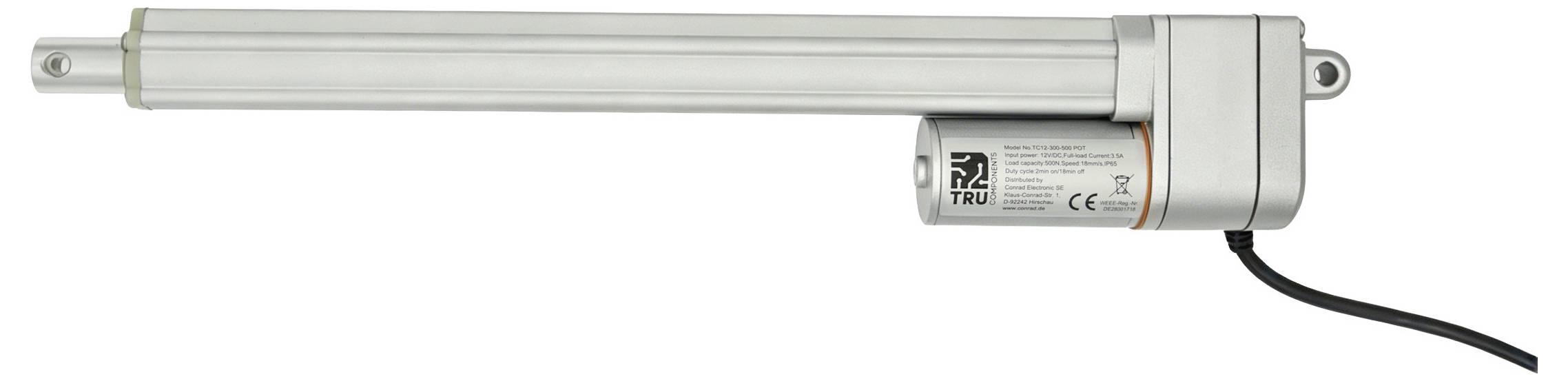

Long silver electric linear actuator with a cable and mounting brackets, shown on a white background.

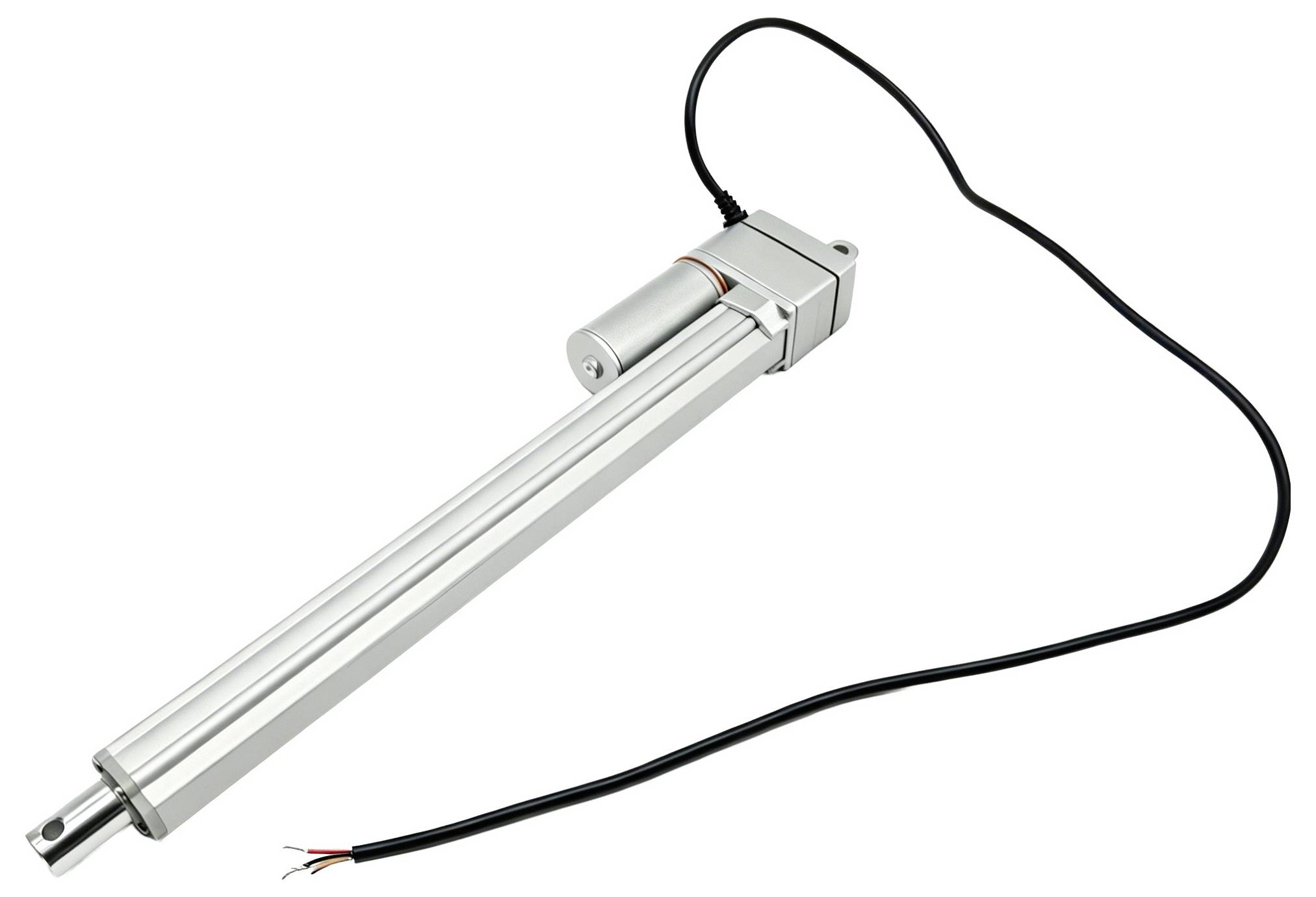

Industrial electric linear actuator with long silver rod, attached black power cable, shown on white background.

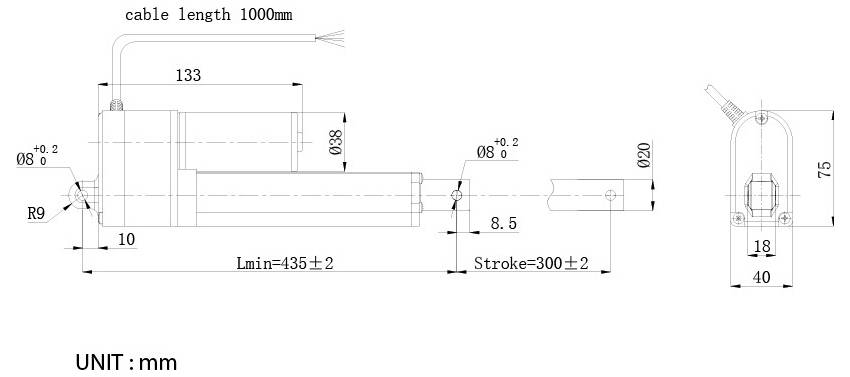

Technical dimension drawing of a cylindrical actuator with cable length 1000 mm, showing key measurements in mm including 133, 435±2 minimum, and 300±2 stroke.

1/5

TRU COMPONENTS

Product type

Linear actuator

Stroke length

300 mm

Speed (max.)

18 mm/s

Nominal voltage

12 V DC

Thrust

500 N

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Thu 12 Nov

47 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 91.99 / piece)

€ 91.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

TRU COMPONENTS Electric Cylinder TC12-300-500 POT

Input voltage: 12 V DC
Stroke: 300 mm
Rated load current: 3.5 A
Load capacity: 500 N
Minimum installation size: 435 ± 2 mm
Cable Length: 1000 mm
Protection class: IP65
Built-in potentiometer

Technical specifications

Built-in Potentiometer

Product type: Linear actuator

Stroke length: 300 mm

Speed (max.): 18 mm/s

Nominal voltage: 12 V DC

Type: Potentiometer

Thrust: 500 N

Manufacturer part #: TC-14973376

Type: TC12-300-500 POT

Features: Built-in potentiometer

Thrust power: 500 N

Plastic free packaging: Plastic-free packaging

Documents & Downloads

Datasheet

Datasheet 3743344 TRU COMPONENTS Linear actuator TC12-300-500 POT TC-14973376 Stroke length 300 mm Thrust 500 N 12 V DC 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3743344 TRU COMPONENTS Linear actuator TC12-300-500 POT TC-14973376 Stroke length 300 mm Thrust 500 N 12 V DC 1 pc(s)
