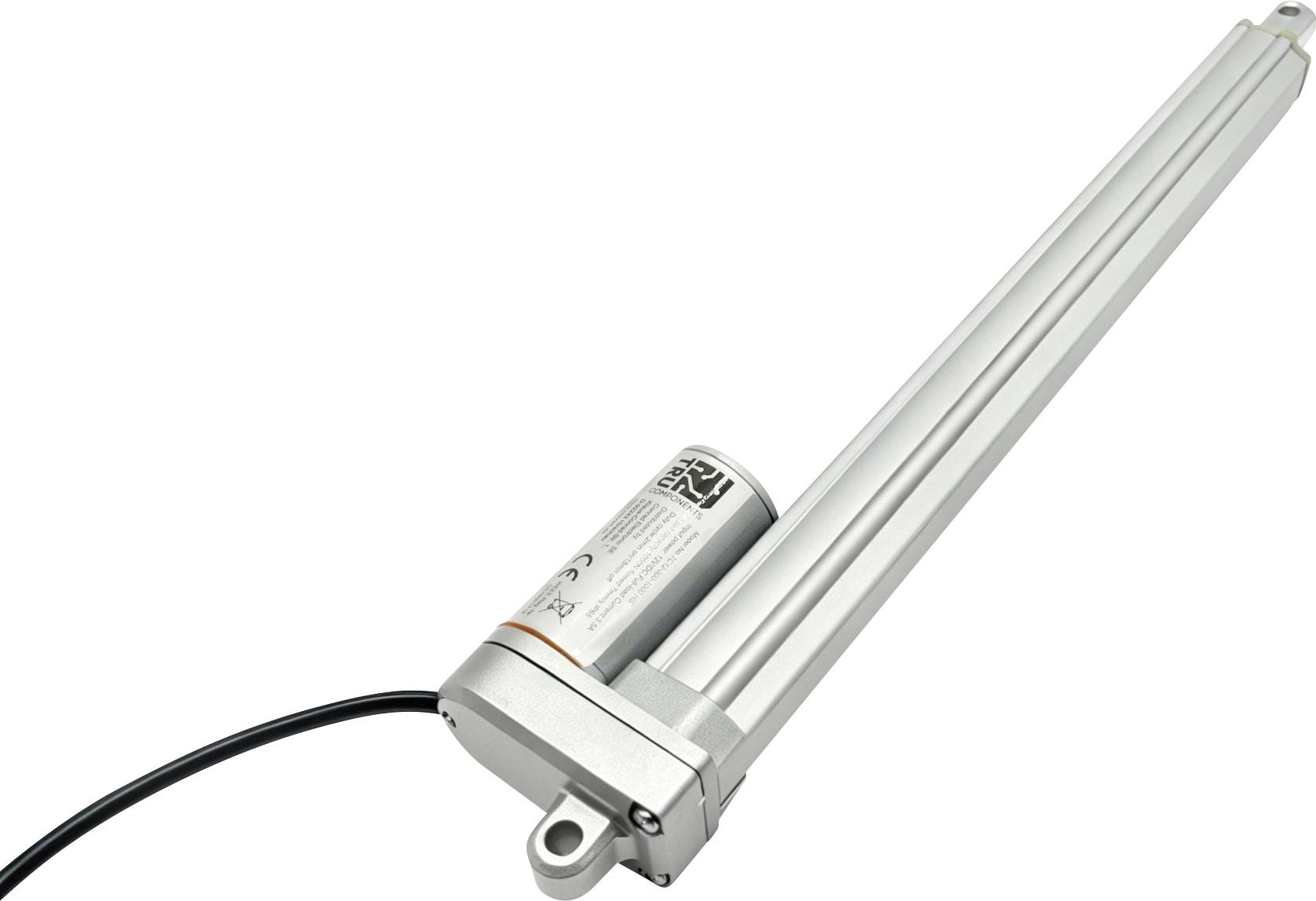

Electric linear actuator with silver housing, dual extended rods, mounting eyelet, and attached black power cable on a white background.

Electric linear actuator with silver housing, dual extended rods, mounting eyelet, and attached black power cable on a white background.

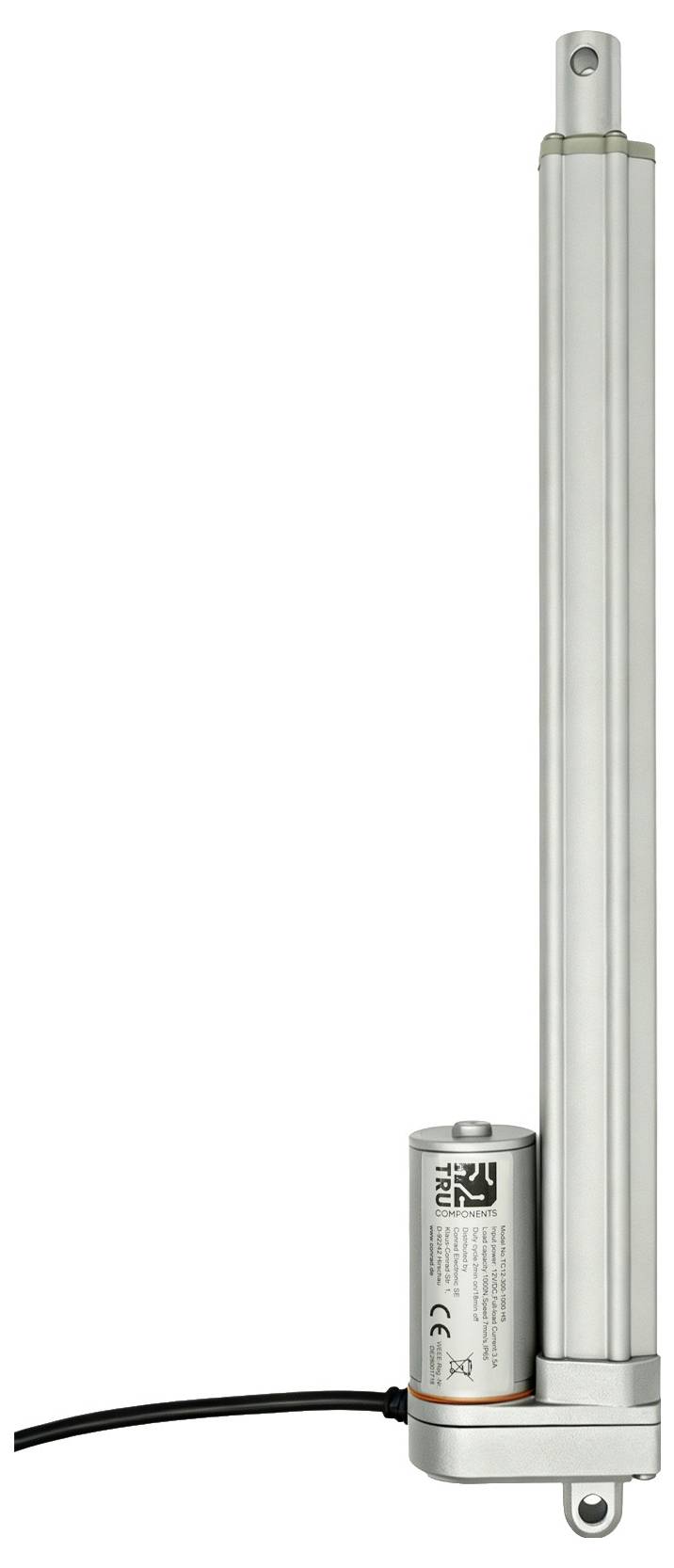

Compact linear actuator with a small electric motor at the base and a long vertical sliding rod, shown on a white background.

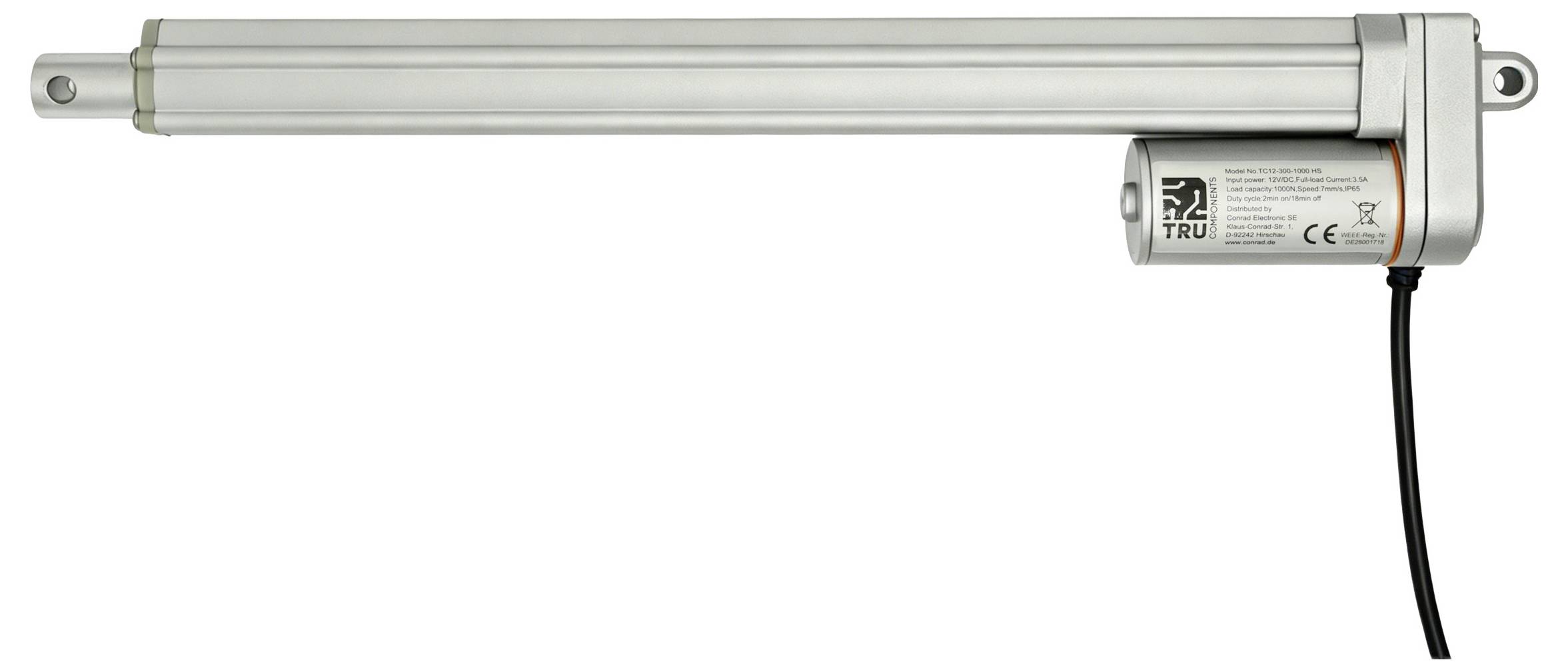

Electric linear actuator with extended silver rod and black power cable attached to the right end.

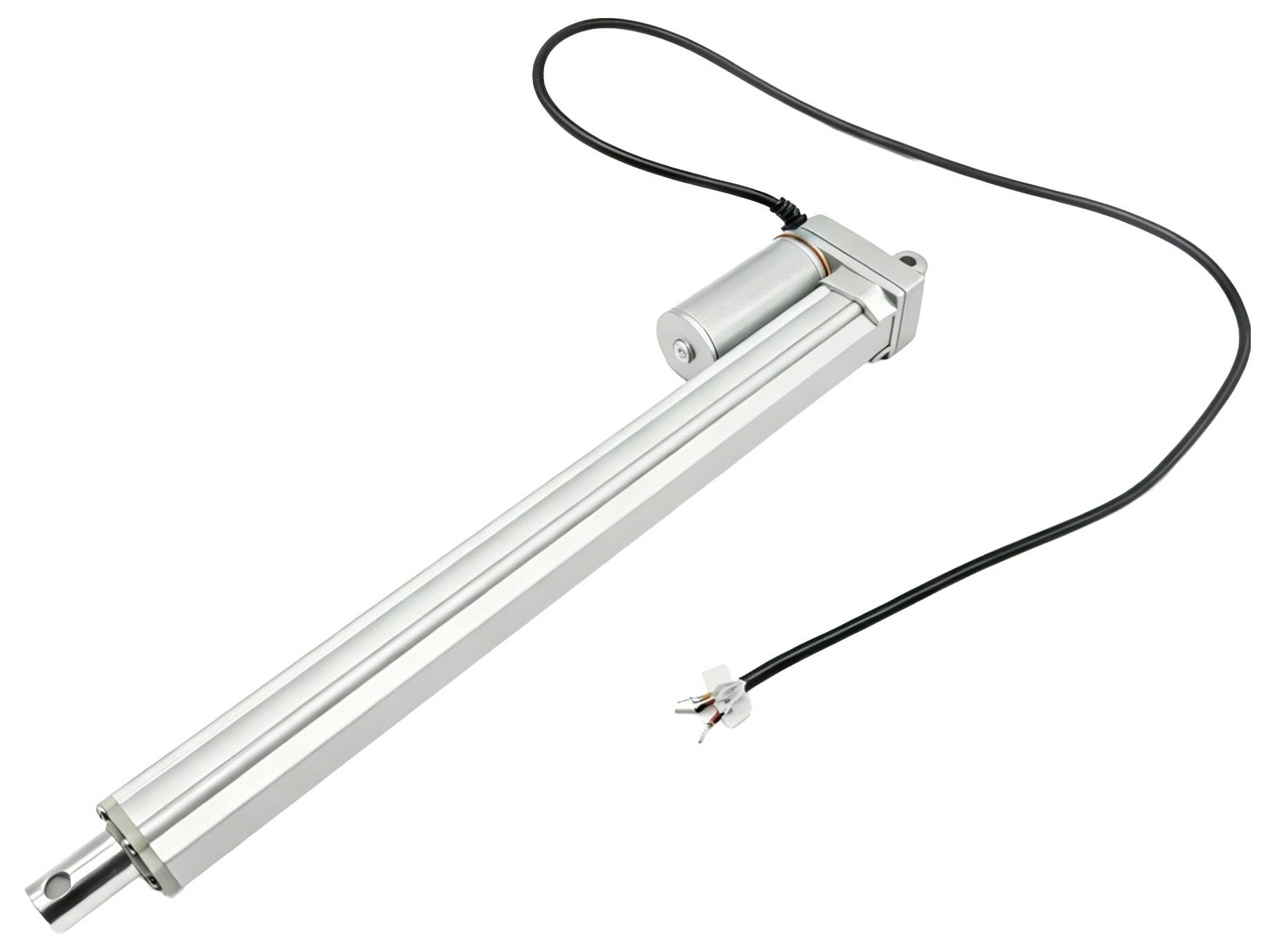

A silver linear actuator with a black power cable and connector, shown on a white background.<br>

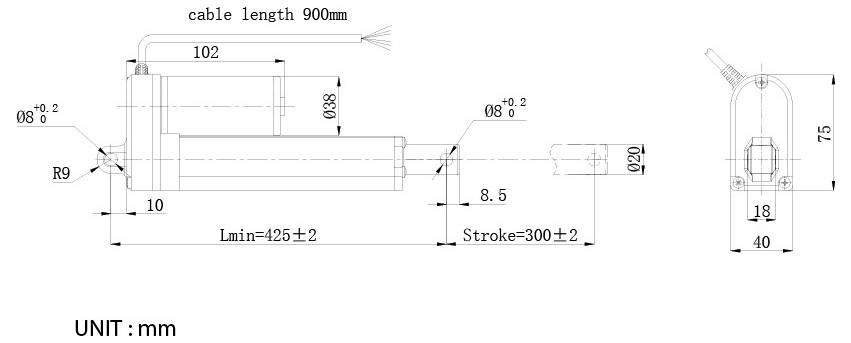

Technical drawing of a linear actuator in millimeters, showing front and side views with dimensions, stroke 300±2, minimum length 425±2, and cable length 900 mm.

1/5

TRU COMPONENTS

Product type

Linear actuator

Stroke length

300 mm

Speed (max.)

7 mm/s

Nominal voltage

12 V DC

Thrust

1000 N

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Thu 12 Nov

45 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 85.99 / piece)

€ 85.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

TRU COMPONENTS Electric Cylinder TC12-300-1000 HS

Input voltage: 12 V DC
Stroke: 300 mm
Rated load current: 3.5 A
Load capacity: 1000 N
Minimum installation size: 425 ± 2 mm
Cable Length: 900 mm
Protection class: IP65
Built-in hall sensor

Technical specifications

Built-in Hall effect sensor

Product type: Linear actuator

Stroke length: 300 mm

Speed (max.): 7 mm/s

Nominal voltage: 12 V DC

Type: Hall-effect sensor

Thrust: 1000 N

Manufacturer part #: TC-14973392

Type: TC12-300-1000 HS

Features: Hall effect sensor

Thrust power: 1000 N

Plastic free packaging: Plastic-free packaging

Documents & Downloads

Datasheet

Datasheet 3743348 TRU COMPONENTS Linear actuator TC12-300-1000 HS TC-14973392 Stroke length 300 mm Thrust 1000 N 12 V DC 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3743348 TRU COMPONENTS Linear actuator TC12-300-1000 HS TC-14973392 Stroke length 300 mm Thrust 1000 N 12 V DC 1 pc(s)
