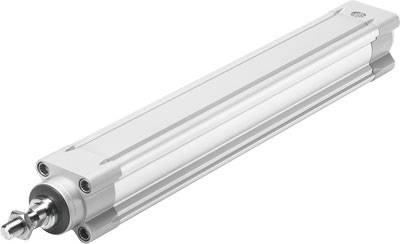

FESTO Linear actuator ESBF-LS-40-300-3P 8022587 Stroke length 300 mm 1 pc(s)
EAN:
Part number:
Item no:
Speed (max.)
0.15 m/s
Stroke length
300 mm
Product type
Linear actuator
Manufacturer part #
8022587
Type
ESBF-LS-40-300-3P
Datasheet (PDF)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Total (€ 1,129.00 / piece)
€ 1,129.00
incl. VAT
Only available for business customers
14-day return policy includedHighlights & Details
Linear actuator ESBF-LS-40-300-3P
Technical specifications
- Electric cylinder ESBF-LS -40-300-3P with sliding screw drive, electrically driven spindle the rotary motion of the motor into a linear movement of the piston rod. Working stroke = 300 mm, size = 40, Hub = 300 mm, Piston Rod Thread = M12 x 1.25, reversing clearance = 100 µm, material cylinder tube = aluminum wrought alloy
- Manufacturer part #
8022587
- Type
ESBF-LS-40-300-3P
IP40
- Size
40
- Speed (max.)
0.15 m/s
- Stroke length
300 mm
- Max. ambient temperature
60 °C
- Min. ambient temperature
0 °C
- UKCA
not relevant
- Product type
Linear actuator
