Name: FESTO Rotary actuator 185945 DSM-10-240-P-A-FW Enclosure material: Aluminium 1 pc(s)
Brand: FESTO
SKU: 2116741
Availability: BackOrder

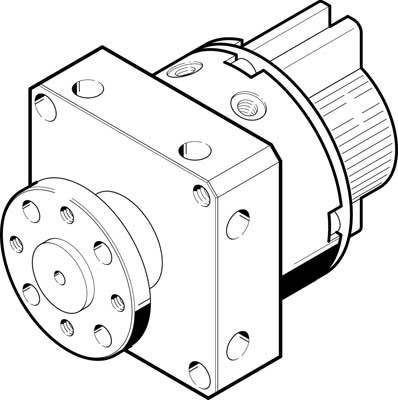

Technical drawing of a hydraulic motor with multiple screw holes and a cylindrical element on the right-hand side.

Image similar

Datasheet (PDF)

EAN:

Part number:

Item no:

Sales and shipping:

Conrad ElectronicTerms & Conditions

Total (€ 359.00 / piece)

€ 359.00

incl. VAT

Only available for business customers

14-day return policy included

Report legal concerns

Highlights & Details

Technical specifications

Swivel angle: 240 deg
Design: Swivel Wing

Operating medium: According to ISO 8573-1:2010 compressed air [7:4:4]

Product type: Rotary actuator

Max. operating pressure: 8 bar

Manufacturer part #: 185945

Weight: 159 g

Connection: M3

Size: 10

Min. operating pressure: 2.5 bar

Operating medium: Compressed air

Sealant: TPE-U

Enclosure material: Aluminium

Material: Aluminium

Max. ambient temperature: +60 °C

Min. ambient temperature: 0 °C

UKCA: yes

Variants(All information include VAT, plus shipping costs)

Manufacturer part #

Max. operating pressure

FESTO Rotary actuator 1145086 DSM-T-12-270-P-A-B Enclosure material: Aluminium wrought alloy 1 pc(s)

Item no:2122044

Dispatches on Mon 2 Nov

Conrad Electronic

1145086

10 bar

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 449.00^*

FESTO Rotary actuator 1145087 DSM-T-12-270-P-FW-A-B Enclosure material: Aluminium wrought alloy 1 pc(s)

Item no:2122045

Dispatches on Mon 2 Nov

Conrad Electronic

1145087

10 bar

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 475.00^*

FESTO Rotary actuator 1145088 DSM-T-12-270-CC-A-B Enclosure material: Aluminium wrought alloy 1 pc(s)

Item no:2122046

Dispatches on Mon 2 Nov

Conrad Electronic

1145088

11 bar

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 645.00^*

FESTO Rotary actuator 1145089 DSM-T-12-270-CC-FW-A-B Enclosure material: Aluminium wrought alloy 1 pc(s)

Item no:2122047

Dispatches on Mon 2 Nov

Conrad Electronic

1145089

10 bar

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 669.00^*

FESTO Rotary actuator 1145092 DSM-T-16-270-P-A-B Enclosure material: Aluminium wrought alloy 1 pc(s)

Item no:2122048

Dispatches on Mon 2 Nov

Conrad Electronic

1145092

10 bar

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 469.00^*

FESTO Rotary actuator 1145093 DSM-T-16-270-P-FW-A-B Enclosure material: Aluminium wrought alloy 1 pc(s)

Item no:2122049

Dispatches on Mon 2 Nov

Conrad Electronic

1145093

10 bar

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 495.00^*

FESTO Rotary actuator 1145094 DSM-T-16-270-CC-A-B Enclosure material: Aluminium wrought alloy 1 pc(s)

Item no:2122050

Dispatches on Mon 2 Nov

Conrad Electronic

1145094

10 bar

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 685.00^*

FESTO Rotary actuator 1145095 DSM-T-16-270-CC-FW-A-B Enclosure material: Aluminium wrought alloy 1 pc(s)

Item no:2122051

Dispatches on Mon 2 Nov

Conrad Electronic

1145095

10 bar

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 709.00^*

FESTO Rotary actuator 1145098 DSM-T-25-270-P-A-B Enclosure material: Aluminium wrought alloy 1 pc(s)

Item no:2122052

Dispatches on Mon 2 Nov

Conrad Electronic

1145098

10 bar

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 505.00^*

FESTO Rotary actuator 1145099 DSM-T-25-270-P-FW-A-B Enclosure material: Aluminium wrought alloy 1 pc(s)

Item no:2122053

Dispatches on Mon 2 Nov

Conrad Electronic

1145099

10 bar

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 545.00^*

Documents & Downloads

Datasheet

Datasheet 2116741 FESTO Rotary actuator 185945 DSM-10-240-P-A-FW Enclosure material: Aluminium 1 pc(s)

User & Safety Instructions

User & Safety Instructions 2116741 FESTO Rotary actuator 185945 DSM-10-240-P-A-FW Enclosure material: Aluminium 1 pc(s)

Information

Information 2116741 FESTO Rotary actuator 185945 DSM-10-240-P-A-FW Enclosure material: Aluminium 1 pc(s)

Description

Swivel drive DSM -10-240-P-A-FW with flange shaft, fixed stop, and position detection. Size = 10, attenuation angle = 0.5 deg, swivel angle = 0 - 240 deg, dampening = P: elastic damping rings/plates on both sides, mounting position=any
