Name: FESTO Slimline cylinder 164993 EZH-5/20-25-B Enclosure material: Aluminium Stroke length: 25 mm 1 pc(s)
Brand: FESTO
SKU: 2116103
Availability: BackOrder

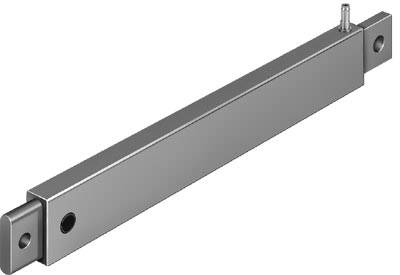

Metallic cuboid with lateral openings, most likely part of a machine component or mounting bracket.

Image similar

Datasheet (PDF)

EAN:

Part number:

Item no:

Sales and shipping:

Conrad ElectronicTerms & Conditions

Total (€ 99.99 / piece)

€ 99.99

incl. VAT

Only available for business customers

14-day return policy included

Report legal concerns

Highlights & Details

Technical specifications

Operating medium: According to ISO 8573-1:2010 compressed air [7:4:4]

Product type: Slimline cylinder

Stroke length: 25 mm

Max. operating pressure: 6 bar

(Ø): 12 mm

Manufacturer part #: 164993

Weight: 108 g

Size: 20

Min. operating pressure: 2.5 bar

Operating medium: Compressed air

Sealant: TPE-U

Enclosure material: Aluminium

Piston diameter: 12 mm

Material: Aluminium

Max. ambient temperature: +60 °C

Min. ambient temperature: 0 °C

Operating principle: Single-acting

UKCA: not relevant

Documents & Downloads

Datasheet

Datasheet 2116103 FESTO Slimline cylinder 164993 EZH-5/20-25-B Enclosure material: Aluminium Stroke length: 25 mm 1 pc(s)

User & Safety Instructions

User & Safety Instructions 2116103 FESTO Slimline cylinder 164993 EZH-5/20-25-B Enclosure material: Aluminium Stroke length: 25 mm 1 pc(s)

Information

Information 2116103 FESTO Slimline cylinder 164993 EZH-5/20-25-B Enclosure material: Aluminium Stroke length: 25 mm 1 pc(s)

Description

Flat Cylinder EZH -5/20-25-B verdrehgesichert. Hub = 25 mm, piston diameter = (* 12 mm,* Equivalent diameter), attenuation = no attenuation, mounting position=any, mode of operation = (* single-acting, * repelling)

This text is machine translated.
