Name: FESTO Vacuum cleaner VAS-75-1/4-SI-B 1382165 G 1/4 Nominal width (details) 4 mm Sealant VMQ (silicone)
Brand: FESTO
SKU: 2204736
Availability: BackOrder

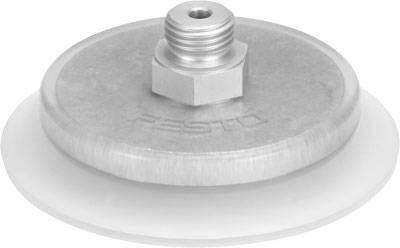

Grey, round suction cup with metal connection, bearing the 'Festo' name. Used for industrial gripping and lifting operations.

Image similar

Sales and shipping:

Conrad ElectronicTerms & Conditions

Total (€ 41.99 / piece)

€ 41.99

incl. VAT

Only available for business customers

14-day return policy included

Report legal concerns

Highlights & Details

Technical specifications

Connection position: Top
Mounting type: Via vacuum connection
Operating pressure: -0.95 ... 0 bar
Operating medium: Atmospheric air in accordance with ISO 8573-1:2010 [7:-:-]
All mounting positions permitted
Color: Transparent
Holding force at rated operating pressure 245 N.
Height compensation suction unit: 3.5 mm
Corrosion resistance class KBK: 2 - moderate corrosion stress
Food suitability: See extended material information
Nominal operating pressure: -0.7 bar
Nominal diameter 4 mm
Product weight: 62 g
Suction unit diameter 75 mm
Suction cup shape: Round flat
Suction unit volume: 18.3 cm3
Shore hardness 60 +/- 5
Ambient temperature: -40 ... 200 °C
Vacuum connection: g1/4
Screw-in screw-in material: Aluminum wrought alloy
Material suction unit: VMQ (silicone)
Material note: Substances containing labs contain
Complies with RoHS

Operating medium: Atmospheric air

Type: 1382165

Product type: Vacuum cleaner

Connection: G 1/4

Max. operating pressure: -0.95 bar

Operating temperature: -40 °C (min)

Min. operating temperature: -40 °C

Type: Corrosion resistance class KBK: 2 - moderate corrosion stress

Manufacturer part #: 1382165

Operating pressure (min.): -0.95 bar

Sealant: VMQ (silicone)

Weight: 62 g

Medium: Natural air

Nominal width: 4 mm

Max. ambient temperature: +200 °C

Min. ambient temperature: -40 °C

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2204736 FESTO Vacuum cleaner VAS-75-1/4-SI-B 1382165 G 1/4 Nominal width (details) 4 mm Sealant VMQ (silicone)

Hints

The kv factor indicates the volume flow through a valve, measured in litres/min at 1 bar and at a water temperature between 5 and 30°C. The QNn factor indicates the gas volume flow, measured in litres/min
