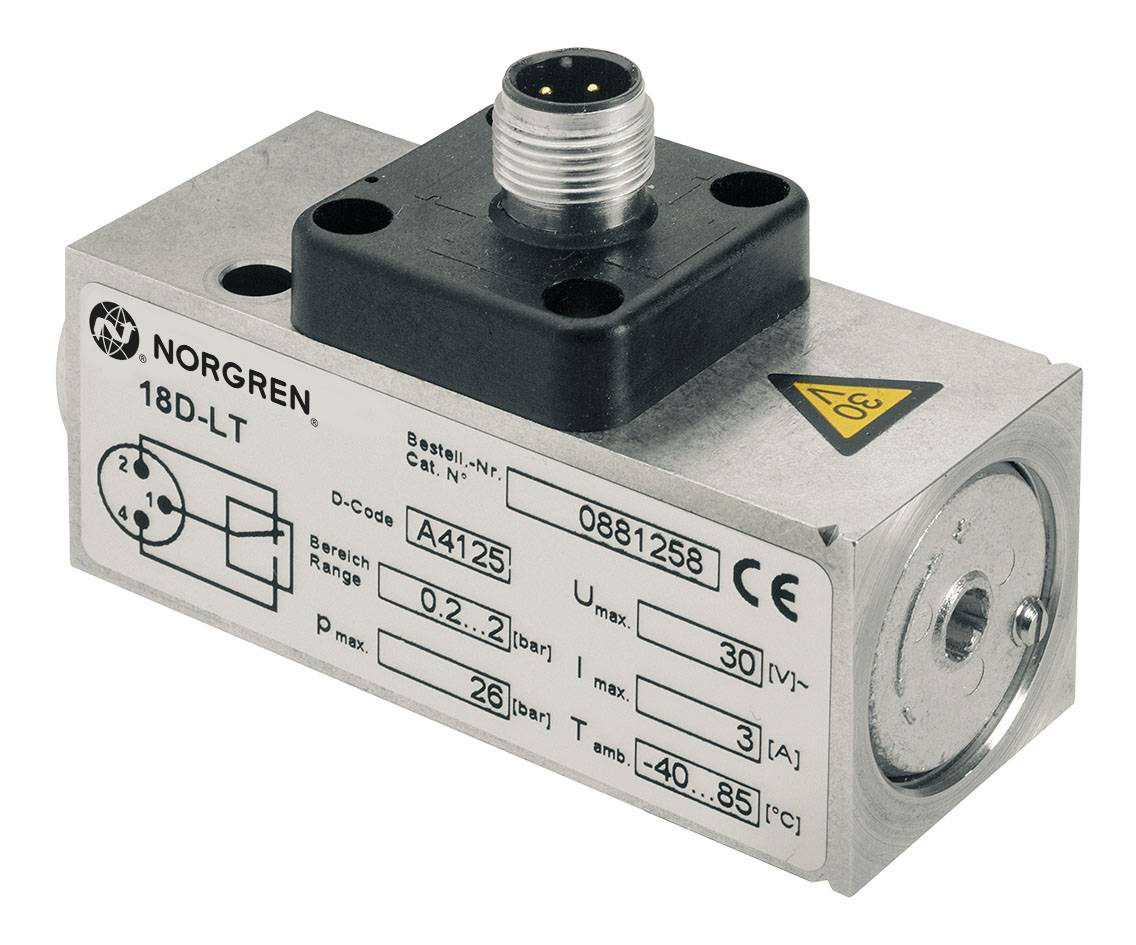

IMI NORGREN Vacuum switch unit 0880110000000000 Enclosure material Aluminium
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 151.25 / piece)
€ 151.25
plus VAT.
Technical specifications
- Product type
Vacuum switch unit
- Enclosure material
Aluminium
- Operating temperature
-10 °C (min)
- Min. operating temperature
-10 °C
- Manufacturer part #
0880110000000000
- Height
87.5 mm
- Length
30 mm
IP65
- Control pressure (max.)
1 bar
- Control pressure (min.)
-1 bar
- Max. ambient temperature
+80 °C
- Min. ambient temperature
-10 °C
- Width
30 mm
Documents & Downloads
Datasheet
Datasheet 3296429 IMI NORGREN Vacuum switch unit 0880110000000000 Enclosure material Aluminium
User & Safety Instructions
User & Safety Instructions 3296429 IMI NORGREN Vacuum switch unit 0880110000000000 Enclosure material Aluminium
Description
Hints
The kv factor indicates the volume flow through a valve, measured in litres/min at 1 bar and at a water temperature between 5 and 30°C. The QNn factor indicates the gas volume flow, measured in litres/min
