Name: FESTO Vacuum cleaner VASB-40-1/4-PUR-B 1395691 G 1/4 Nominal width (details) 4 mm Enclosure material Polyurethane
Brand: FESTO
SKU: 2204745
Availability: BackOrder

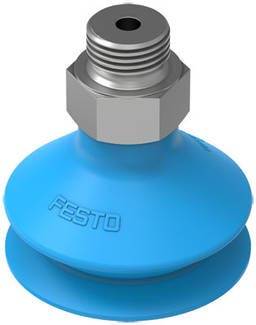

Blue pneumatic suction pad with 'Festo' lettering on the surface. A metal thread at the top for mounting on machines.

Image similar

Sales and shipping:

Conrad ElectronicTerms & Conditions

Total (€ 21.99 / piece)

€ 21.99

incl. VAT

Only available for business customers

14-day return policy included

Report legal concerns

Highlights & Details

Technical specifications

Connection position: Top
Mounting type: Via vacuum connection
Operating pressure: -0.95 ... 0 bar
Operating medium: Atmospheric air in accordance with ISO 8573-1:2010 [7:-:-]
All mounting positions permitted
Colour : blue
Holding force at rated operating pressure 60 N.
Height compensation suction unit: 13.7 mm
Corrosion resistance class KBK: 2 - moderate corrosion stress
Nominal operating pressure: -0.7 bar
Nominal diameter 4 mm
Product weight: 30 g
Suction unit diameter 40 mm
Suction cup: Round bellows 1.5-fold
Suction unit volume: 11.11 cm3
Shore hardness 60 +/- 5
Ambient temperature: -20 ... 60 °C
Vacuum connection: g1/4
Screw-in screw-in material: Die-cast zinc
Material suction unit: Pure
Material note: RoHS compliant
Effective suction diameter: 34.4 mm

Operating medium: Atmospheric air

Type: 1395691

Product type: Vacuum cleaner

Enclosure material: Polyurethane

Connection: G 1/4

Max. operating pressure: -0.95 bar

Operating temperature: -20 °C (min)

Min. operating temperature: -20 °C

Type: Corrosion resistance class KBK: 2 - moderate corrosion stress

Manufacturer part #: 1395691

Operating pressure (min.): -0.95 bar

Weight: 30 g

Medium: Natural air

Nominal width: 4 mm

Max. ambient temperature: +60 °C

Min. ambient temperature: -20 °C

UKCA: not relevant

Variants(All information include VAT, plus shipping costs)

Connection

Max. operating pressure

Enclosure material

Type

FESTO Vacuum cleaner VASB-40-1/4-PUR-B 1395691 G 1/4 Nominal width (details) 4 mm Enclosure material Polyurethane

Item no:2204745

Dispatches on Fri 23 Oct

Conrad Electronic

This article

G 1/4

-0.95 bar

Polyurethane

1395691

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 21.99^*

FESTO Vacuum cleaner VASB-100-1/4-NBR 35416 G 1/4 Nominal width (details) 4 mm Enclosure material Zinc (die-cast) Sealant Nitrile butadiene rubber

Item no:2203630

Dispatches on Fri 23 Oct

Conrad Electronic

G 1/4

Zinc (die-cast)

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 55.99^*

FESTO Vacuum cleaner VASB-100-1/4-PUR-B 1396066 G 1/4 Nominal width (details) 4 mm Sealant PUR

Item no:2204748

Dispatches on Fri 23 Oct

Conrad Electronic

G 1/4

-0.95 bar

1396066

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 42.99^*

FESTO Vacuum cleaner VASB-100-1/4-SI-B 1382277 G 1/4 Nominal width (details) 4 mm Enclosure material Aluminium wrought alloy Sealant VMQ (silicone)

Item no:2204737

Dispatches on Fri 23 Oct

Conrad Electronic

G 1/4

-0.95 bar

Aluminium wrought alloy

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 77.99^*

FESTO Vacuum cleaner VASB-125-3/8-NBR 152609 G 3/8 Nominal width (details) 7 mm Enclosure material Zinc (die-cast) Sealant NBR

Item no:2203651

Dispatches on Fri 23 Oct

Conrad Electronic

G 3/8

Zinc (die-cast)

152609

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 85.99^*

FESTO Vacuum cleaner VASB-125-3/8-PUR-B 1396067 G 3/8 Nominal width (details) 7 mm Sealant PUR

Item no:2204749

Dispatches on Fri 23 Oct

Conrad Electronic

G 3/8

-0.95 bar

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 67.99^*

FESTO Vacuum cleaner VASB-125-3/8-SI-B 1387375 G 3/8 Nominal width (details) 7 mm Sealant VMQ (silicone)

Item no:2204740

Dispatches on Fri 23 Oct

Conrad Electronic

G 3/8

-0.95 bar

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 104.99^*

FESTO Vacuum cleaner VASB-15-1/8-NBR 35411 Nominal width (details) 3 mm Enclosure material Brass Sealant NBR

Item no:2203625

Dispatches on Fri 23 Oct

Conrad Electronic

Brass

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 15.99^*

FESTO Vacuum cleaner VASB-15-1/8-PUR-B 1395671 G 1/8 Nominal width (details) 3 mm Enclosure material PUR Sealant PUR

Item no:2204743

Dispatches on Fri 23 Oct

Conrad Electronic

G 1/8

-0.95 bar

PUR

1395671

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 12.99^*

FESTO Vacuum cleaner VASB-15-1/8-SI-B 1377689 G 1/8 Nominal width (details) 3 mm Enclosure material Aluminium wrought alloy Sealant VMQ (silicone)

Item no:2204730

Dispatches on Fri 23 Oct

Conrad Electronic

G 1/8

-0.95 bar

Aluminium wrought alloy

1377689

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 19.99^*

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2204745 FESTO Vacuum cleaner VASB-40-1/4-PUR-B 1395691 G 1/4 Nominal width (details) 4 mm Enclosure material Polyurethane

Hints

The kv factor indicates the volume flow through a valve, measured in litres/min at 1 bar and at a water temperature between 5 and 30°C. The QNn factor indicates the gas volume flow, measured in litres/min
