Name: FESTO Vacuum nozzle OVEL-5-H-10-PQ-VQ4-UA-C-A-B2PNLK-H3 8069570 24 V DC 4 mm Nominal width (details) 0.45 mm Enclosure m
Brand: FESTO
SKU: 2800191
Availability: BackOrder

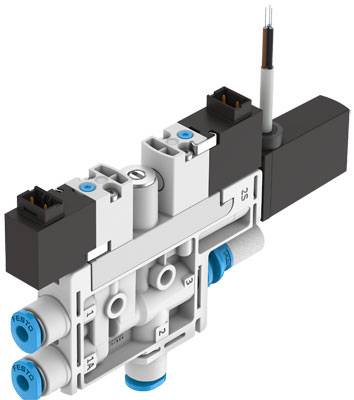

Air release valve for pneumatic systems with two blue connection caps. Cable connection visible on the upper right side.

Image similar

Datasheet (PDF)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Total (€ 295.00 / piece)

€ 295.00

incl. VAT

Only available for business customers

14-day return policy included

Report legal concerns

Technical specifications

Type: 8069570

Product type: Vacuum nozzle

Operating voltage: 24 V DC

Enclosure material: PA

Connection: 4 mm

Max. operating pressure: 7 bar

Operating temperature: 0 °C (min)

Min. operating temperature: 0 °C

Current consumption: 1 W

Manufacturer part #: 8069570

Operating pressure (min.): 2 bar

Sealant: NBR

Function: closed

Weight: 74 g

Media temperature (range): 0 up to 50 °C

Max. media temperature: 50 °C

Media temperature (min.): 0 °C

Medium: Compressed air

Nominal width: 0.45 mm

Features: Electrically actuated

Component function: Switchable

: IP40

Max. ambient temperature: +50 °C

Min. ambient temperature: 0 °C

Cable length: 2.5 m

Contact type: 1 breaker
1 maker

UKCA: yes
