Name: FESTO Vacuum nozzle OVEM-20-H-B-PO-CE N-2P 8023702 27.6 V DC G 1/4, Muffler Nominal width (details) 2 mm Enclosure mater
Brand: FESTO
SKU: 2204833
Availability: BackOrder

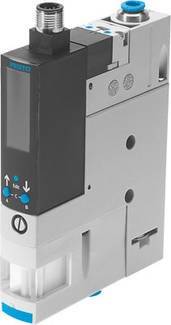

An electrical valve module with multiple ports and control elements for precise regulation of air or gas flows in industrial applications.

Image similar

Sales and shipping:

Conrad ElectronicTerms & Conditions

Total (€ 1,079.00 / piece)

€ 1,079.00

incl. VAT

Only available for business customers

14-day return policy included

Report legal concerns

Highlights & Details

Technical specifications

Display type: 4-digit alphanumeric
Backlit LCD
Display range [bar]: -0.999 ... 0 bar
Type of silencer: Open
Mounting type: With through hole
With internal thread
With accessories
Ventilation time at nominal operating pressure: 0.2 s.
Operating pressure: 2 ... 8 bar
Operating pressure for max. vacuum: 5.3 bar
Operating medium: Compressed air according to ISO 8573-1:2010 [7:4:4]
Operating voltage range DC: 20.4 ... 27.6 V
CE mark (see declaration of conformity): According to EU EMC directive
Representable unit(s): Bar
Pressure measuring range: -1 ... 0 bar
All mounting positions permitted
Duty cycle: 1
Adjustment range hysteresis [bar]: -0.9 ... 0 bar
Setting range threshold values: -0.999 ... 0 bar
Setting options: Via display and buttons
Ejector characteristic: High vacuum
Standard
Electrical connection: Connector
M12x1
5-pin
Filter size: 40 µm
Accuracy FS: 3 %FS
Manual override: Momentary
Additionally via control keys
Note on operating and control medium: Oiled operation not possible
Inductive protective circuit: Adapted to MZ, MY, ME coils
Integrated function: Discharge pulse valve electrical
Choke
Power-on valve
Filters
Electric air saving function
Check valve
Muffler open
Vacuum switch
Insulation voltage 50 V.
KC-MARK: KC-EMC
Design: Modular
Corrosion resistance class KBK: 2 - moderate corrosion stress
Short-circuit resistance: Yes
Load current: 70 mA
Max. Tightening torque: 0.8 Nm with internal thread
2.5 Nm with through hole
Max. output current 100 mA
Max. Suction flow against atmosphere: 86.5 l/min.
Max. Vacuum: 0.93
Medium temperature: 0 ... 50 °C
Measured variable: Relative pressure
Measuring principle: Piezoresistive
Nominal operating pressure 6 bar
Nominal diameter Laval nozzle: 2 mm
Pneumatic connection 1: g1/4
Pneumatic connection 3: Integrated silencer
Product weight: 15 g
Pitch: 20 mm
Relative humidity: 5 - 85 %
Residual current 0.1 mA
Sound pressure level at rated operating pressure 74 dB(A)
Switching output: 2xPNP
Switching input according to standard: IEC 61131-2
Switching element function: NC contact
Closer
Switching function: Window comparator
Threshold comparator
Switching logic inputs: PNP (positive switching)
Switch position indicator: LCD
Switching status display: Optical
IP65 rating
Protection class III
Voltage drop< = 1.5 V.
Coil ratings: 24 V DC: Low current phase 0.3 W, high current phase 2.55 W.
Surge voltage resistance: 0.8 kV
Overload resistance: Available
Ambient temperature: 0 ... 50 °C
Vacuum connection: QS-8
Valve function: Closed
Reverse polarity protection: For all electrical connections
Pollution level 3
Material seals: NBR
Material: POM
Material filter: Fabric
PA
Sintered steel
Material filter housing: PA-reinforced
Housing material: Die-cast aluminum
PA-reinforced
Material hollow screw: Aluminum wrought alloy
Material regulating screw: Steel
Material Muffler: Aluminum wrought alloy
PU foam
Material screws: Steel
Material viewing window: PA
Connector housing material: Nickel-plated brass
Material plug contacts: Brass, gold-plated
Material pins: Steel
Material jet nozzle: Aluminum wrought alloy
Keypad material TPE-U
Screw connection material: Brass, nickel-plated
Angle material: Stainless steel
Material note: Substances containing labs contain
Complies with RoHS
Repeatability switching value FS: 0.6 %
Approval: RCM Mark
C UL us - Listed (OL)

Operating medium: Compressed Air

Product type: Vacuum nozzle

Operating voltage: 27.6 V DC

Enclosure material: Aluminium (die-cast)
PA

Connection: G 1/4
Muffler

Max. operating pressure: 8 bar

Operating temperature: 0 °C (min)

Min. operating temperature: 0 °C

Current consumption: 2.55 W

Type: Corrosion resistance class KBK: 2 - moderate corrosion stress

Manufacturer part #: 8023702

Operating pressure (min.): 2 bar

Max. operating voltage: 27.6 V DC

Min. operating voltage: 20.4 V DC

Sealant: NBR

Function: closed

Weight: 415 g

Media temperature (range): 0 up to 50 °C

Max. media temperature: 50 °C

Media temperature (min.): 0 °C

Medium: Compressed air

Nominal width: 2 mm

Features: P port connector (G1/4)

Component function: Breaker

: IP65

Max. ambient temperature: +50 °C

Min. ambient temperature: 0 °C

Operating principle: OFF/NC

UKCA: yes
